134G7426
Part Number: 134G7426
Product Information
Extended Description

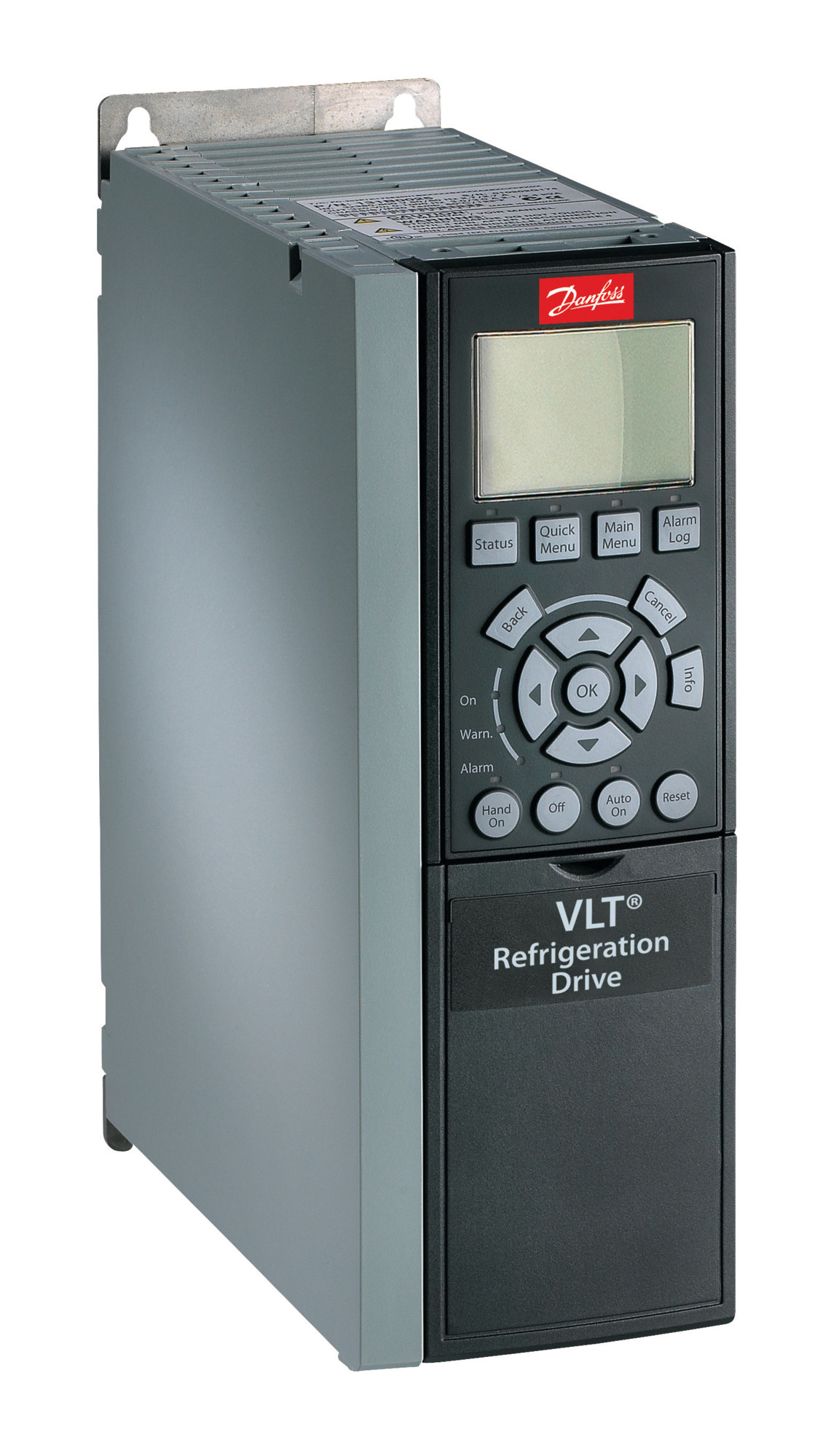

134G7426 Danfoss: Frequency converterFC-103P3K0T4E20H2XGCXXXSXXXXAZBXCXXXXDXVLT=C2=AE Refrigeration Drive FC-1033.0 KW / 4.0 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI filter Class A2No brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.AK-LonWorks MCA 107, No B OptionNo C1 option, No D optionFrame: A2Other options according to Model code
Gross weight
5.2 kg
Net weight
4.9 kg
Volume
0 l
EAN
5710107622993
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Refrigeration Drive
Series
103 : 103
Power Rating
P3K0 : 3.0 KW / 4.0 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI filter Class A2
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AZ : AK-LonWorks MCA 107
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
A2 : A2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-103P3K0T4E20H2XGC
Typecode Part 2
XXXSXXXXAZBXCXXXXDX
Power 110% (NO) [KW]
3
Height [mm]
268,0
Width w/ no C options [mm]
90,0
Width w/ two C options [mm]
150,0
Depth [mm]
205,0
Depth with Option A/B [mm]
220,0
kVA
4.99
Power Loss NO [W]
116
Continuous Current (NO) [A]
7.2
Intermittent Current (NO) [A]
7.92
Calculated Gross Weight [kg]
5.1
Calculated Net Weight [kg]
4.8
ECCN EU
X.A.I.003
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-103P3K0T4E20H2XGC
Modelcode02
XXXSXXXXAZBXCXXXXDX
130B9980
Cable assy f. motor cable, C2
130B9001
multiple 2 pole power combicon, 24V plug
130B1269
VLT=C2=AE AK-LonWorks MCA 107, coated
130B1012
Terminal cover frame A1-A3 with option
130B1008
Frame for LCP Control Pad with option
130B1022
fc-300 spare part/acc.bag a2 +a3 encl.
130B0295
sparepart/terminals accessory bag
130B1069
Multiple relay 1 plug
130B1068
Multiple relay 2 plug
130B1067
Multiple non-twistd mains plug
130B7531
Mounting Kit f. C Option, 60mm, A2/A3
130B7530
Mounting Kit f. C Option, 40mm, A2/A3
130B7389
NEMA 1 Conversion Kit, Top, 10 pcs, A2
130B5645
Leakage Current Monitor Kit, A2, A3
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1170
LCP Panel Mounting Kit
130B1212
VLT=C2=AE General Purpose I/O MCB 101, ctd
130B1210
VLT=C2=AE Relay Option MCB 105, coated
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B0185
Adapter Plate, 395x220mm
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1024
DrivePro ExWarr Onsite PG03 48 Months
