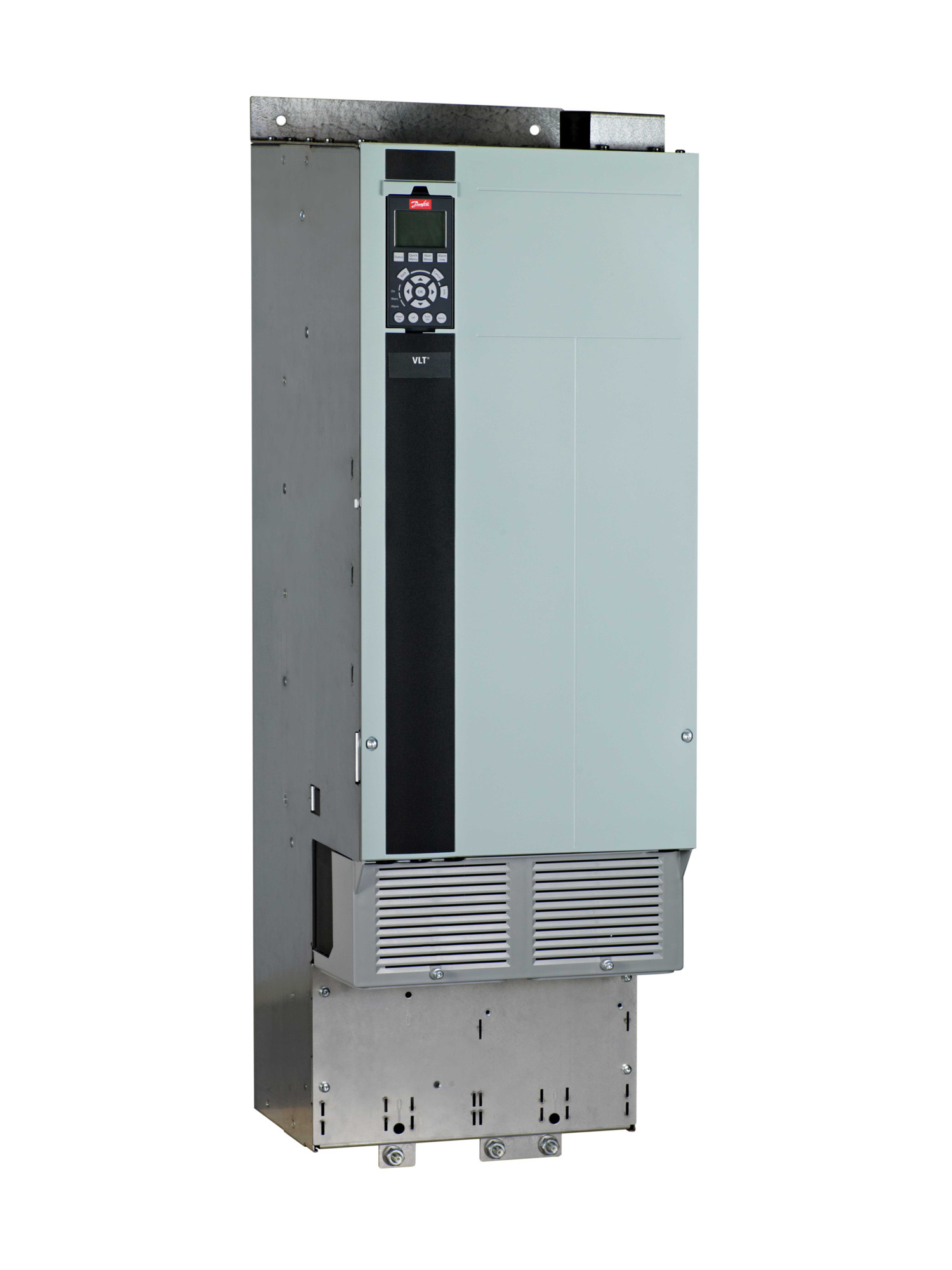

134H1346
Part Number: 134H1346
Product Information
Extended Description
134H1346 Danfoss: Frequency converterFC-103N315T4E20H2XGCXXXSXXXXAXBXCXXXXDXVLT=C2=AE Refrigeration Drive FC-103(N315) 315 KW / 450 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI filter Class A2No brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.No A Option, No B OptionNo C1 option, No D optionFrame: D4HOther options according to Model code
Gross weight
137 kg
Net weight
122 kg
Volume
0 l
EAN
5710107663545
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Refrigeration Drive
Series
103 : 103
Power Rating
N315 : (N315) 315 KW / 450 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI filter Class A2
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D4H : D4H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-103N315T4E20H2XGC
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
Power 110% (NO) [KW]
315
Height w/ Regen/Loadshare [mm]
1268,0
Height [mm]
1122,0
Width w/ no C options [mm]
350,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
407
Power Loss NO [W]
6663
Continuous Current (NO) [A]
588
Intermittent Current (NO) [A]
647
Calculated Gross Weight [kg]
125.3
Calculated Net Weight [kg]
125
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
E401
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-103N315T4E20H2XGC
Modelcode02
XXXSXXXXAXBXCXXXXDX
176F3527
kit,cooling,in bottom out back,d2h d4h
176F3628
Cooling Kit, in btm/out top, 1800mm D4h
176F3626
Cooling Kit, in back/out back, D4h
176F3634
Cooling Kit, in back/out back, D4h
176F3630
Cooling Kit, in btm/out top, 2000mm, D4h
176F3410
Adapter Plate, D2h/D4h
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
130R1056
DrivePro ExWarr Onsite PG06 60 Months
