134H8754
Part Number: 134H8754
Product Information
Extended Description

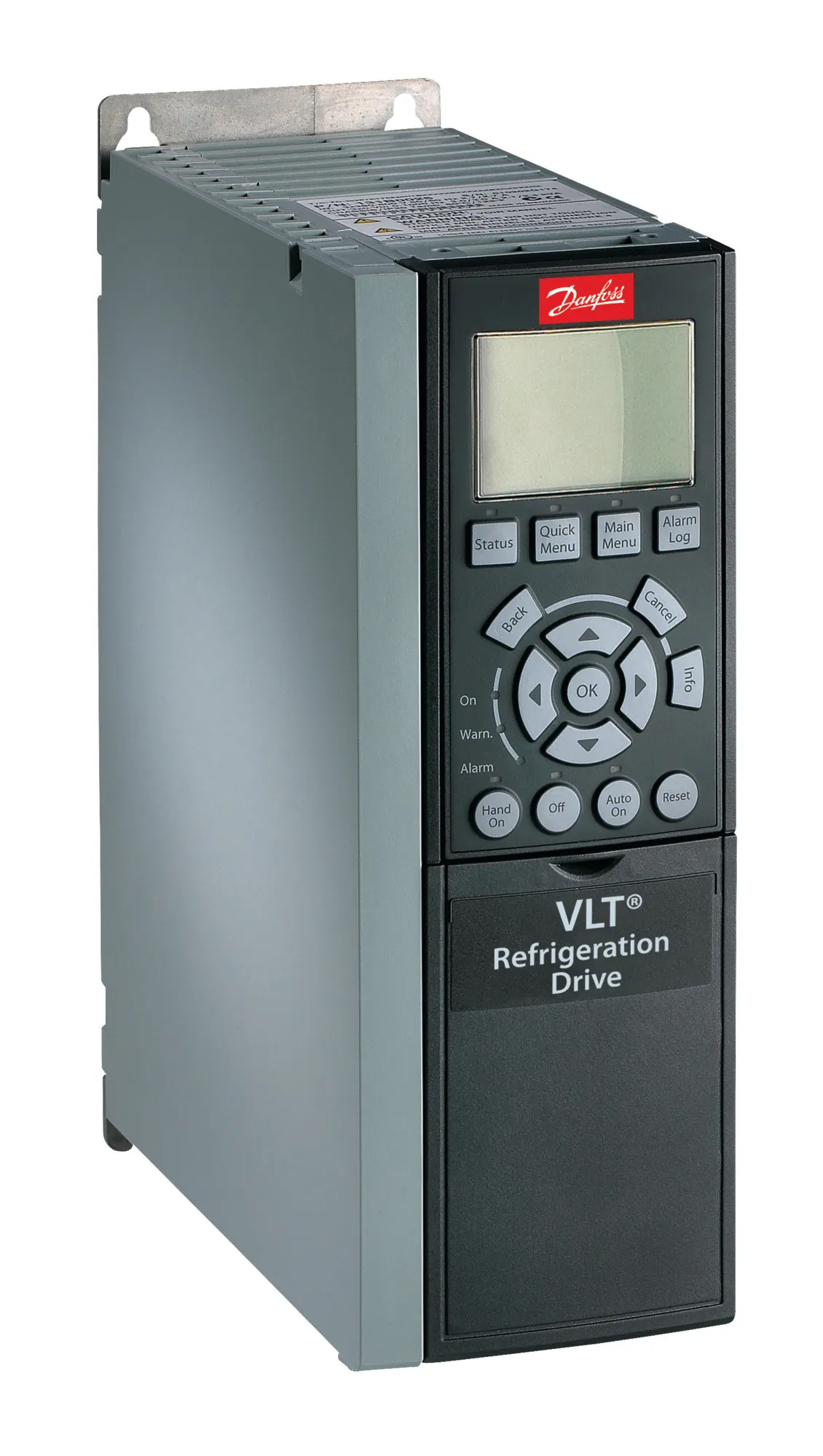

134H8754 Danfoss: Frequency converterFC-103P1K5T4Y55H2XGX1XXSXXXXAXBXCXXXXDXVLT=C2=AE Refrigeration Drive FC-1031.5 KW / 2.0 HP, Three phase380 - 480 VAC, IP55/TYPE 12 w. backplatRFI filter Class A2No brake chopperGraphical Loc. Cont. PanelNot coated PCB, Mains DisconnectLatest release std. SW.No A Option, No B OptionNo C1 option, No D optionFrame: A4Other options according to Model code
Gross weight
10.3 kg
Net weight
10 kg
Volume
0 l
EAN
5710107738861
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Refrigeration Drive
Series
103 : 103
Power Rating
P1K5 : 1.5 KW / 2.0 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
Y55 : IP55/TYPE 12 w. backplat
RFI Filter
H2 : RFI filter Class A2
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
1 : Mains Disconnect
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
A4 : A4
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-103P1K5T4Y55H2XGX
Typecode Part 2
1XXSXXXXAXBXCXXXXDX
Power 110% (NO) [KW]
1.5
Height [mm]
390,0
Width w/ no C options [mm]
200,0
Depth [mm]
175,0
Depth with Option A/B [mm]
175,0
kVA
2.84
Power Loss NO [W]
62
Continuous Current (NO) [A]
4.1
Intermittent Current (NO) [A]
4.51
Calculated Gross Weight [kg]
9.7
Calculated Net Weight [kg]
9.4
ECCN EU
X.A.I.003
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-103P1K5T4Y55H2XGX
Modelcode02
1XXSXXXXAXBXCXXXXDX
130B4598
Weather shield f. outdoor instl A4 to B2
130B3150
Back plate for enclosure A4
130B5612
Side Fixture Kit, 1.5 module , A4
130B5611
Side Fixture Kit, 1.0 module , A4
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1385
VLT=C2=AE Profibus DP V1 MCA101, unctd 5pcs
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1125
VLT=C2=AE General Purpose I/O MCB 101,unctd
130B1117
LCP Mounting Kit, w/ no LCP
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1024
DrivePro ExWarr Onsite PG03 48 Months
