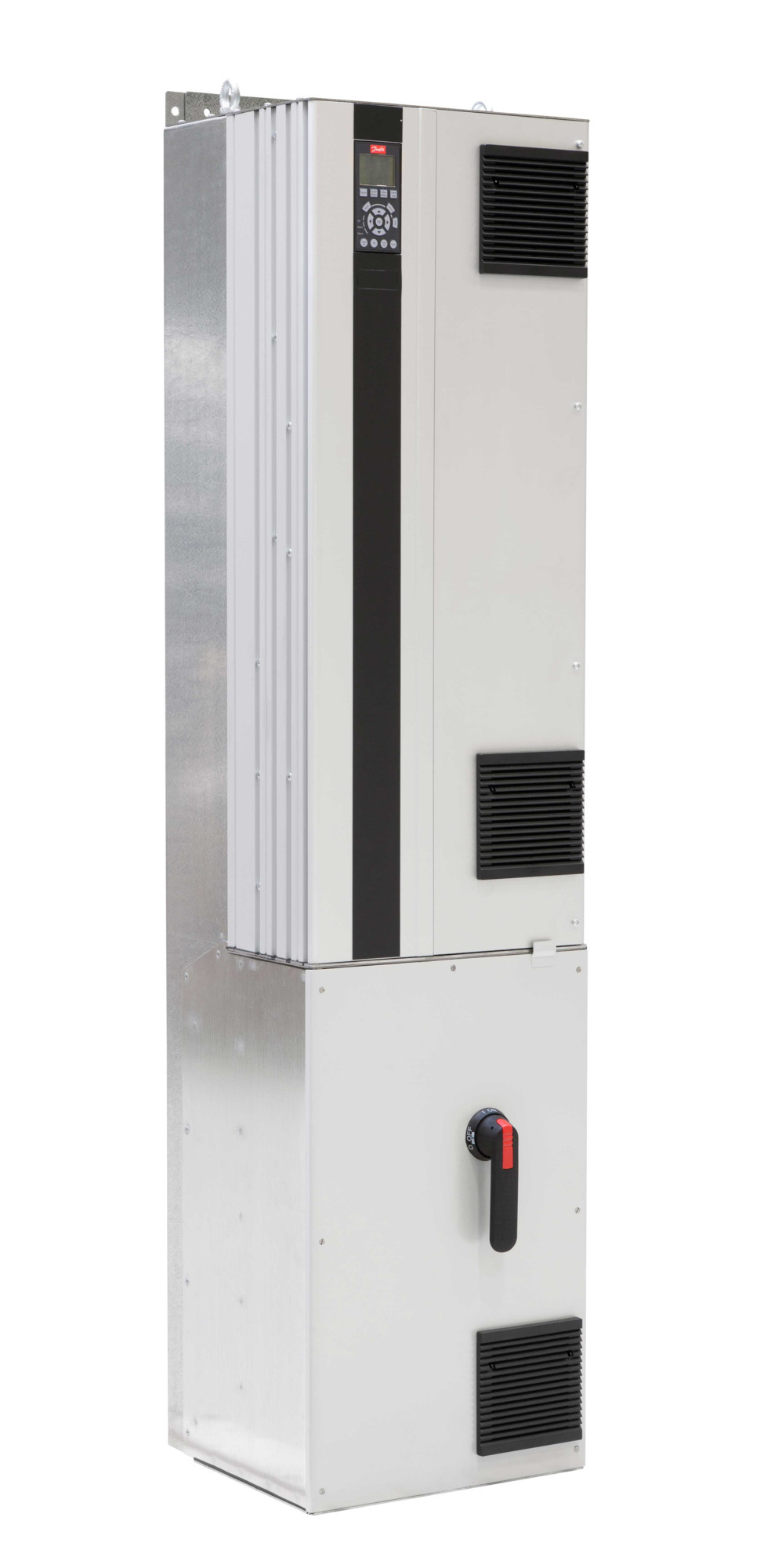

134L9330
Part Number: 134L9330
Product Information
Extended Description
134L9330 Danfoss: Frequency converterFC-103N160T4E54H2XGC3XXSXXXXAXBXCXXXXDXVLT=C2=AE Refrigeration Drive FC-103(N160) 160 KW / 250 HP, Three phase380 - 480 VAC, (E54) IP54 / Type 12RFI filter Class A2No brake chopperGraphical Loc. Cont. PanelCoated PCB, Mains Disconnect + FuseLatest release std. SW.No A Option, No B OptionNo C1 option, No D optionFrame: D5HOther options according to Model code
Gross weight
143 kg
Net weight
103 kg
Volume
0 l
EAN
5710107845514
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Refrigeration Drive
Series
103 : 103
Power Rating
N160 : (N160) 160 KW / 250 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E54 : (E54) IP54 / Type 12
RFI Filter
H2 : RFI filter Class A2
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
3 : Mains Disconnect + Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D5H : D5H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-103N160T4E54H2XGC
Typecode Part 2
3XXSXXXXAXBXCXXXXDX
Power 110% (NO) [KW]
160
Height [mm]
1324,0
Width w/ no C options [mm]
325,0
Depth [mm]
381,0
Depth with Option A/B [mm]
381,0
kVA
218
Power Loss NO [W]
3764
Continuous Current (NO) [A]
315
Intermittent Current (NO) [A]
346
Calculated Gross Weight [kg]
166.3
Calculated Net Weight [kg]
166
ECCN EU
X.A.I.003
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-103N160T4E54H2XGC
Modelcode02
3XXSXXXXAXBXCXXXXDX
176F6341
VLT=C2=AE Mains Shield Kit D5H Framesize
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130B1212
VLT=C2=AE General Purpose I/O MCB 101, ctd
130B1210
VLT=C2=AE Relay Option MCB 105, coated
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1200
VLT=C2=AE Profibus DP V1 MCA 101, coated
130B1386
VLT=C2=AE Profibus DP V1 MCA 101, ctd, 5pcs
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
130R1056
DrivePro ExWarr Onsite PG06 60 Months
