134N5654
Part Number: 134N5654
Product Information
Extended Description

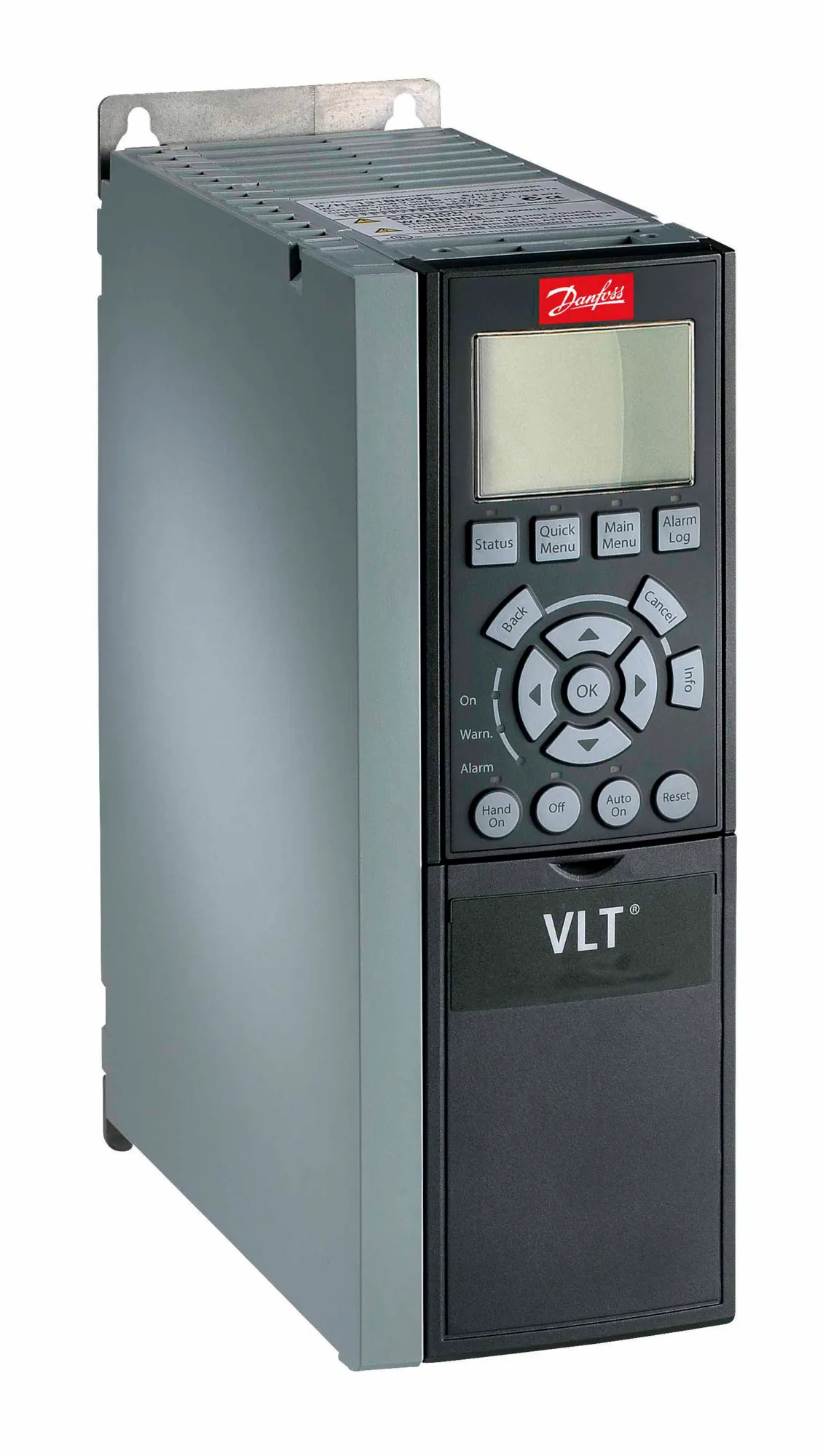

134N5654 Danfoss: Frequency converterFC-103P2K2T4E20H1TGXXXXSXXXXA0BXCXXXXD0VLT=C2=AE Refrigeration Drive FC-1032.2 KW / 3.0 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI filter Class A1 / BSafe StopGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.PROFIBUS DP MCA 101, No B OptionNo C1 option, 24V DC backupFrame: A2Other options according to Model code
Gross weight
5.2 kg
Net weight
4 kg
Volume
0 l
EAN
5710107909179
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Refrigeration Drive
Series
103 : 103
Power Rating
P2K2 : 2.2 KW / 3.0 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H1 : RFI filter Class A1 / B
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
A0 : PROFIBUS DP MCA 101
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : 24V DC backup
Frame Size
A2 : A2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-103P2K2T4E20H1TGX
Typecode Part 2
XXXSXXXXA0BXCXXXXD0
Power 110% (NO) [KW]
2.2
Height [mm]
268,0
Width w/ no C options [mm]
90,0
Width w/ two C options [mm]
150,0
Depth [mm]
205,0
Depth with Option A/B [mm]
220,0
kVA
3.88
Power Loss NO [W]
88
Continuous Current (NO) [A]
5.6
Intermittent Current (NO) [A]
6.16
Calculated Gross Weight [kg]
5.1
Calculated Net Weight [kg]
4.8
ECCN EU
X.A.I.003
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-103P2K2T4E20H1TGX
Modelcode02
XXXSXXXXA0BXCXXXXD0
130B9980
Cable assy f. motor cable, C2
130B9001
multiple 2 pole power combicon, 24V plug
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1200
VLT=C2=AE Profibus DP V1 MCA 101, coated
130B1012
Terminal cover frame A1-A3 with option
130B1008
Frame for LCP Control Pad with option
130B1022
fc-300 spare part/acc.bag a2 +a3 encl.
130B0295
sparepart/terminals accessory bag
130B1069
Multiple relay 1 plug
130B1068
Multiple relay 2 plug
130B7531
Mounting Kit f. C Option, 60mm, A2/A3
130B7530
Mounting Kit f. C Option, 40mm, A2/A3
130B7389
NEMA 1 Conversion Kit, Top, 10 pcs, A2
130B5645
Leakage Current Monitor Kit, A2, A3
130B1170
LCP Panel Mounting Kit
130B0185
Adapter Plate, 395x220mm
130B0184
Adapter Plate, 395x130mm
130B0183
Adapter Plate, 395x90mm
130B0056
Adapter Plate, 338x279mm
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1024
DrivePro ExWarr Onsite PG03 48 Months
