134N6979
Part Number: 134N6979
Product Information
Extended Description

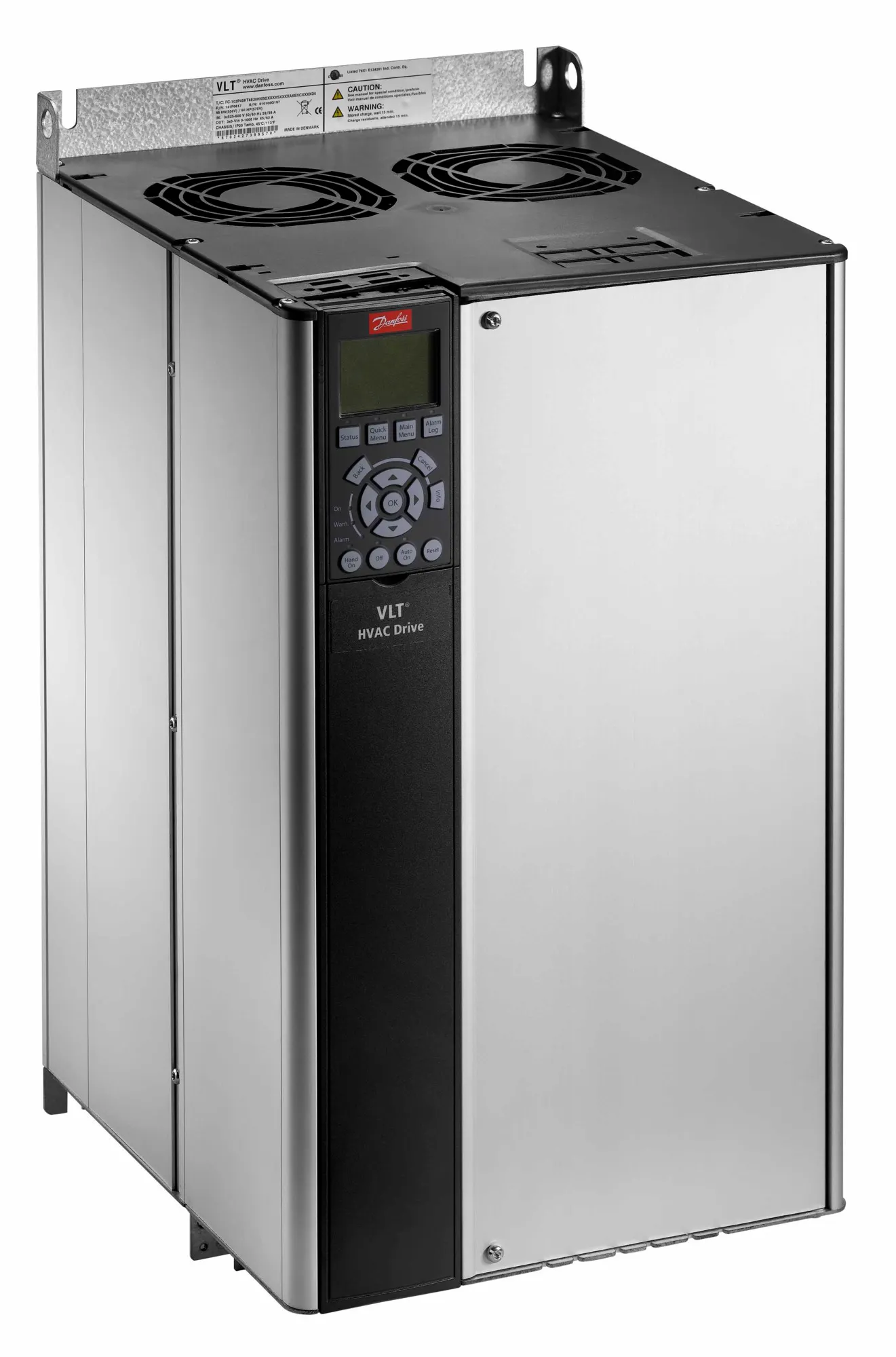

134N6979 Danfoss: Frequency ConverterFC-102P55KT4P20H2TGXXXXSXXXXALBXCXXXXD0VLT=C2=AE HVAC Drive FC-102(P55K) 55 KW / 75 HP, Three phase380 - 480 VAC, IP20 / Chassis BackplateRFI FilterSafe StopGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: C3No C1 option, MCB-107 24V DC backupPROFINET MCA 120, No B OptionOther options according to Model Code
Gross weight
35.5 kg
Net weight
35.2 kg
Volume
228.095 l
EAN
5710107922680
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P55K : (P55K) 55 KW / 75 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
P20 : IP20 / Chassis Backplate
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
C3 : C3
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P55KT4P20H2TGX
Typecode Part 2
XXXSXXXXALBXCXXXXD0
Power 110% (NO) [KW]
55
Height [mm]
550,0
Width w/ no C options [mm]
308,0
Depth [mm]
333,0
Depth with Option A/B [mm]
333,0
kVA
73.4
Power Loss NO [W]
1083
Continuous Current (NO) [A]
106
Intermittent Current (NO) [A]
117
Calculated Gross Weight [kg]
37.3
Calculated Net Weight [kg]
37
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P55KT4P20H2TGX
Modelcode02
XXXSXXXXALBXCXXXXD0
