134N7566
Part Number: 134N7566
Product Information
Extended Description

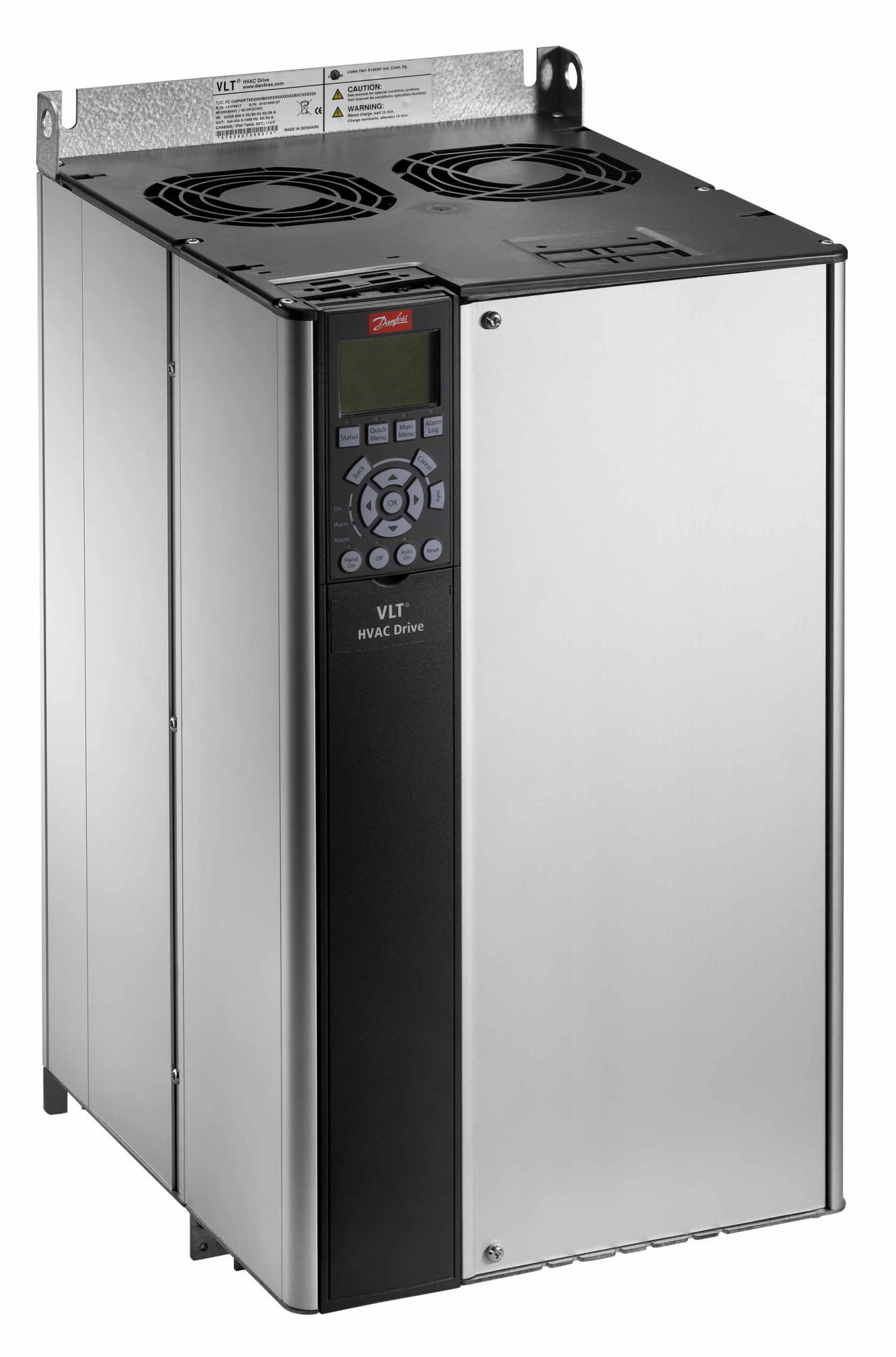

134N7566 Danfoss: Frequency converterFC-202P55KT4E20H2TGXXXXSXXXXAXBKCXXXXDXVLT=C2=AE AQUA Drive FC-202(P55K) 55 KW / 75 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI FilterSafe StopGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: C3No C1 option, No D optionNo A Option, MCB-101 General purp. I/OOther options according to Model code
Gross weight
34.51 kg
Net weight
33.16 kg
Volume
228.095 l
EAN
5710107928583
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AQUA Drive FC-
Series
202 : 202
Power Rating
P55K : (P55K) 55 KW / 75 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BK : MCB-101 General purp. I/O
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C3 : C3
Typecode Part 1
FC-202P55KT4E20H2TGX
Typecode Part 2
XXXSXXXXAXBKCXXXXDX
Product Catalog
GLBL : Global (Standard)
Power 150% (HO) [KW]
45
Power 110% (NO) [KW]
55
Height [mm]
550,0
Width w/ no C options [mm]
308,0
Depth [mm]
333,0
Depth with Option A/B [mm]
333,0
kVA
73.4
Power Loss NO [W]
1083
Power Loss HO [W]
891
Continuous Current (NO) [A]
106
Intermittent Current (NO) [A]
117
Continuous Current (HO) [A]
90
Intermittent Current (HO) [A]
135
Calculated Gross Weight [kg]
34.51
Calculated Net Weight [kg]
33.16
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-202P55KT4E20H2TGX
Modelcode02
XXXSXXXXAXBKCXXXXDX
Recommended Plant
ERR01
130B4170
Back plate IP20/Chassis, C3
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B6226
Leakage Current Monitor Kit, C3
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1254
VLT=C2=AE Adv. Cascade Contr. MCO 102, ctd
130B1192
IP21 conversion kit, top, C3
130B1191
IP 21/Type 1 conversion kit, C3
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
