134N8575
Part Number: 134N8575
Product Information
Extended Description

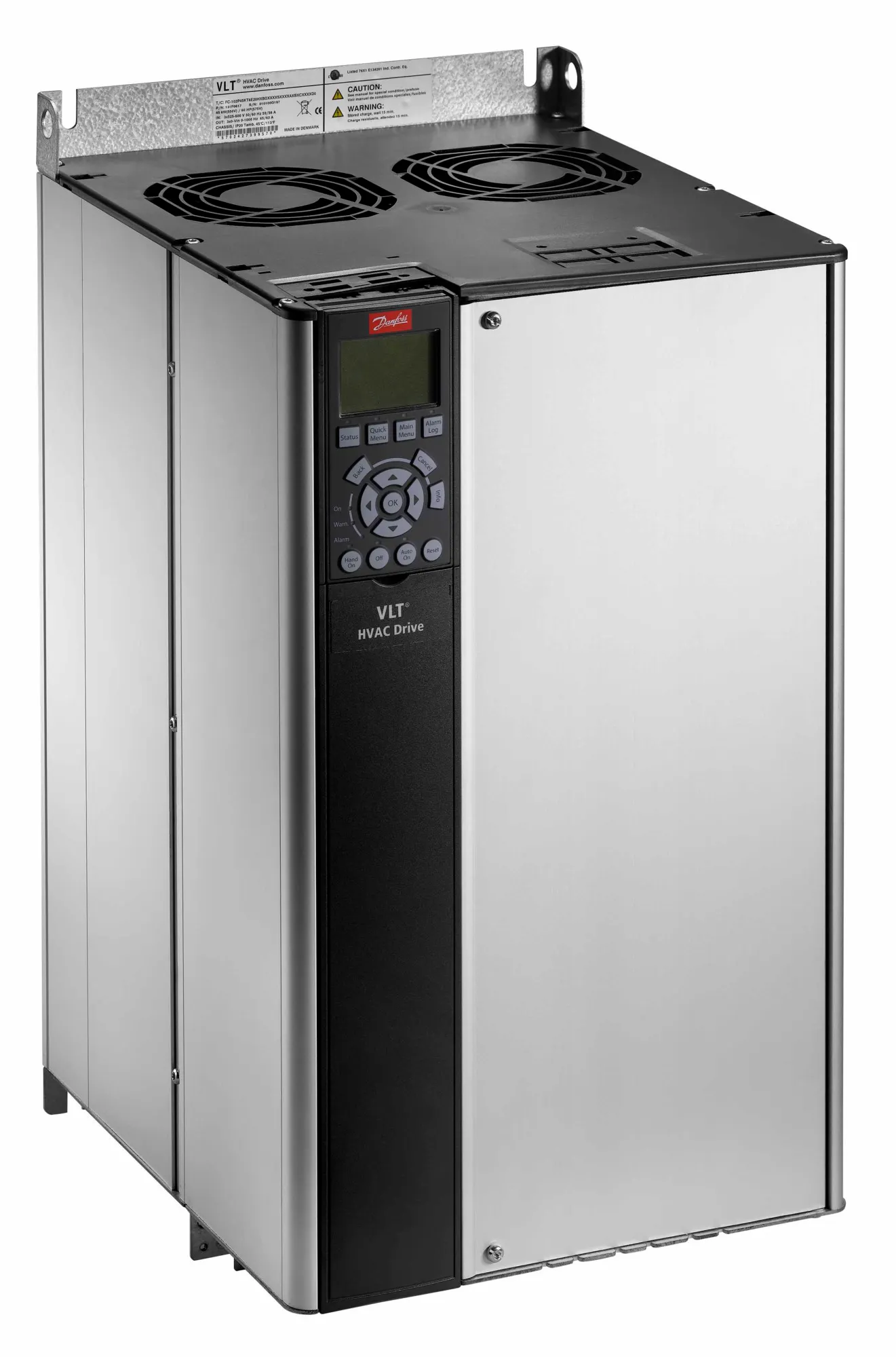

134N8575 Danfoss: Frequency converterFC-302P30KT7P55H5BGC1XXSXXXXAXBXCXXXXDXVLT® AutomationDrive FC-302(P30K) 30 KW / 40 HP, Three phase525 - 690 VAC *, IP55 / Type12 BackplateMarine,ruggedis RFI A2(C3)Brake chopperGraphical Loc. Cont. PanelCoated PCB, Mains DisconnectLatest release std. SW.Frame: C2No C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
60.59 kg
Net weight
58.75 kg
Volume
228.095 l
EAN
5710107938834
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT® AutomationDrive FC-
Series
302 : 302
Power Rating
P30K : (P30K) 30 KW / 40 HP
Phase
T : Three phase
Mains Voltage
7 : 525 - 690 VAC *
Possible rating issue
WARN01 : Possible Rating Issue:
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
H5 : Marine,ruggedis RFI A2(C3)
Brake - Safe Stop
B : Brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
1 : Mains Disconnect
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C2 : C2
Typecode Part 1
FC-302P30KT7P55H5BGC
Typecode Part 2
1XXSXXXXAXBXCXXXXDX
Product Catalog
GLBL : Global (Standard)
Power 150% (HO) [KW]
30
Power 110% (NO) [KW]
37
Height [mm]
780,0
Width w/ no C options [mm]
370,0
Depth [mm]
332,0
Depth with Option A/B [mm]
332,0
kVA
40.6
Power Loss NO [W]
740
Power Loss HO [W]
600
Continuous Current (NO) [A]
43
Intermittent Current (NO) [A]
47.3
Continuous Current (HO) [A]
36
Intermittent Current (HO) [A]
54
Calculated Gross Weight [kg]
60.59
Calculated Net Weight [kg]
58.75
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302P30KT7P55H5BGC
Modelcode02
1XXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
130B4170
Back plate IP20/Chassis, C3
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B6226
Leakage Current Monitor Kit, C3
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1254
VLT=C2=AE Adv. Cascade Contr. MCO 102, ctd
130B1192
IP21 conversion kit, top, C3
130B1191
IP 21/Type 1 conversion kit, C3
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
