134U6067

Part Number: 134U6067
134U6067
Manufacturer
Danfoss
Part number
134U6067
Category

Product Information

Extended Description

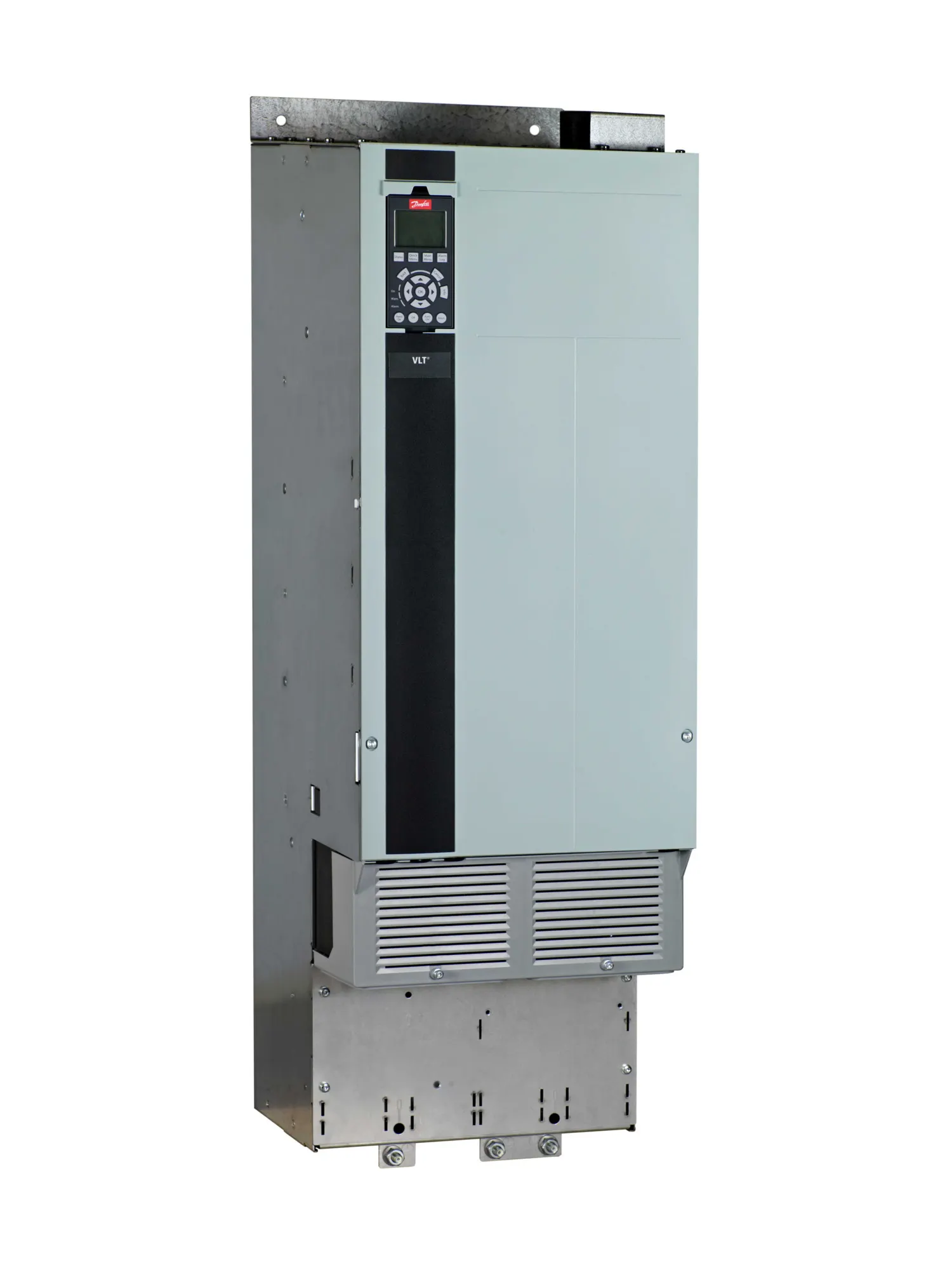

134U6067 Danfoss: Frequency ConverterFC-102N160T7E20H2UGCXXXSXXXXAXBKCXXXXDXVLT=C2=AE HVAC Drive FC-102(N160) 160 KW / 250 HP, Three phase525 - 690 VAC *, (E20) IP20 / ChassisRFI FilterBrake chopper + Safe stopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: D3HNo C1 option, No D optionNo A Option, MCB-101 General purp. I/OOther options according to Model Code
Gross weight
76 kg
Net weight
71 kg
Volume
0 l
EAN
5710108021108
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N160 : (N160) 160 KW / 250 HP
Phase
T : Three phase
Mains Voltage
7 : 525 - 690 VAC *
Possible rating issue
WARN01 : Possible Rating Issue:
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
U : Brake chopper + Safe stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BK : MCB-101 General purp. I/O
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D3H : D3H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102N160T7E20H2UGC
Typecode Part 2
XXXSXXXXAXBKCXXXXDX
Power 110% (NO) [KW]
160
Height [mm]
909,0
Height w/ Regen/Loadshare [mm]
1004,0
Width w/ no C options [mm]
250,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
229
Power Loss NO [W]
2646
Continuous Current (NO) [A]
201
Intermittent Current (NO) [A]
221
Calculated Gross Weight [kg]
62.3
Calculated Net Weight [kg]
62
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N160T7E20H2UGC
Modelcode02
XXXSXXXXAXBKCXXXXDX
176F3627
Cooling Kit, in btm/ out top, 1800, D3h
176F3625
Cooling Kit, in back/ out back, D3h
176F3633
Cooling Kit, in back/out back, D3h
176F3629
Cooling Kit, in btm/out top, 2000mm, D3h
176F3409
Adapter Plate, D1h/D3h
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1202
VLT=C2=AE DeviceNet MCA 104, coated
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
