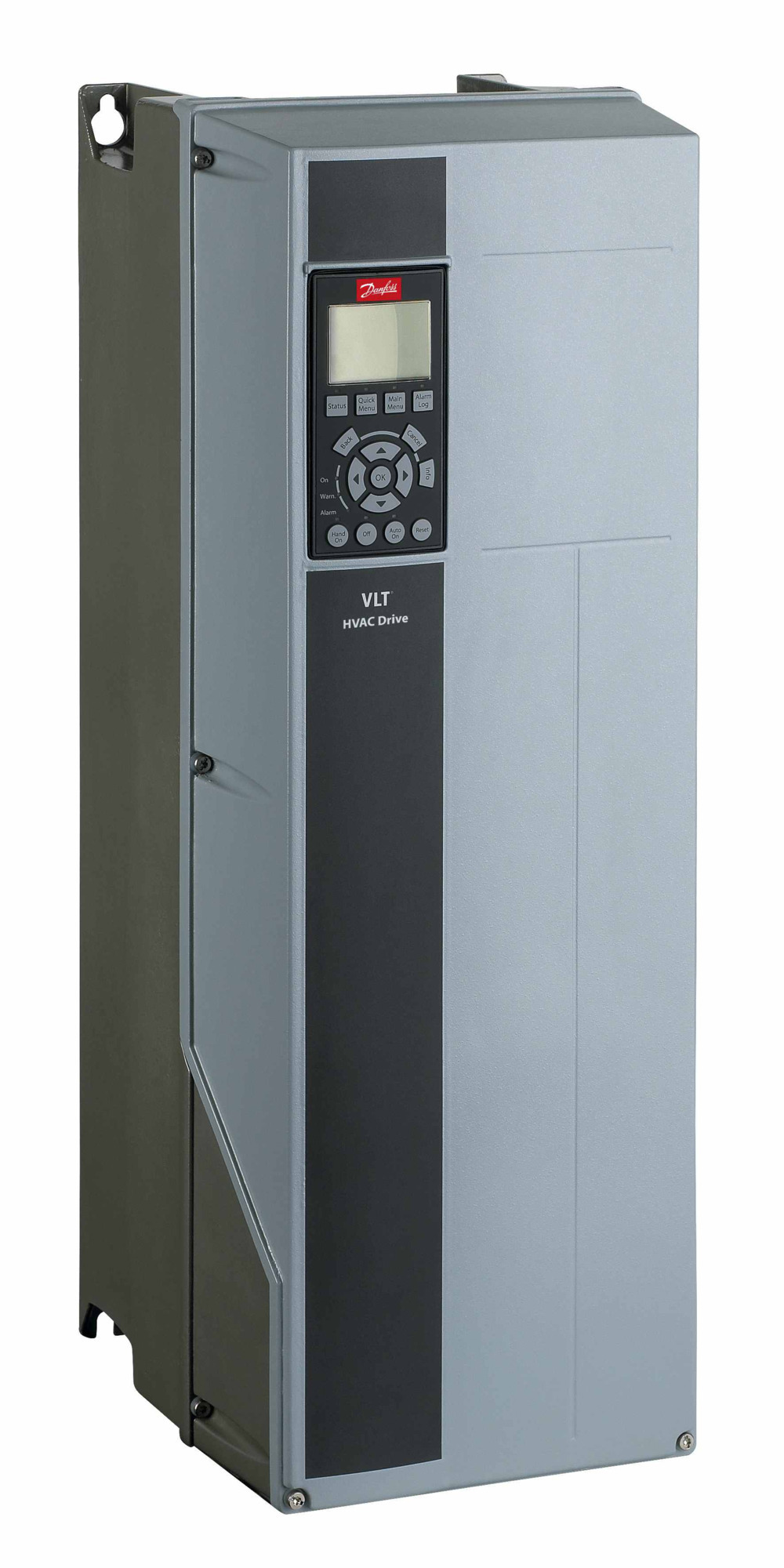

134U7446

Part Number: 134U7446
134U7446
Manufacturer
Danfoss
Part number
134U7446
Category

Product Information

Extended Description

134U7446 Danfoss: Frequency converterFC-103P22KT4P21H2TGXXXXSXXXXAZBXCXXXXDXVLT=C2=AE Refrigeration Drive FC-10322 KW / 30 HP, Three phase380 - 480 VAC, IP21 / Type 1 BackplateRFI filter Class A2Safe StopGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.AK-LonWorks MCA 107, No B OptionNo C1 option, No D optionFrame: B2Other options according to Model code
Gross weight
28.85 kg
Net weight
27.9 kg
Volume
144.67 l
EAN
5710108034948
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Refrigeration Drive
Series
103 : 103
Power Rating
P22K : 22 KW / 30 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
P21 : IP21 / Type 1 Backplate
RFI Filter
H2 : RFI filter Class A2
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AZ : AK-LonWorks MCA 107
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B2 : B2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-103P22KT4P21H2TGX
Typecode Part 2
XXXSXXXXAZBXCXXXXDX
Power 110% (NO) [KW]
22
Height [mm]
664,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
30.5
Power Loss NO [W]
525
Continuous Current (NO) [A]
44
Intermittent Current (NO) [A]
48.4
Calculated Gross Weight [kg]
30.1
Calculated Net Weight [kg]
29.8
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-103P22KT4P21H2TGX
Modelcode02
XXXSXXXXAZBXCXXXXDX
130B3381
RFI Filter 200/500V basic A2 frame B2
130B9980
Cable assy f. motor cable, C2
130B9001
multiple 2 pole power combicon, 24V plug
130B1269
VLT=C2=AE AK-LonWorks MCA 107, coated
130B0264
Cradle for A5,B1,B2,C1,C2,D2h enclosure
130B0295
sparepart/terminals accessory bag
130B0294
sparepart/multi accessory bag - clips
130B1069
Multiple relay 1 plug
130B1068
Multiple relay 2 plug
130B1062
DC coil 22kW T4/6, 11kW T2, 22-30kW T7
130B3465
Back plate IP66/Type 4X, SS, B2
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1047
Panel Through Mounting Kit, B2
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1125
VLT=C2=AE General Purpose I/O MCB 101,unctd
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
VLT=C2=AE Refrigeration Drive FC 103 Selection Guide | English VLT=C2=AE Advanced Harmonic Filter AHF005-010 VLT=C2=AE Refrigeration Drive FC 103 1.1-90kW Control Card VLT=C2=AE FC Series Power Card Kit for Enclosure Size B4 Safe Torque Off_Lang pack1 Safe Torque Off_Lang pack2 Safe Torque Off_Lang pack3 VLT Ethernet Fieldbuses MCA 12x IG VLT Wired Fieldbuses MCA 10x IG SASO KSA R-205899 UL E236048 UL E70524 Danfoss EU-UK 00730297 A6 Danfoss EU-UK 00738283 A5 PROFIBUS Z10897 T=C3=9CV Z10 82282 007 Rev. 01 UL E134261_UL-US-2340906 Danfoss MD 00723827 A1 Danfoss MD 00729876 A4 VLT=C2=AE Refrigeration Drive Support File VLT=C2=AE Refrigeration Drive Simulator VLT=C2=AE Motion Control Tool MCT31 VLT=C2=AE MCA101 PROFIBUS GSD VLT=C2=AE MCA120 PROFINET GSDML VLT=C2=AE Drives PROFIBUS PCA Block
