134U7774
Part Number: 134U7774
Product Information
Extended Description

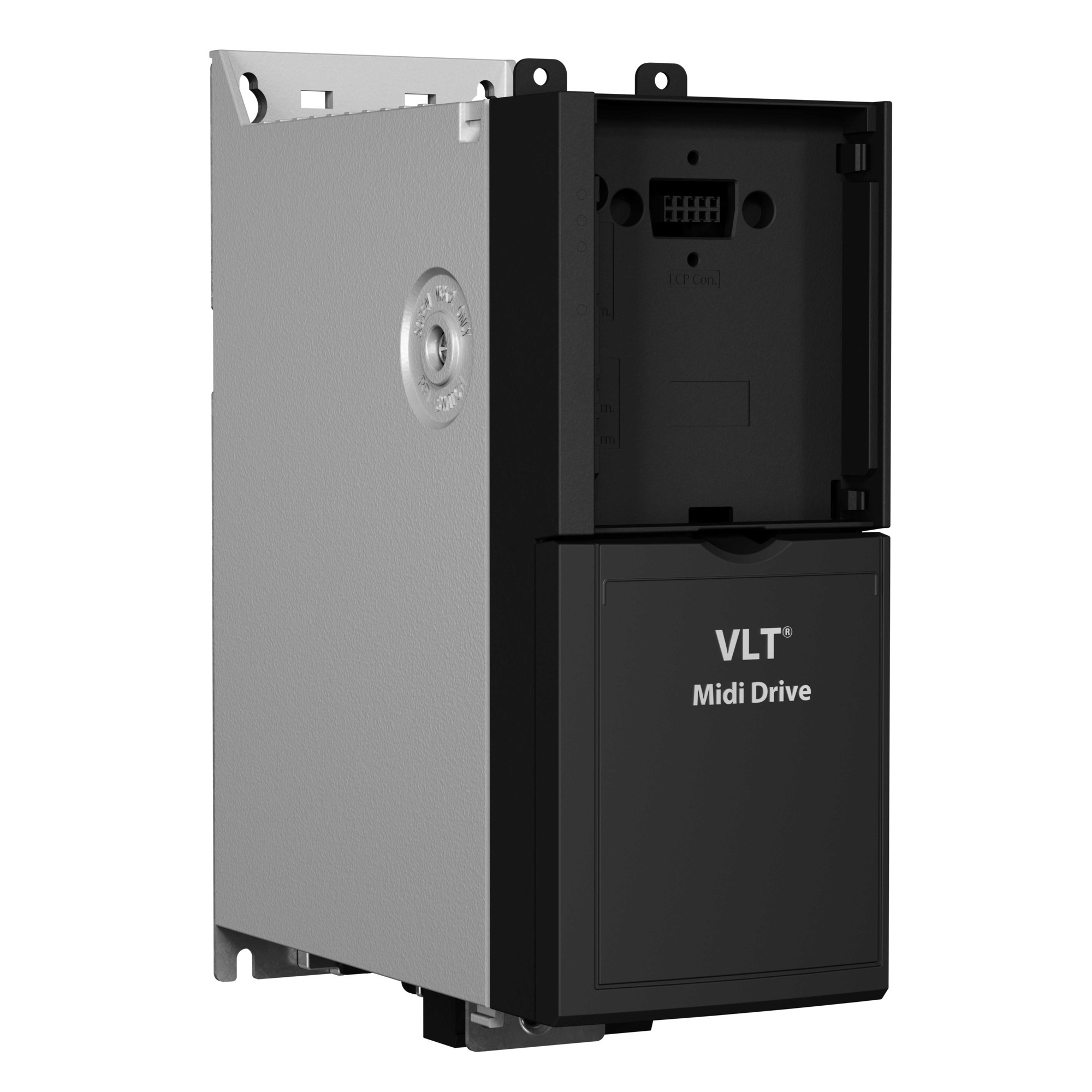

134U7774 Danfoss: Frequency converterFC-280P3K0T4E20H2BXCXXXSXXXXALVLT® Midi Drive FC-2803.0 kW / 4.0 HP, Three phase 380-480 VACIP20 / Chassis, EMC Cat C3 (200/400V)Brake chopper, No displayCoated PCB, Latest releaseIntegrated PROFINETFrame: K2Other options according to Model code
Gross weight
4.47 kg
Net weight
3.95 kg
Volume
16.53 l
EAN
5710108038267
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT® Midi Drive FC-
Series
280 : 280
Power Size
P3K0 : 3.0 kW / 4.0 HP
Voltage
T4 : Three phase 380-480 VAC
Enclosure
E20 : IP20 / Chassis
RFI Filter
H2 : EMC Cat C3 (200/400V)
Brake & Stop
B : Brake chopper
Display
X : No display
Coating
C : Coated PCB
Mains Option
X : No mains options
Adaptation A
X : No Adaption
Adaptation B
X : No Adaption
Special Version
SXXX : Latest release
Software Language Pack
X : Standard language pack
Control Card
AL : Integrated PROFINET
Frame Size
K2 : K2
Typecode Part 1
FC-280P3K0T4E20H2BXC
Typecode Part 2
XXXSXXXXAL
Product Catalog
NO_VIEW : NO VIEW
Calculated Gross Weight [kg]
3.9
Calculated Net Weight [kg]
3.6
Intermittent Current (HO) [A]
11.5
Continuous Current (HO) [A]
7.2
Power Loss HO [W]
94.8
kVA
5
Power 160% (HO) [KW]
3
Height [mm]
272.5
Width w/ no C options [mm]
90
Depth [mm]
168
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-280P3K0T4E20H2BXC
Modelcode02
XXXSXXXXAL
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
