134U8190
Part Number: 134U8190
Product Information
Extended Description

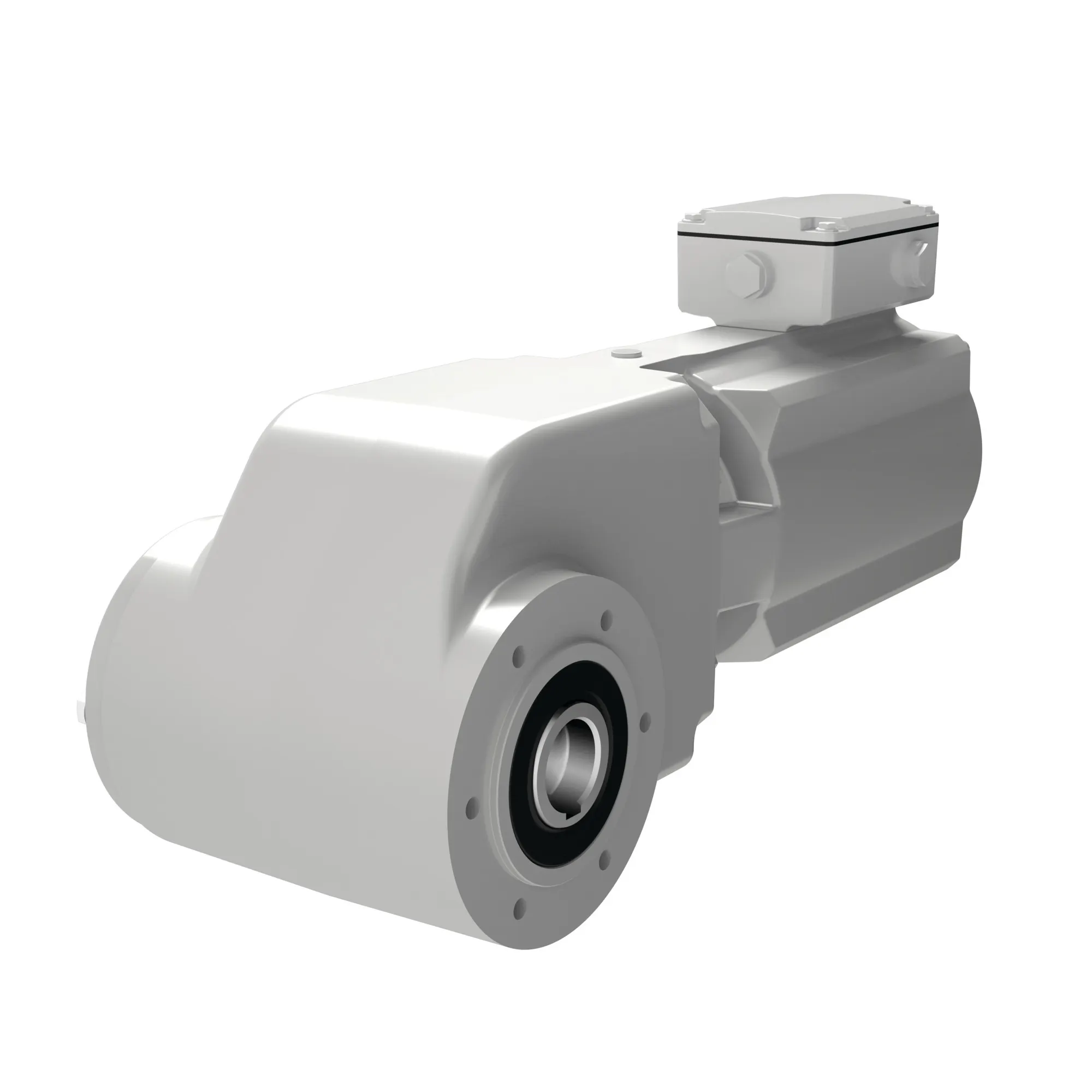

134U8190 Danfoss: OGDHK231K131302L06RXS21P3A9010H1BXXXXXXXVLT=C2=AE OneGearDriveHygienic, max 2.3 KW (V210),31.13, 30 mm, Stainless steel,Without CSA/UL, Vertical, motor up, Without brake,Motor+plug+conn, no cable
Gross weight
26 kg
Net weight
25 kg
Volume
0.546 hl
EAN
5710108042400
Product View (Switch)
GLBL : Global (Standard)
Product Group
OGD : VLT=C2=AE OneGearDrive=C2=AE
Product Variant
H : Hygienic
Gear Type
K : Bevel Gear
Size
2 : V210
Gear Ratio
31K13 : 31.13
Output Shaft Design
1 : Hollow shaft
Output Shaft Size
30 : 30 mm
Output Shaft Material
2 : Stainless steel
Motor Size
L06 : max 2.3 KW (V210)
Reserved RX
RX : Reserved X
Motor Connection
S2 : Motor+plug+conn, no cable
Connector Position
1 : Top
Installation Position
P3 : Vertical, motor up
Surface Coating
A : Aseptic
RAL Color Code
9010 : Standard white
Lubricants
H1 : Food grade oil
Brake
BXXX : Without brake
CSA / UL
X : Without CSA/UL
Reserved A
X : Reserved A
Reserved B
X : Reserved B
Reserved C
X : Reserved C
Typecode Part 1
OGDHK231K131302L06RXS21P3
Typecode Part 2
A9010H1BXXXXXXX
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
OGDHK231K131302L06RXS21P3
Modelcode02
A9010H1BXXXXXXX
Calculated Gross Weight [kg]
26
Calculated Net Weight [kg]
25
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Recommended Plant
ERR01
178G1033
Crimp tool set
178G9935
Service-Kit oil check
178G5505
Hollow shaft seal Viton FPM, SS, 5 pcs
178G1043
CONTACT PIN - 1mm - HC1 CRIMP SET
178G5958
MOUNTING SET FOR TORQUE ARM
178G5011
HOLLOW SHAFT COVER SET
178G1042
CONTACT PIN - 2mm - HC2 CRIMP SET
178G1033
Crimp tool set
178H5006
SUBUNIT TORQUE ARM V2A
178H1631
Motor connector, 10 m cable
178H1630
Motor connector, 5 m cable
178H1613
MOTOR CONNECTOR WITHOUT CABLE
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
