134X0706
Part Number: 134X0706
Product Information
Extended Description

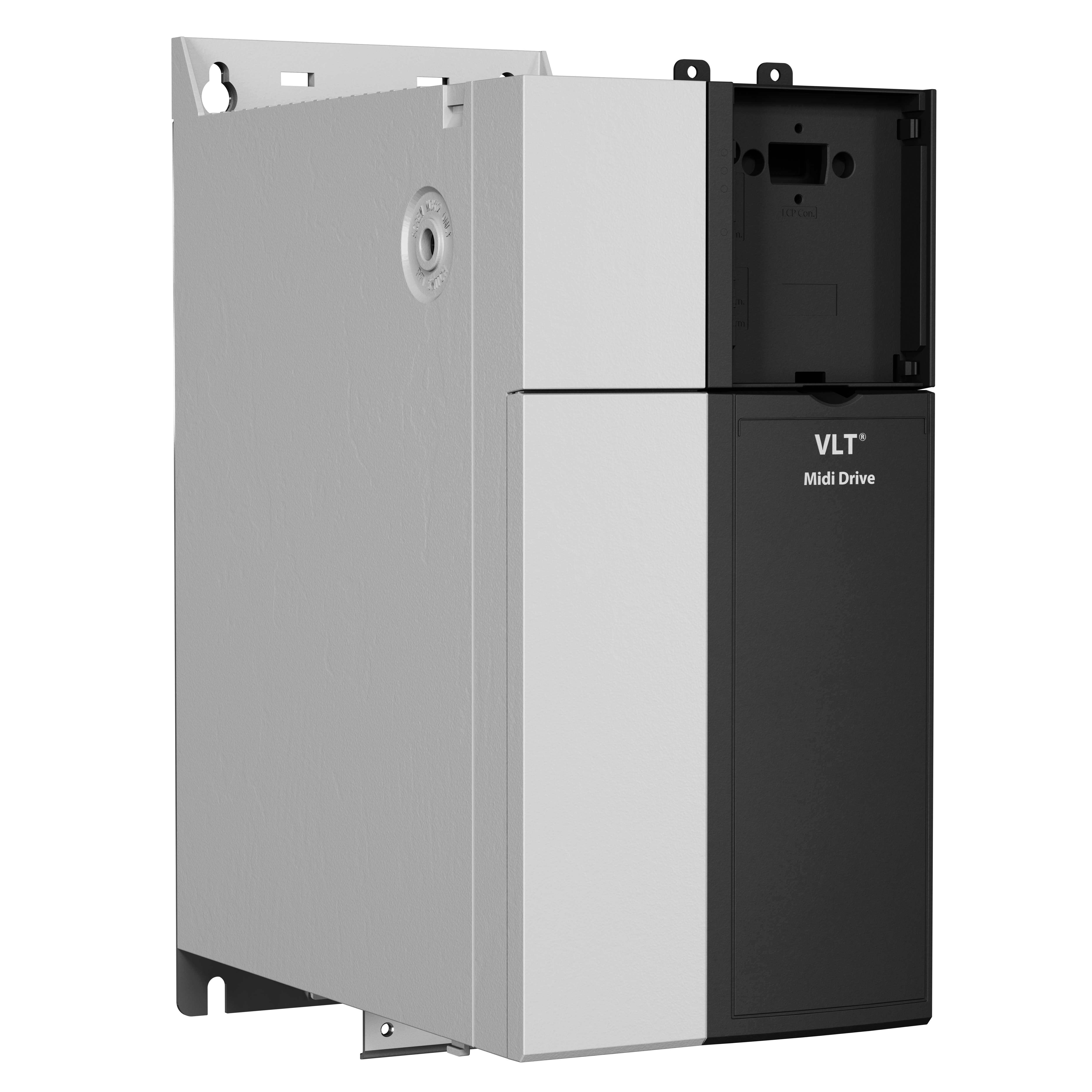

134X0706 Danfoss: Frequency converterFC-280P15KT4E20H1BXCXXXSXXXXANVLT=C2=AE Midi Drive FC-28015 kW / 20 HP, Three phase 380-480 VACIP20 / Chassis, EMC Cat C1(200V)/C2(400V)Brake chopper, No displayCoated PCB, Latest releaseIntegrated EtherNET IPFrame: K4Other options according to Model code
Gross weight
9.27 kg
Net weight
8.39 kg
Volume
52.92 l
EAN
5710108067779
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Midi Drive FC-
Series
280 : 280
Power Size
P15K : 15 kW / 20 HP
Voltage
T4 : Three phase 380-480 VAC
Enclosure
E20 : IP20 / Chassis
RFI Filter
H1 : EMC Cat C1(200V)/C2(400V)
Brake & Stop
B : Brake chopper
Display
X : No display
Coating
C : Coated PCB
Mains Option
X : No mains options
Adaptation A
X : No Adaption
Adaptation B
X : No Adaption
Special Version
SXXX : Latest release
Software Language Pack
X : Standard language pack
Control Card
AN : Integrated EtherNET IP
Frame Size
K4 : K4
Typecode Part 1
FC-280P15KT4E20H1BXC
Typecode Part 2
XXXSXXXXAN
Product Catalog
NO_VIEW : NO VIEW
Calculated Gross Weight [kg]
8.5
Calculated Net Weight [kg]
8.2
Intermittent Current (HO) [A]
46.5
Continuous Current (HO) [A]
31
Power Loss HO [W]
393.4
kVA
21.5
Power 160% (HO) [KW]
15
Height [mm]
317.5
Width w/ no C options [mm]
133
Depth [mm]
245
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-280P15KT4E20H1BXC
Modelcode02
XXXSXXXXAN
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
132B0375
Decoupling kit, Power, K4 / K5
132B0371
Fan 92x38 IP21 PWM
132B0369
Bus cable decoupling kit, FC-280
132B0357
Terminal Cover frame size K4
132B0350
Accessory bag FC-280 plugs
132B0349
VLT=C2=AE Cassette control - EtherNet/IP
132B0802
VLT=C2=AE Cassette control - Profisafe
132B0246
External RFI Filter,30A, 11-15 kW, T4
132B0262
LCP Blind cover, IP20/21
132B0254
VLT=C2=AE Control Panel LCP 21, numeric
132B0102
LCP Remote Mounting Kit,w/ 3m cable
132B0368
VLT=C2=AE 24 V DC Supply MCB 106
132B0366
Adapter Plate, VLT2800 size D
132B0281
Adaptor, Graphical LCP
132B0338
IP21 / Type 1 conversion kit, K4
134B0792
VLT=C2=AE Memory Module Programmer MCM 101
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1024
DrivePro ExWarr Onsite PG03 48 Months
