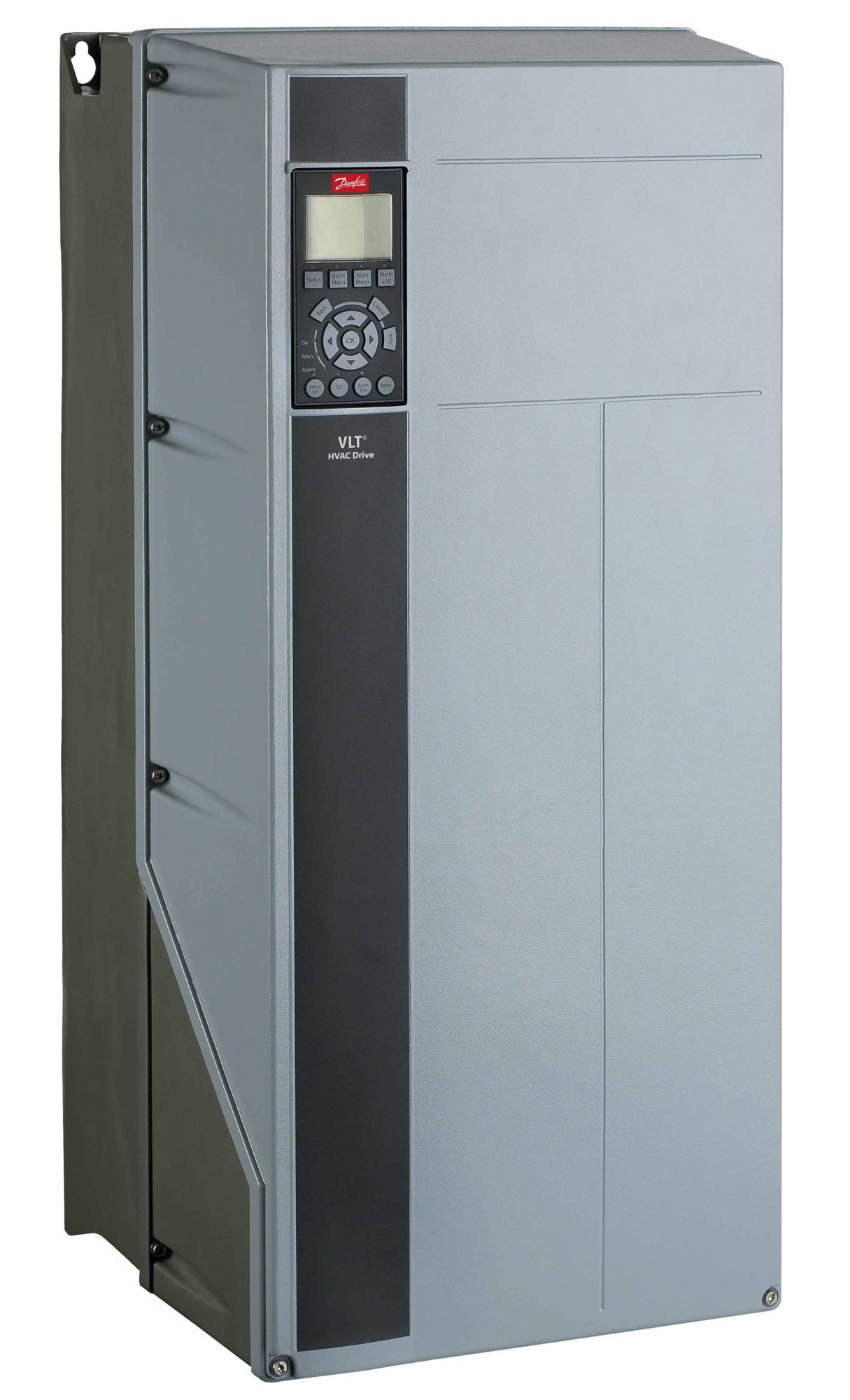

134X5551

Part Number: 134X5551
134X5551
Manufacturer
Danfoss
Part number
134X5551
Category

Product Information

Extended Description

134X5551 Danfoss: Frequency ConverterFC-102P90KT4E21H1UGXXXXSXXXXAXBXCXXXXDXVLT=C2=AE HVAC Drive FC-102(P90K) 90 KW / 125 HP, Three phase380 - 480 VAC, IP21 / Type 1(H1) RFI Class A1/B (C1)Brake chopper + Safe stopGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: C2No C1 option, No D optionNo A Option, No B OptionOther options according to Model Code
Gross weight
60.5 kg
Net weight
60.2 kg
Volume
228.095 l
EAN
5710108117078
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P90K : (P90K) 90 KW / 125 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E21 : IP21 / Type 1
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
U : Brake chopper + Safe stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C2 : C2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P90KT4E21H1UGX
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
Power 110% (NO) [KW]
90
Height [mm]
770,0
Width w/ no C options [mm]
370,0
Depth [mm]
335,0
Depth with Option A/B [mm]
335,0
kVA
123
Power Loss NO [W]
1474
Continuous Current (NO) [A]
177
Intermittent Current (NO) [A]
195
Calculated Gross Weight [kg]
56.2
Calculated Net Weight [kg]
55.9
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P90KT4E21H1UGX
Modelcode02
XXXSXXXXAXBXCXXXXDX
130B4597
Weather shield f. outdoor instl. C1, C2
130B3911
Back plate IP21/Type 1, IP55/Type 12, C2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1385
VLT=C2=AE Profibus DP V1 MCA101, unctd 5pcs
130B1049
Panel Through Mounting Kit, C2
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
131H3164
FC-102P90KT4E55H1UGCXXXSXXXXAXBXCXXXXDX
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
