134X8258

Part Number: 134X8258
134X8258
Manufacturer
Danfoss
Part number
134X8258
Category

Product Information

Extended Description

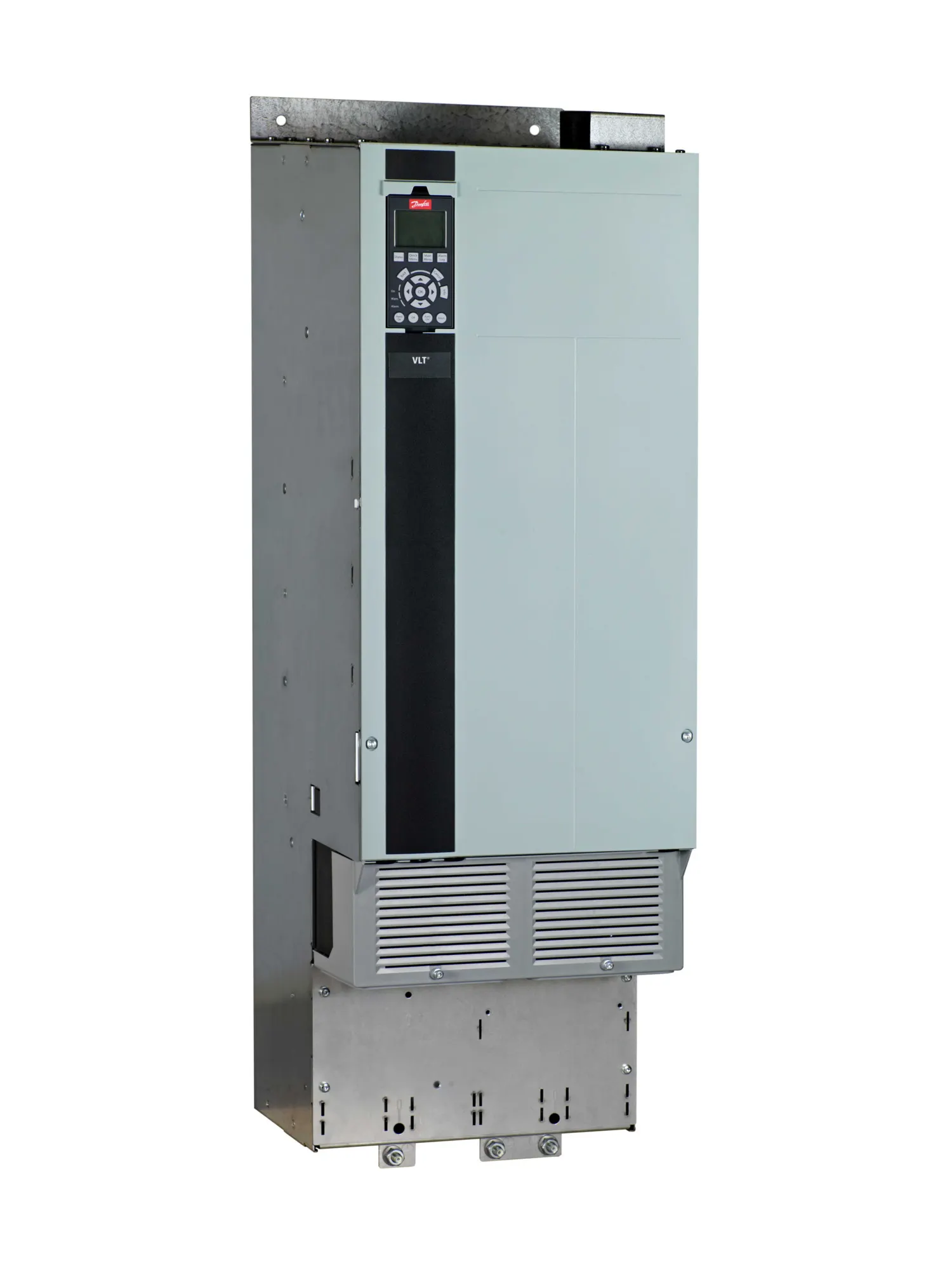

134X8258 Danfoss: Frequency ConverterFC-102N160T4E20H4TGCXXXSXXXXA0BKCXXXXDXVLT=C2=AE HVAC Drive FC-102(N160) 160 KW / 250 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI class A1 (C2)Safe StopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: D3HNo C1 option, No D optionPROFIBUS DP MCA 101, MCB-101 General purp. I/OOther options according to Model Code
Gross weight
80.6 kg
Net weight
80.6 kg
Volume
426.496 l
EAN
5710108144180
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N160 : (N160) 160 KW / 250 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H4 : RFI class A1 (C2)
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
A0 : PROFIBUS DP MCA 101
B Option
BK : MCB-101 General purp. I/O
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D3H : D3H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102N160T4E20H4TGC
Typecode Part 2
XXXSXXXXA0BKCXXXXDX
Power 110% (NO) [KW]
160
Height [mm]
909,0
Height w/ Regen/Loadshare [mm]
1004,0
Width w/ no C options [mm]
250,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
218
Power Loss NO [W]
3764
Continuous Current (NO) [A]
315
Intermittent Current (NO) [A]
346
Calculated Gross Weight [kg]
62.3
Calculated Net Weight [kg]
62
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N160T4E20H4TGC
Modelcode02
XXXSXXXXA0BKCXXXXDX
176F3627
Cooling Kit, in btm/ out top, 1800, D3h
176F3625
Cooling Kit, in back/ out back, D3h
176F3633
Cooling Kit, in back/out back, D3h
176F3629
Cooling Kit, in btm/out top, 2000mm, D3h
176F3409
Adapter Plate, D1h/D3h
176F1742
Profibus Sub-D9 Adapter kit, D, E
130B1170
LCP Panel Mounting Kit
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
