135N2615

Part Number: 135N2615
135N2615
Manufacturer
Danfoss
Part number
135N2615
Category

Product Information

Extended Description

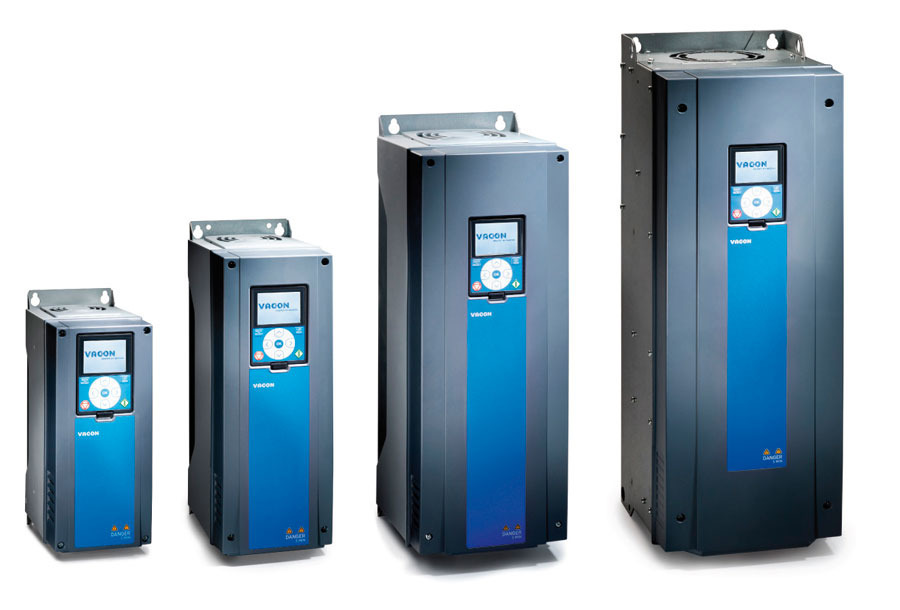

135N2615 Danfoss: Frequency converterVACON0100-3L-0105-5+IP54VACON 100 Industrial380-500 Vac, 105 Amp, IP54/NEMA12Graphical Keypad MK01C2 Commercial&Industry EnvironB Slot: F3,3 Relay boardC Slot: No boardD Slot: No boardFieldbus: Std protocol,Modbus,N2,BacNetManual: EnglishFrame 07E Slot: No boardOther options according to Model code
Gross weight
39 kg
Net weight
38 kg
Volume
0 l
EAN
5710108187958
Product View (Switch)
GLBL : Global (Standard)
Segment
NONE : VACON 100 Industrial
Region Code
-R00 : R00 International
Mains voltage
-5 : 380-500 Vac
Current rating
-0105 : 105 Amp
Installation options
-DM : DM Drive Module
Enclosure
+IP54 : IP54/NEMA12
Control panel
+HMGR : Graphical Keypad MK01
EMC emission limit category
+EMC2 : C2 Commercial&Industry Environ
Common mode filter (for DM)
+P000 : No Option
DUT filter (for DM)
+P000 : No Option
Brake chopper
+DBNO : No dynamic braking device
Real time clock option
+SRNO : No Battery for real time clock
Configurable power range
NONE : None
Power connections
+P000 : No Power options (+P000)
Cable entry
+QGLM : Metric conduit plate
Additional Equipment B
+Q000 : No option for Qxxx_B (+Q000)
Additonal Equipment C
+Q000 : No additonal option for Qxxx_C
Shipping package
+GSCB : Cardboard Box as Shipping pack
Marine construction
+E000 : no option
B-Slot Option Board
+SBF3 : F3,3 Relay board
C- Slot Option Board
+SC00 : No board
D-Slot Option Board
+SD00 : No board
E-Slot Option Board
+SE00 : No board
Internal FB selection
+FBM1 : Std protocol,Modbus,N2,BacNet
Documentation level
+DQCK : Quick Guide
Document language preference
+DLUK : English
Firmware Language Pack
+FL01 : UK, DE, FI, SE, IT, FR lang
Application
+A0000 : No Application
Parameter Set
+L0000 : No application parameter set
Motor parameter default freq
+LS50 : 50 Hz def motor freq settings
Unit for measure for display
+LSSI : Metric Units of Measure
Labeling options
+LPC1 : no additional labels
UL approval
+GAUL : UL Approval (+GAUL)
Marine approval
NONE : None
RCM Approval
+GACT : RCM Approval N16307
KC approval
+GAKC : KC Approval
Ukrainian approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Auxilary power supply
+C000 : no option
DC power supply for aux device
+C000 : no option
AC socket for aux devices
+C000 : no option
Input Devices
NONE : none_
Common mode filter (for ED)
+P000 : no option
DU/DT, Sine filter (for ED)
+P000 : no option
Terminal Options
NONE : none_
Door Equipments
+C000 : no option
Cabinet heater
+C000 : no option
Cabinet light
+C000 : no option
Motor heater control
+C000 : no option
Emergency stop options
+C000 : no option
Insulation fault sensor
+C000 : no option
Cabling from top
+C000 : no option
Back channel cooling
+C000 : no option
Cabinet Plinth
+C000 : no option
Empty extension segment
NONE : None
Standardized cabinet solution
NONE : None
Engineered cabinet solution
NONE : None
Product Group
VACON : VACON
Product Series
0100 : Vacon 100 series
Phase
-3L : 3 Phase AC Input
Customized
+BM26 : Vacon 100
Main Circuit
+M000 : NONE
Firmware
+F0072 : Vacon0100 Software package
Max output frequency
NONE : None
Terminal Box
+T000 : NONE
Bypass Control Operation Mode
NONE : none_
Bypass Input Type
NONE : none_
Bypass power connection type
NONE : none_
CE approval
+GACE : CE Approval (+GACE)
ATEX Approval
NONE : None
County Specific Approval
NONE : None
Warrenty time
+WT01 : Warranty 12/18 months (+WT01)
Frame Size
MR07 : Frame 07
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0105-5
Modelcode02
+IP54
Calculated Net Weight [kg]
37.5
Calculated Gross Weight [kg]
38.5
Motor Power Low Overload [kW]
55
Motor Power High Overload [kW]
45
Dimensions WxHxD [mm] net
237 X 660 X 259
Dimensions WxHxD [mm] Gross
310 X 740 X 310
Dimensions WxHxD [mm]
237X660X259
Continuous Current (NO) [A]
105
Continuous Current (HO) [A]
87
Motor Power HP Low Overload
75
Motor Power HP High Overload
60
Typecode Part 1
70-AB3L01055W07B520BM26
Typecode Part 2
-00050019
Stockcode part 1
70-AB3L01055W07B520BM26
Stockcode part 2
-00050019
check if complete
OK
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Help Counter
5
Calculated Net Weight
38
Sub family identification
NONE : Normal customer ordered
Recommended Plant
ERR01
ECCN US
3A999.a
ECCN EU
Y901
181B1101
DC-link cap. 700uF 800V
181B1100
Terminal connector kit Vacon100
181B1095
Flat cable kit MR07
181B1094
Control flat cable MR07
181B1088
EMC board MR07 380/500V
181B1087
Capacitor filter board MR07 380/500V
181B1152
IGBT kit Gen1 MR07
181B1149
MR07 Snubber capacitor kit
181B1148
MR07 Input wire kit
181B1050
Internal fan MR07
