Part Number: 135U8116
135U8116
Manufacturer
Danfoss
Part number
135U8116
Category

Product Information

Extended Description

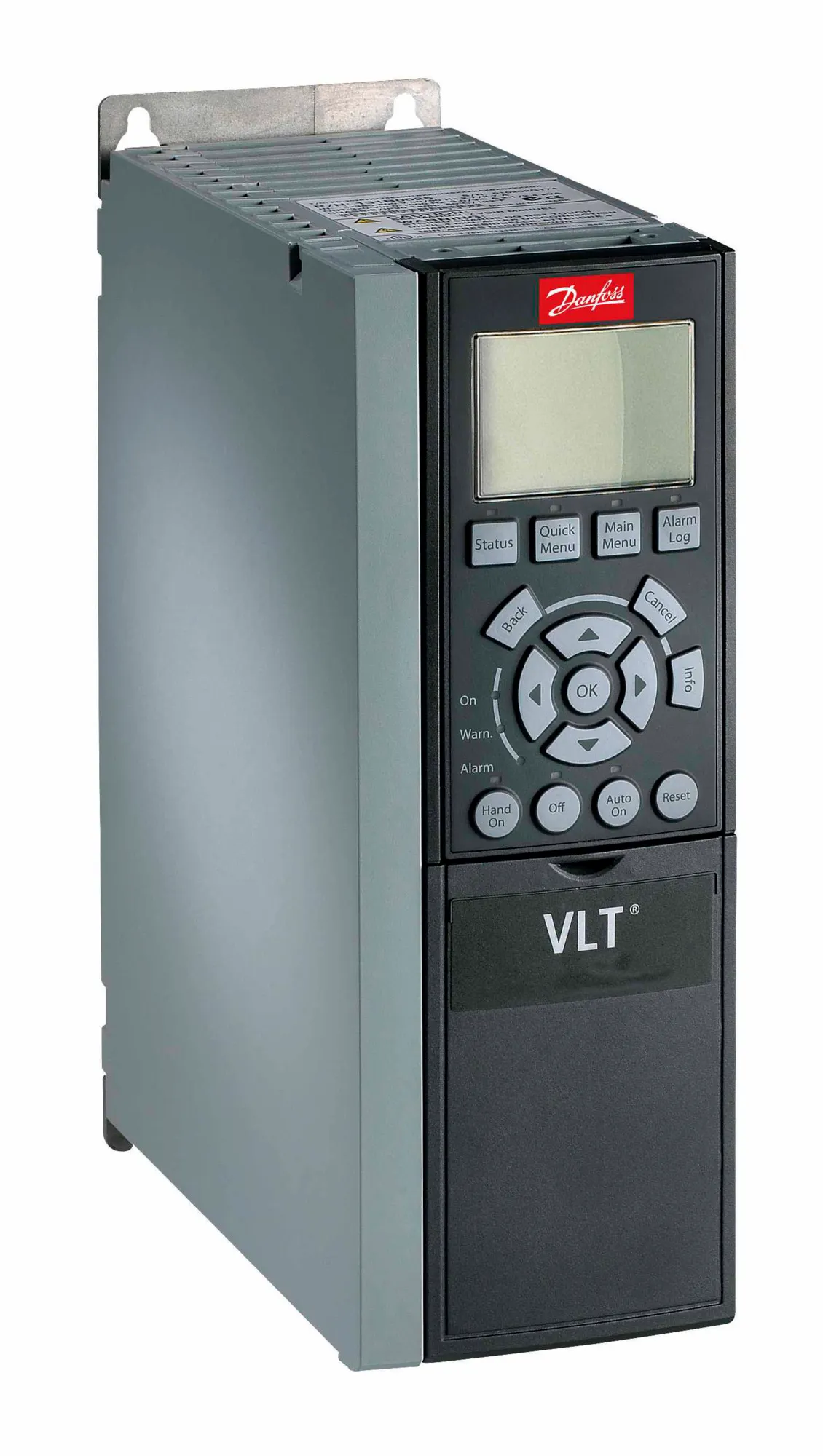

135U8116 Danfoss: Frequency ConverterFC-102P1K5T4E20H1XGCXXXSXXXXALBXCXXXXD0VLT=C2=AE HVAC Drive FC-102(P1K5) 1.5 KW / 2.0 HP, Three phase380 - 480 VAC, (E20) IP20 / Chassis(H1) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: A2No C1 option, MCB-107 24V DC backupPROFINET MCA 120, No B OptionOther options according to Model Code
Gross weight
5.2 kg
Net weight
4.9 kg
Volume
21.569 l
EAN
5710108343781
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P1K5 : (P1K5) 1.5 KW / 2.0 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
A2 : A2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P1K5T4E20H1XGC
Typecode Part 2
XXXSXXXXALBXCXXXXD0
Power 110% (NO) [KW]
1.5
Height [mm]
268,0
Width w/ no C options [mm]
90,0
Width w/ two C options [mm]
150,0
Depth [mm]
205,0
Depth with Option A/B [mm]
220,0
kVA
2.84
Power Loss NO [W]
62
Continuous Current (NO) [A]
4.1
Intermittent Current (NO) [A]
4.51
Calculated Gross Weight [kg]
4.9
Calculated Net Weight [kg]
4.6
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P1K5T4E20H1XGC
Modelcode02
XXXSXXXXALBXCXXXXD0
Recommended Plant
ERR01
130B7531
Mounting Kit f. C Option, 60mm, A2/A3
130B7530
Mounting Kit f. C Option, 40mm, A2/A3
130B7389
NEMA 1 Conversion Kit, Top, 10 pcs, A2
130B5645
Leakage Current Monitor Kit, A2, A3
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1170
LCP Panel Mounting Kit
130B1212
VLT=C2=AE General Purpose I/O MCB 101, ctd
130B1210
VLT=C2=AE Relay Option MCB 105, coated
130B0185
Adapter Plate, 395x220mm
130B0184
Adapter Plate, 395x130mm
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1024
DrivePro ExWarr Onsite PG03 48 Months
