135X3557
Part Number: 135X3557
Product Information
Extended Description

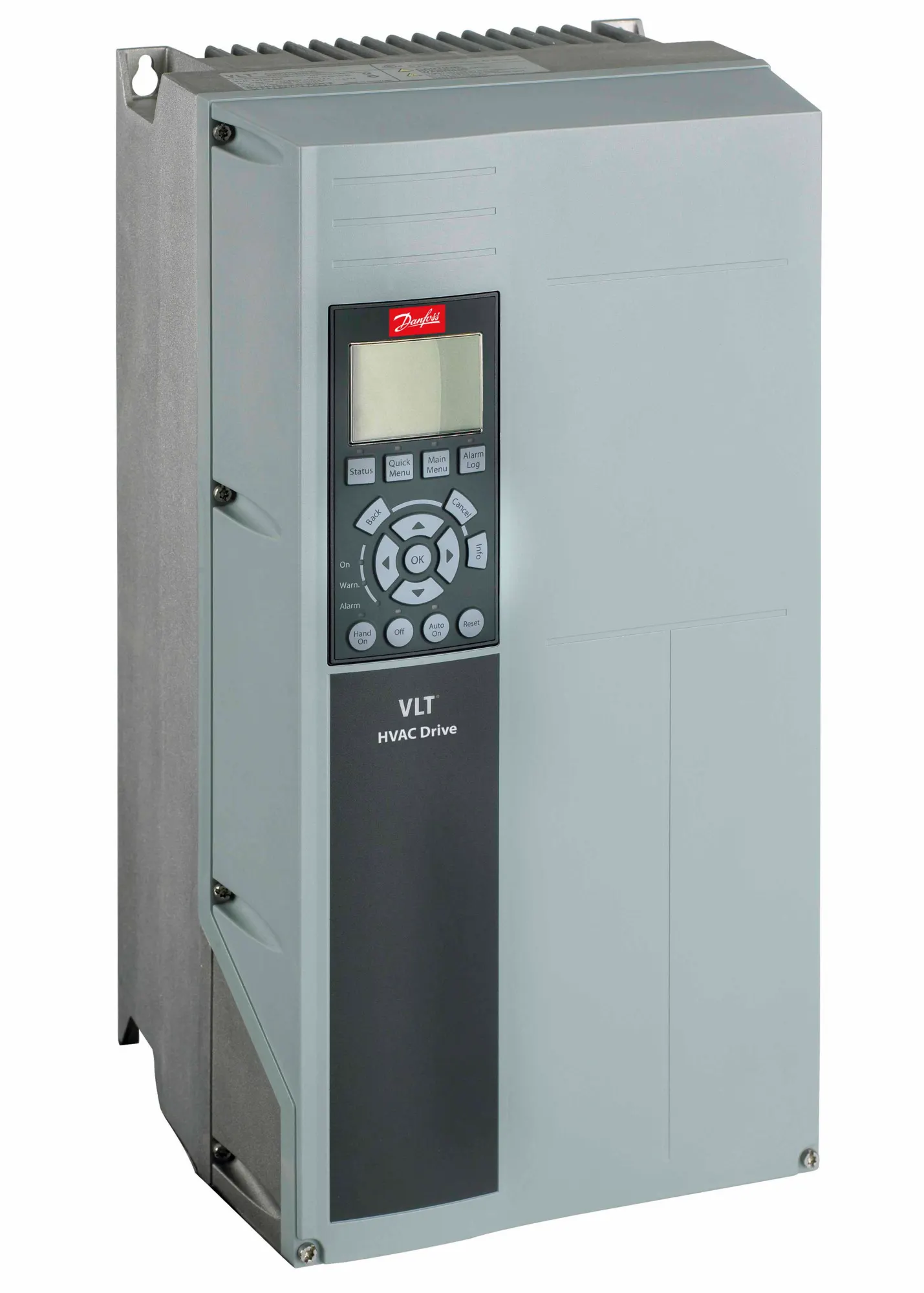

135X3557 Danfoss: Frequency ConverterFC-102P1K5T4E55H1XGXXXXSXXXXAQBXCXXXXD0VLT=C2=AE HVAC Drive FC-102(P1K5) 1.5 KW / 2.0 HP, Three phase380 - 480 VAC, IP55 / Type 12(H1) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: A5No C1 option, MCB-107 24V DC backupModbus TCP MCA 122, No B OptionOther options according to Model Code
Gross weight
12.6 kg
Net weight
12.3 kg
Volume
52.36 l
EAN
5710108398606
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P1K5 : (P1K5) 1.5 KW / 2.0 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E55 : IP55 / Type 12
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AQ : Modbus TCP MCA 122
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
A5 : A5
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P1K5T4E55H1XGX
Typecode Part 2
XXXSXXXXAQBXCXXXXD0
Power 110% (NO) [KW]
1.5
Height [mm]
420,0
Width w/ no C options [mm]
242,0
Depth [mm]
200,0
Depth with Option A/B [mm]
200,0
kVA
2.84
Power Loss NO [W]
62
Continuous Current (NO) [A]
4.1
Intermittent Current (NO) [A]
4.51
Calculated Gross Weight [kg]
12.9
Calculated Net Weight [kg]
12.6
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P1K5T4E55H1XGX
Modelcode02
XXXSXXXXAQBXCXXXXD0
130B4598
Weather shield f. outdoor instl A4 to B2
130B7532
Mounting Kit f. C Option, A5
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1028
Panel Through Mounting Kit, A5
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1125
VLT=C2=AE General Purpose I/O MCB 101,unctd
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130B1117
LCP Mounting Kit, w/ no LCP
