135X4262
Part Number: 135X4262
Product Information
Extended Description

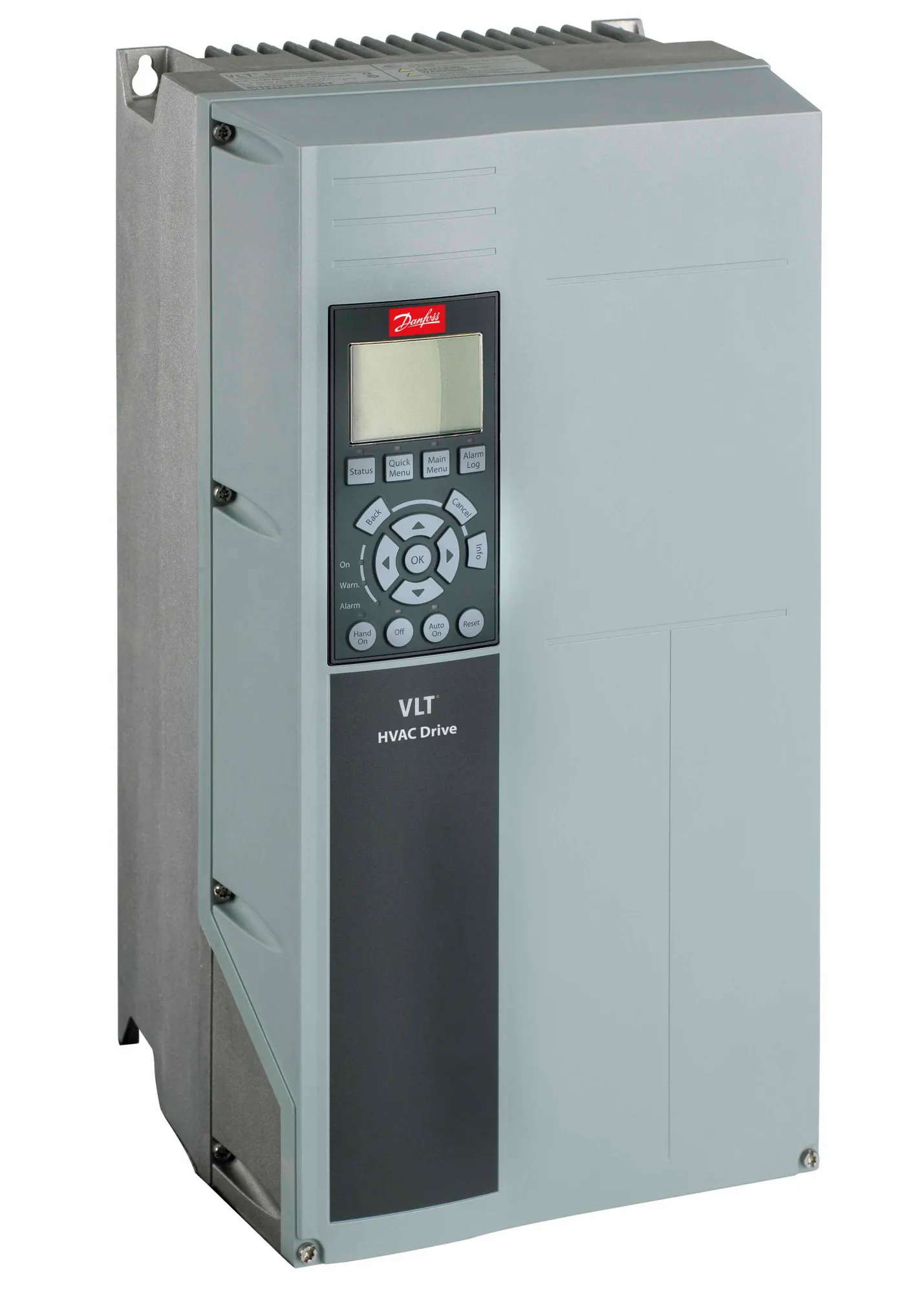

135X4262 Danfoss: Frequency ConverterFC-102P7K5T4E55H1TGXXOXSXXXXALBXCXXXXD0VLT=C2=AE HVAC Drive FC-102(P7K5) 7.5 KW / 10 HP, Three phase380 - 480 VAC, IP55 / Type 12(H1) RFI Class A1/B (C1)Safe StopGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: A5No C1 option, MCB-107 24V DC backupPROFINET MCA 120, No B OptionOther options according to Model Code
Gross weight
14.32 kg
Net weight
13.67 kg
Volume
52.36 l
EAN
5710108405441
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P7K5 : (P7K5) 7.5 KW / 10 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E55 : IP55 / Type 12
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
O : Metric thread cable entry
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
A5 : A5
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P7K5T4E55H1TGX
Typecode Part 2
XOXSXXXXALBXCXXXXD0
Power 110% (NO) [KW]
7.5
Height [mm]
420,0
Width w/ no C options [mm]
242,0
Depth [mm]
200,0
Depth with Option A/B [mm]
200,0
kVA
11.1
Power Loss NO [W]
255
Continuous Current (NO) [A]
16
Intermittent Current (NO) [A]
17.6
Calculated Gross Weight [kg]
14.6
Calculated Net Weight [kg]
14.3
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P7K5T4E55H1TGX
Modelcode02
XOXSXXXXALBXCXXXXD0
130B4598
Weather shield f. outdoor instl A4 to B2
130B7532
Mounting Kit f. C Option, A5
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1028
Panel Through Mounting Kit, A5
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1125
VLT=C2=AE General Purpose I/O MCB 101,unctd
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130B1117
LCP Mounting Kit, w/ no LCP
131F3242
FC-102P7K5T4E55H1UGCXXXSXXXXAXBXCXXXXDX
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
