Part Number: 135X7533
Product Information
Extended Description

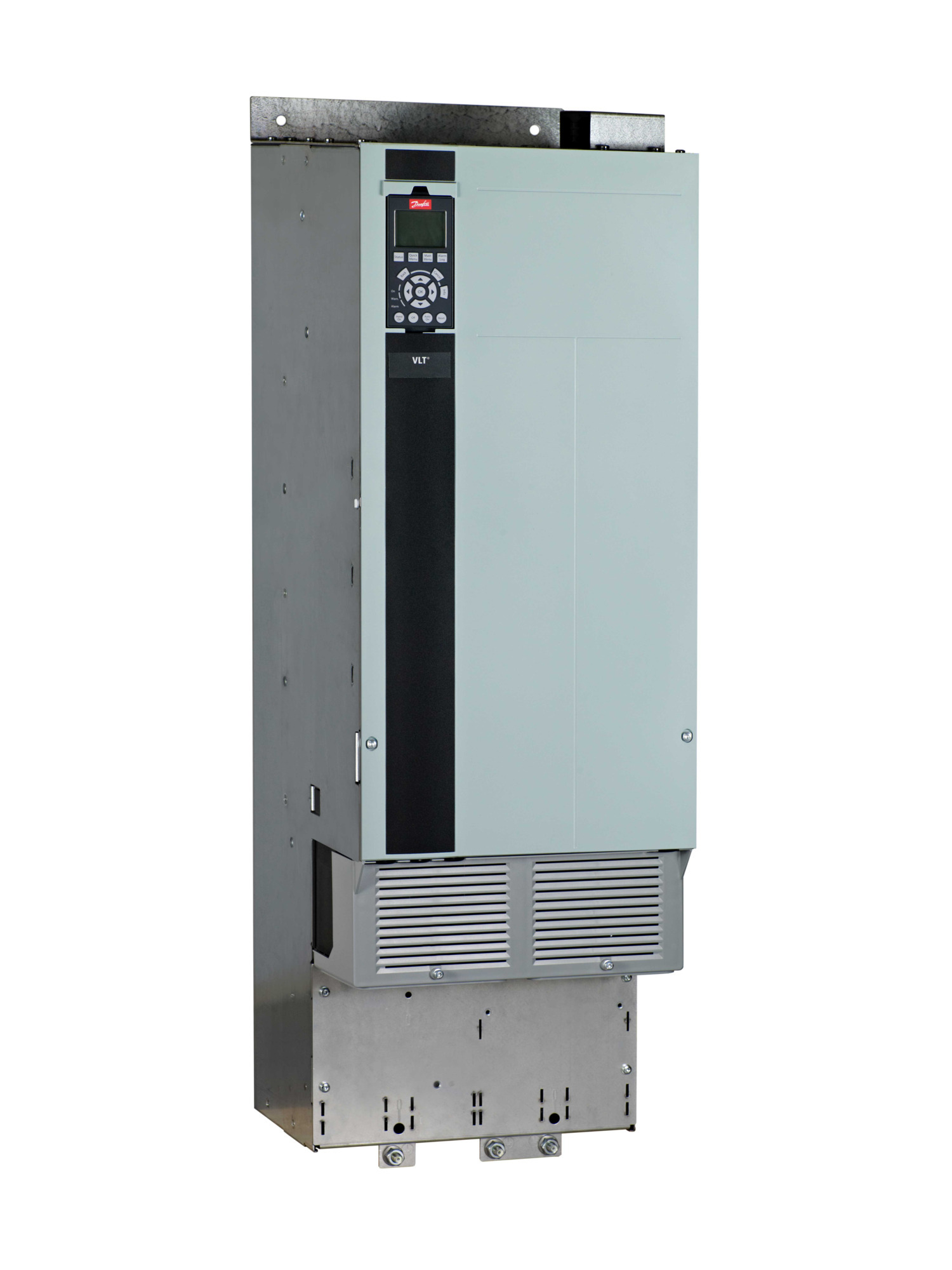

135X7533 Danfoss: Frequency ConverterFC-102N132T4E20H2TGC7XXSXXXXAXBPCXXXXDXVLT=C2=AE HVAC Drive FC-102(N132) 132 KW / 200 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI FilterSafe StopGraphical Loc. Cont. PanelCoated PCB, FuseLatest release std. SW.Frame: D3HNo C1 option, No D optionNo A Option, MCB-105 Relay CardOther options according to Model Code
Gross weight
62.3 kg
Net weight
62 kg
Volume
0 l
EAN
5710108438456
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N132 : (N132) 132 KW / 200 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
7 : Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BP : MCB-105 Relay Card
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D3H : D3H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102N132T4E20H2TGC
Typecode Part 2
7XXSXXXXAXBPCXXXXDX
Power 110% (NO) [KW]
132
Height [mm]
909,0
Height w/ Regen/Loadshare [mm]
1004,0
Width w/ no C options [mm]
250,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
180
Power Loss NO [W]
2949
Continuous Current (NO) [A]
260
Intermittent Current (NO) [A]
286
Calculated Gross Weight [kg]
62.3
Calculated Net Weight [kg]
62
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N132T4E20H2TGC
Modelcode02
7XXSXXXXAXBPCXXXXDX
Recommended Plant
ERR01
176F3627
Cooling Kit, in btm/ out top, 1800, D3h
176F3625
Cooling Kit, in back/ out back, D3h
176F3633
Cooling Kit, in back/out back, D3h
176F3629
Cooling Kit, in btm/out top, 2000mm, D3h
176F3409
Adapter Plate, D1h/D3h
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1202
VLT=C2=AE DeviceNet MCA 104, coated
Encoder-less Safety using DOLD Module
Fire Emergency Mode
VLT drives with integrated CBM
VLT HVAC Drive Applications Note
VLT=C2=AE Drives Motor overload protection
VLT HVAC Drive FC 102 Selection Guide
VLT=C2=AE Advanced Harmonic Filter AHF005-010
VLT=C2=AE FC Series Output Filter Design G.
VLT=C2=AE HVAC Drive FC 102 1.1-90 kW
VLT=C2=AE HVAC Drive FC 102 110=E2=80=93800 kW D and E
Danfoss MD 00779152 B2
SASO KSA R-205899
UL E236048
UL E70524
PSL File Danfoss-24899b
PSL-File Danfoss-24800
Danfoss EU-UK 00730213 A7
Danfoss EU-UK 00730297 A6
Danfoss EU-UK 00730657 A4
Danfoss EU-UK 00738283 A5
VLT_D3h_IP20
130B1107_E-plan
130B1210-Eplan
Wiring Schematic FC 110-400 kW D-frame
Remote_LCP_holder
130B2444_Eplan
130B1117_Eplan
130B1110_Eplan
MCAD FC D3h 177r0339
VLT=C2=AE Drives EtherNet/IP EDS
VLT=C2=AE HVAC Drive Support File
VLT=C2=AE HVAC Drive Simulator
VLT=C2=AE EtherNet/IP Add-on Instructions
VLT=C2=AE HVAC Drive FC 102 LNS Plug-in
VLT=C2=AE HVAC Drive FC 102 LonWorks
VLT=C2=AE Drives DeviceNet EDS
VLT=C2=AE MCA101 PROFIBUS GSD
VLT=C2=AE MCA120 PROFINET GSDML
VLT=C2=AE Drives PROFIBUS PCA Block
