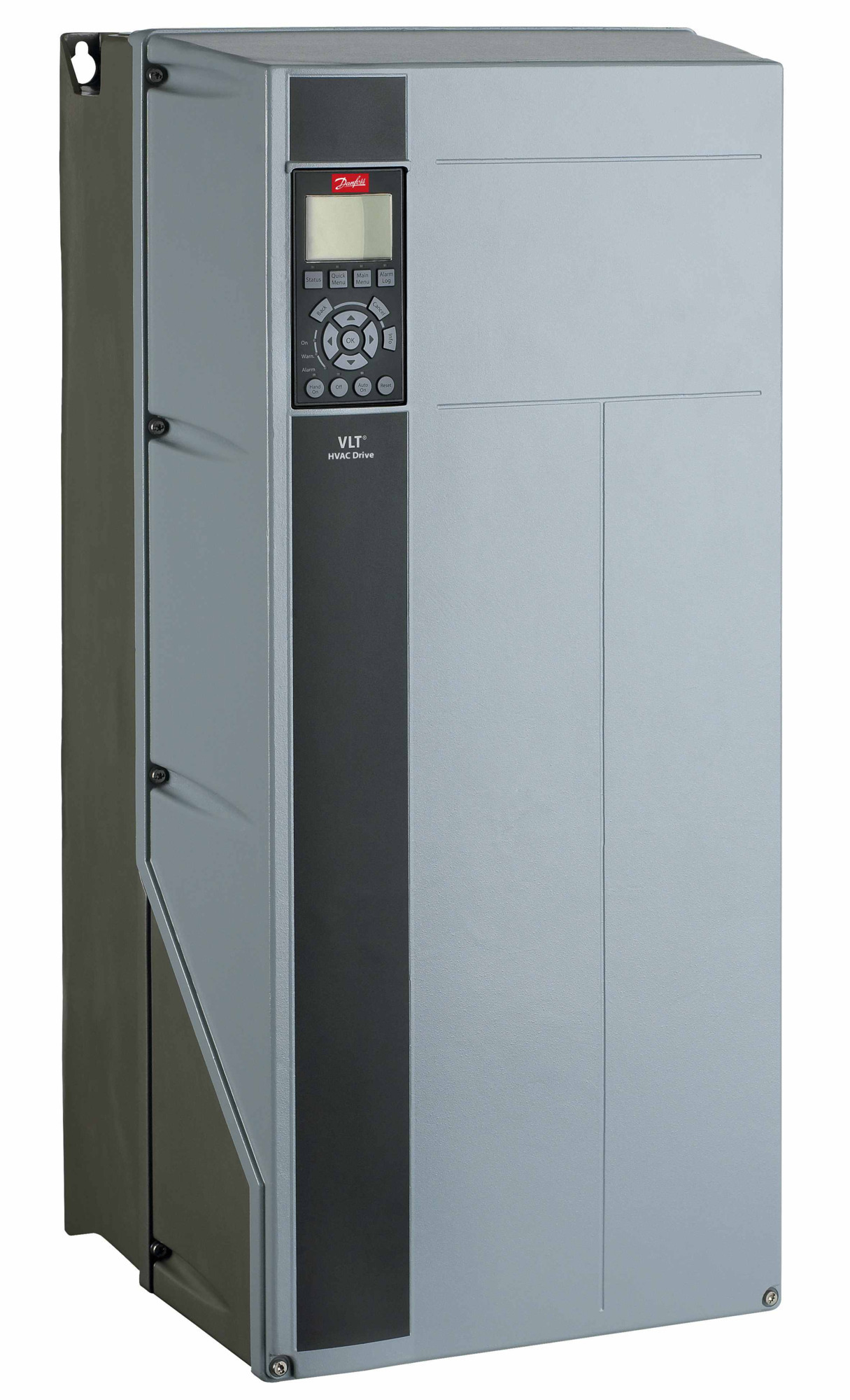

136F1533
Part Number: 136F1533
Product Information
Extended Description
136F1533 Danfoss: Frequency ConverterFC-102P45KT2P55H5TGCXXXSXXXXAXBKCXXXXDXVLT=C2=AE HVAC Drive FC-102(P45K) 45 KW / 60 HP, Three phase200 - 240 VAC, IP55 / Type12 BackplateMarine,ruggedis RFI A2(C3)Safe StopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: C2No C1 option, No D optionNo A Option, MCB-101 General purp. I/OOther options according to Model Code
Gross weight
43.5 kg
Net weight
43.2 kg
Volume
228.095 l
EAN
5710108479183
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P45K : (P45K) 45 KW / 60 HP
Phase
T : Three phase
Mains Voltage
2 : 200 - 240 VAC
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
H5 : Marine,ruggedis RFI A2(C3)
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BK : MCB-101 General purp. I/O
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C2 : C2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P45KT2P55H5TGC
Typecode Part 2
XXXSXXXXAXBKCXXXXDX
Power 110% (NO) [KW]
45
Height [mm]
770,0
Width w/ no C options [mm]
370,0
Depth [mm]
335,0
Depth with Option A/B [mm]
335,0
kVA
61.2
Power Loss NO [W]
1636
Continuous Current (NO) [A]
170
Intermittent Current (NO) [A]
187
Calculated Gross Weight [kg]
63.9
Calculated Net Weight [kg]
63.6
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P45KT2P55H5TGC
Modelcode02
XXXSXXXXAXBKCXXXXDX
130B4597
Weather shield f. outdoor instl. C1, C2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1202
VLT=C2=AE DeviceNet MCA 104, coated
130B1200
VLT=C2=AE Profibus DP V1 MCA 101, coated
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
