Part Number: 136F8154
136F8154
Manufacturer
Danfoss
Part number
136F8154
Category

Product Information

Extended Description

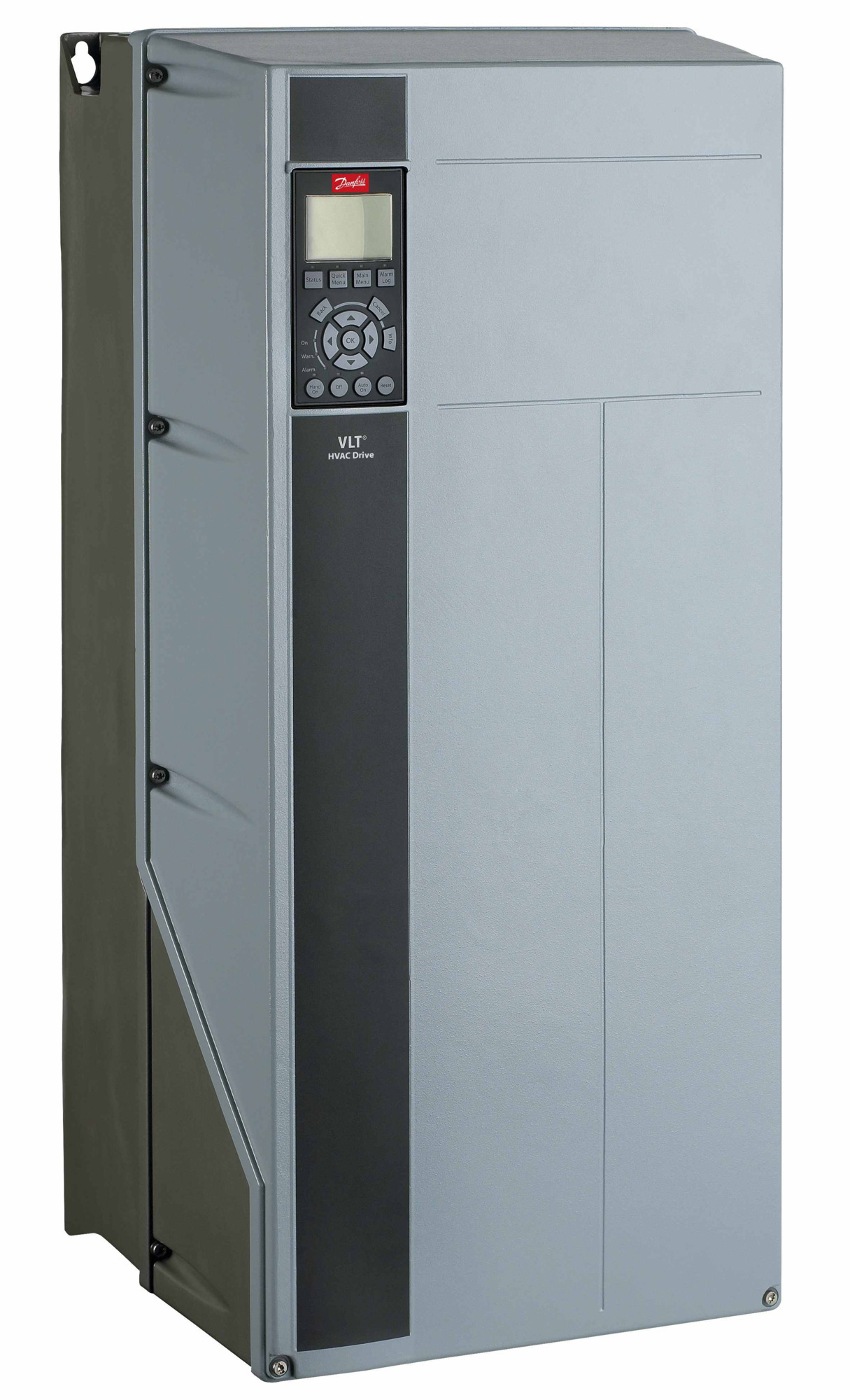

136F8154 Danfoss: Frequency ConverterFC-102P75KT4E55H1TGCXXXSXXXXA0BKCXXXXD0VLT=C2=AE HVAC Drive FC-102(P75K) 75 KW / 100 HP, Three phase380 - 480 VAC, IP55 / Type 12(H1) RFI Class A1/B (C1)Safe StopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: C2No C1 option, MCB-107 24V DC backupPROFIBUS DP MCA 101, MCB-101 General purp. I/OOther options according to Model Code
Gross weight
60.5 kg
Net weight
60.2 kg
Volume
228.095 l
EAN
5710108545857
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P75K : (P75K) 75 KW / 100 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E55 : IP55 / Type 12
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
A0 : PROFIBUS DP MCA 101
B Option
BK : MCB-101 General purp. I/O
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
C2 : C2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P75KT4E55H1TGC
Typecode Part 2
XXXSXXXXA0BKCXXXXD0
Power 110% (NO) [KW]
75
Height [mm]
770,0
Width w/ no C options [mm]
370,0
Depth [mm]
335,0
Depth with Option A/B [mm]
335,0
kVA
102
Power Loss NO [W]
1384
Continuous Current (NO) [A]
147
Intermittent Current (NO) [A]
162
Calculated Gross Weight [kg]
61.3
Calculated Net Weight [kg]
61
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P75KT4E55H1TGC
Modelcode02
XXXSXXXXA0BKCXXXXD0
130B4597
Weather shield f. outdoor instl. C1, C2
130B3911
Back plate IP21/Type 1, IP55/Type 12, C2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130B1117
LCP Mounting Kit, w/ no LCP
130B1156
USB extension Cable, 650mm
131H3164
FC-102P90KT4E55H1UGCXXXSXXXXAXBXCXXXXDX
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
