136G2526
Part Number: 136G2526
Product Information
Extended Description

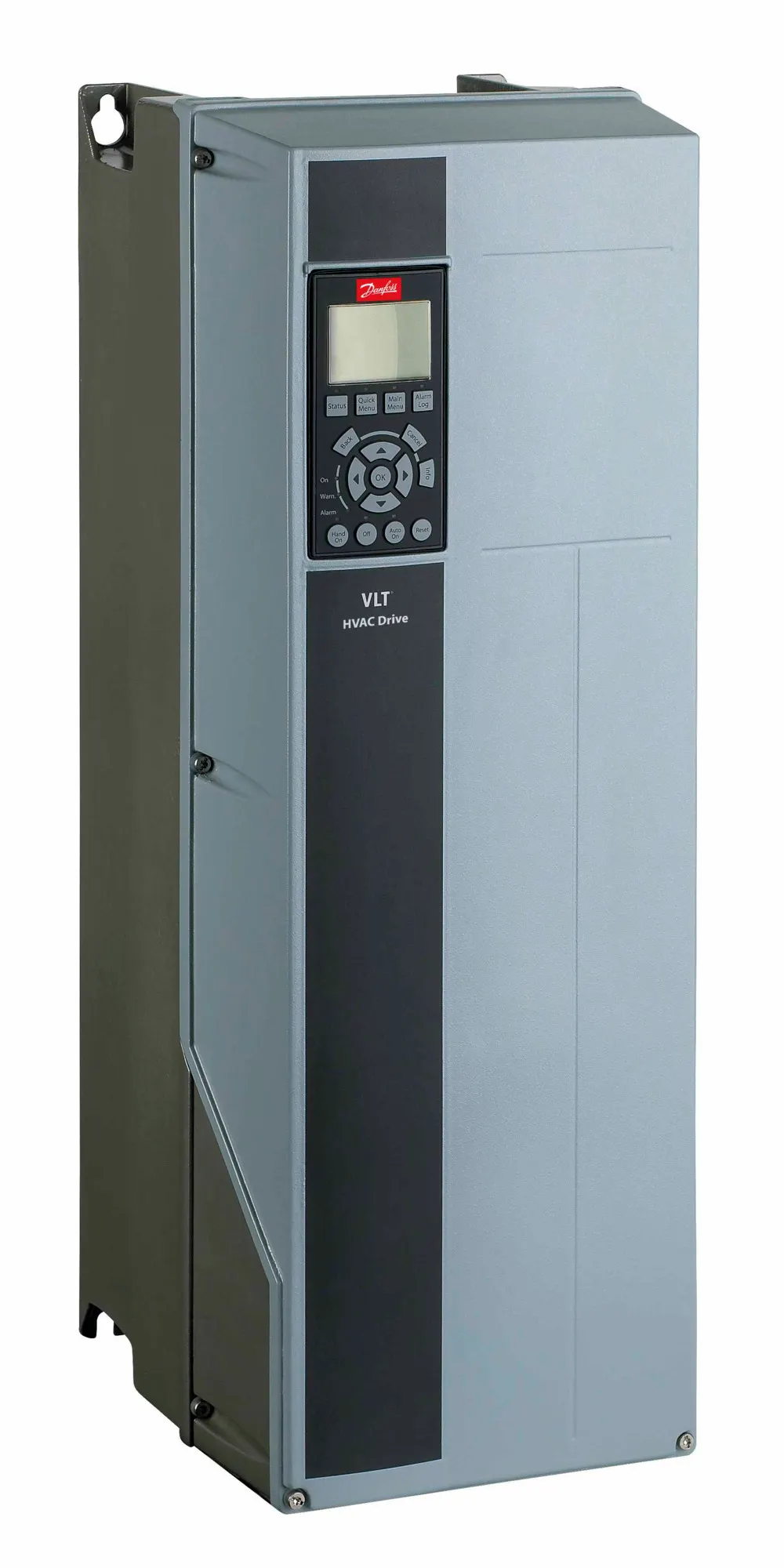

136G2526 Danfoss: Frequency ConverterFC-102P22KT4E21H2XGC7XXSXXXXAXBXCXXXXD0VLT=C2=AE HVAC Drive FC-102(P22K) 22 KW / 30 HP, Three phase380 - 480 VAC, IP21 / Type 1RFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, FuseLatest release std. SW.Frame: B2No C1 option, MCB-107 24V DC backupNo A Option, No B OptionOther options according to Model Code
Gross weight
28.3 kg
Net weight
28 kg
Volume
0 l
EAN
5710108589714
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P22K : (P22K) 22 KW / 30 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E21 : IP21 / Type 1
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
7 : Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
B2 : B2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P22KT4E21H2XGC
Typecode Part 2
7XXSXXXXAXBXCXXXXD0
Power 110% (NO) [KW]
22
Height [mm]
650,0
Width w/ no C options [mm]
242,0
Depth [mm]
260,0
Depth with Option A/B [mm]
260,0
kVA
30.5
Power Loss NO [W]
525
Continuous Current (NO) [A]
44
Intermittent Current (NO) [A]
48.4
Calculated Gross Weight [kg]
29
Calculated Net Weight [kg]
28.7
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P22KT4E21H2XGC
Modelcode02
7XXSXXXXAXBXCXXXXD0
130B3397
Back plate IP21/Type 1, IP55/Type 12, B2
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130B1212
VLT=C2=AE General Purpose I/O MCB 101, ctd
