136G4449

136G4449
Manufacturer
Danfoss
Part number
136G4449
Category

Product Information

Extended Description

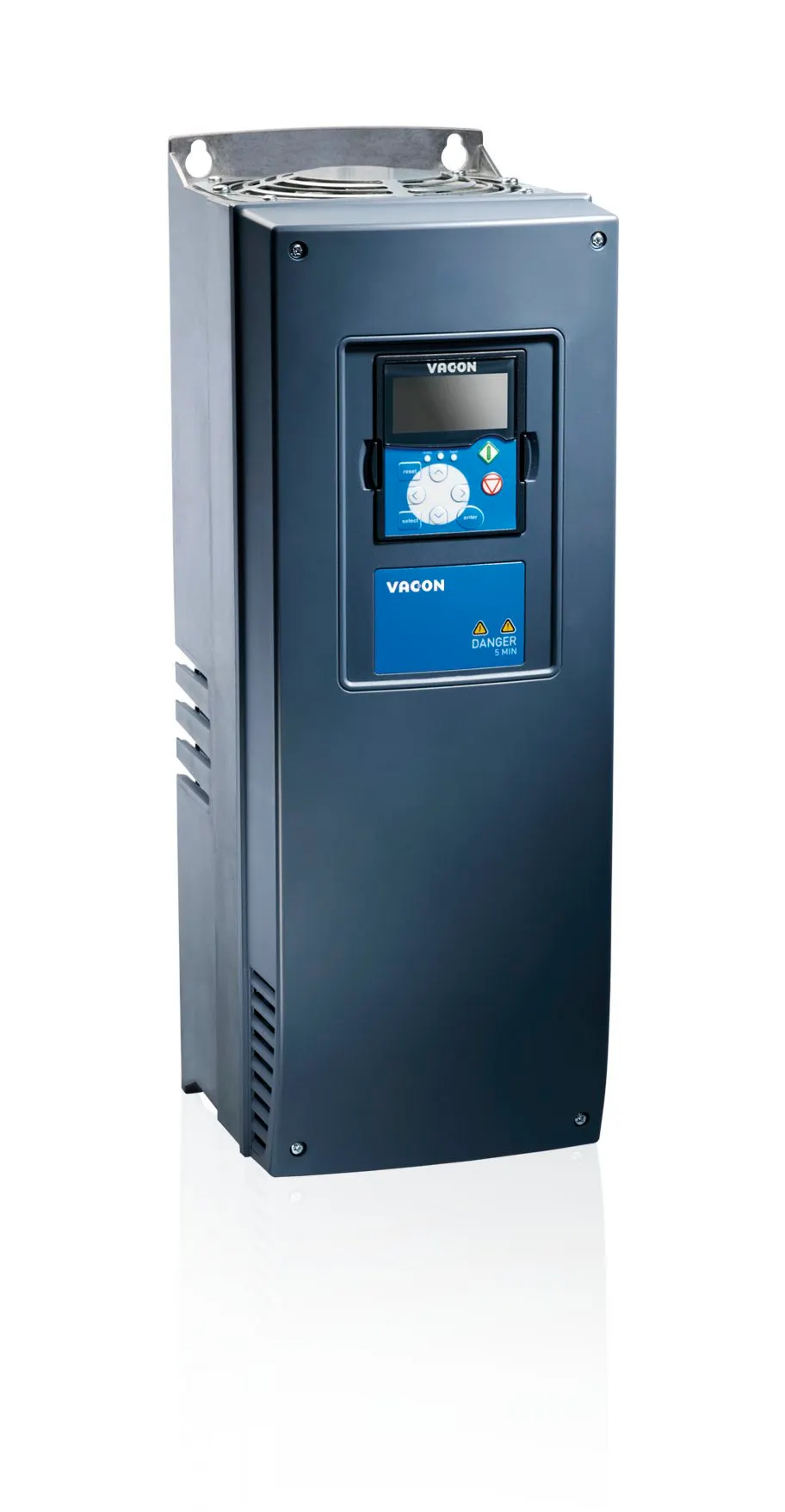

136G4449 Danfoss: NXP00385-A5T1SSV-A1A2000000+DPAP+DLFRVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 38 Amp,IP54/NEMA12Alpha-numeric displayIEC61800-3 for IT networksIntegrated Brake chopperA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: No boardManual: FrenchFrame 06Other options according to Model code
Gross weight
19.5 kg
Net weight
18.5 kg
Volume
0 l
EAN
5710108609023
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0038 : 38 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
5 : IP54/NEMA12
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
S : 6-pulse with choke
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLC : Inch conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLFR : French
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR06 : Frame 06
Power rating
18K : 18.5 kW/25 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-003855
Typecode Part 2
-000012050
Salestext
FR0600385-5T
Modelcode01
NXP00385-A5T1SSV-
Modelcode02
A1A2000000
Modelcode05
+DPAP+DLFR
Calculated Net Weight [kg]
18.5
Calculated Gross Weight [kg]
19.5
Motor Power Low Overload [kW]
18.5
Motor Power High Overload [kW]
15
Dimensions WxHxD [mm]
195X519X237
Continuous Current (NO) [A]
38
Continuous Current (HO) [A]
31
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-003855-1171WG
Stock Code
7DP-003855
check if complete
OK
Calculated Net Weight
18.5
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
