136G5742
Part Number: 136G5742
Product Information
Extended Description

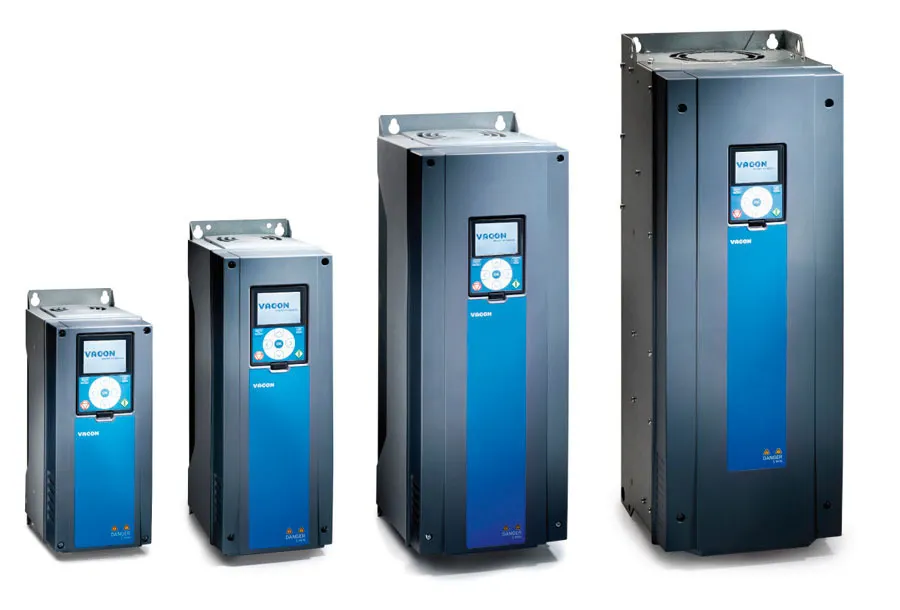

136G5742 Danfoss: Frequency converterVACON0100-3L-0416-7-ED-FLOW+SDE5+SEBJ+DNOT+CIFD+PODU+CHPH+GNULVACON 100 FLOW525-690 Vac, 416 Amp, IP21/NEMA1Graphical Keypad MK01C3 Commercial&Industry EnvironB Slot: F3,3 Relay boardC Slot: No boardD Slot: E5,PROFIBUS DP with Sub-D9Fieldbus: Std protocol,Modbus,N2,BacNetManual: EnglishFrame 10E Slot: BJ,STO, ATEX thermATEX: II (2) GDOther options according to Model code
Gross weight
415.3 kg
Net weight
414.3 kg
Volume
0 l
EAN
5710108621995
Product View (Switch)
GLBL : Global (Standard)
Segment
-FLOW : VACON 100 FLOW
Region Code
-R00 : R00 International
Mains voltage
-7 : 525-690 Vac
Current rating
-0416 : 416 Amp
Installation options
-ED : ED Enclosed Drive
Enclosure
+IP21 : IP21/NEMA1
Control panel
+HMGR : Graphical Keypad MK01
EMC emission limit category
+EMC3 : C3 Commercial&Industry Environ
Common mode filter (for DM)
+P000 : No Option
DUT filter (for DM)
+P000 : No Option
Brake chopper
+DBNO : No dynamic braking device
Real time clock option
+SRNO : No Battery for real time clock
Configurable power range
NONE : None
Power connections
+P000 : No Power options (+P000)
Cable entry
+Q000 : No option
Additional Equipment B
+Q000 : No option for Qxxx_B (+Q000)
Additonal Equipment C
+Q000 : No additonal option for Qxxx_C
Shipping package
+GSWP : Wooden box as shipping pack
Marine construction
+E000 : no option
B-Slot Option Board
+SBF3 : F3,3 Relay board
C- Slot Option Board
+SC00 : No board
D-Slot Option Board
+SDE5 : E5,PROFIBUS DP with Sub-D9
E-Slot Option Board
+SEBJ : BJ,STO, ATEX therm
Internal FB selection
+FBM1 : Std protocol,Modbus,N2,BacNet
Documentation level
+DNOT : No Manuals
Document language preference
+DLUK : English
Firmware Language Pack
+FL01 : UK, DE, FI, SE, IT, FR lang
Application
+A0000 : No Application
Parameter Set
+L0000 : No application parameter set
Motor parameter default freq
+LS50 : 50 Hz def motor freq settings
Unit for measure for display
+LSSI : Metric Units of Measure
Labeling options
+LPC1 : no additional labels
UL approval
+GNUL : No Ul Approval (+GNUL)
Marine approval
NONE : None
RCM Approval
+GACT : RCM Approval N16307
KC approval
+GAKC : KC Approval
Ukrainian approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Auxilary power supply
+C000 : no option
DC power supply for aux device
+C000 : no option
AC socket for aux devices
+C000 : no option
Input Devices
+CIFD : (+CIFD) Fuse Switch
Common mode filter (for ED)
+P000 : no option
DU/DT, Sine filter (for ED)
+PODU : dU/dt filter
Terminal Options
+CTIO : I/O Terminals
Door Equipments
+C000 : no option
Cabinet heater
+C000 : no option
Cabinet light
+C000 : no option
Motor heater control
+C000 : no option
Emergency stop options
+C000 : no option
Insulation fault sensor
+C000 : no option
Cabling from top
+C000 : no option
Back channel cooling
+C000 : no option
Cabinet Plinth
+CHPH : Base plint 200 mm
Empty extension segment
NONE : None
Standardized cabinet solution
NONE : None
Engineered cabinet solution
NONE : None
Product Group
VACON : VACON
Product Series
0100 : Vacon 100 series
Phase
-3L : 3 Phase AC Input
Customized
+BM2H : Vacon 100-FLOW
Main Circuit
+M000 : NONE
Firmware
+F0159 : Vacon0100-Flow Software pack
Max output frequency
NONE : None
Terminal Box
+T000 : NONE
Bypass Control Operation Mode
NONE : none_
Bypass Input Type
NONE : none_
Bypass power connection type
NONE : none_
CE approval
+GACE : CE Approval (+GACE)
ATEX Approval
NONE : None
County Specific Approval
NONE : None
Warrenty time
+WT01 : Warranty 12/18 months (+WT01)
Frame Size
MR10 : Frame 10
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0416-7
Modelcode02
-ED-FLOW+SDE5+SEBJ+DNOT
Modelcode03
+CIFD+PODU+CHPH+GNUL
Calculated Net Weight [kg]
409.9
Calculated Gross Weight [kg]
410.9
Motor Power Low Overload [kW]
400
Dimensions WxHxD [mm]
606X2100X600
Continuous Current (NO) [A]
416
Motor Power HP Low Overload
450
ATEX Marking 1
ATEX: II (2) GD
Typecode Part 1
70-AB3L04167C10B230BM2H
Typecode Part 2
-00114274
Stockcode part 1
70-AB3L04167C10B230BM2H
Stockcode part 2
-00114274
check if complete
OK
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Help Counter
25
Calculated Net Weight
414.3
Salestext
MR10-0416-7+IP21+EMC3
Sub family identification
NONE : Normal customer ordered
Recommended Plant
ERR01
ECCN US
3A999.a
ECCN EU
X.A.I.003
181B2105
Accessories bag MR10 module
181B2231
Fuse 800A 690VAC size 3 aR
181B1961
Input fuse plain blade 700A aR 690VAC si
181B1959
Fuse 1000A 900VAC
181B1950
Aux power supply 24VDC 60W
181B1949
Pre-charging resistor 47R 2pcs
181B1935
Fuse plain blade 500A aR 690VAC size 2
181B1981
Main fan assembly MR10 with 2 fan
181B1101
DC-link cap. 700uF 800V
181B1100
Terminal connector kit Vacon100
181B0586
OPT-E7-V:DeviceNet
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1472
OPT-B2-V+DLES:1RO(NO/NC),1RO(NO),therm
181B1473
OPT-B4-V+DLES:AI,2AO(mA,isol),+24V/EXT
181B1481
OPT-B1-V+DNOT:6 programmableDI/DO
181B1738
OPT-B4-V+DLFR:AI,2AO(mA,isol),+24V/EXT
181B2134
OPT-B2-V+DLDE:1RO(NO/NC),1RO(NO),therm
181B2151
OPT-B2-V+DNOT:1RO(NO/NC),1RO(NO),therm
181B2152
OPT-B4-V+DNOT:AI,2AO(mA,isol),+24V/EXT
130R1167
DrivePro ExWarr Work Shop PG07 66 Month
130R1162
DrivePro ExWarr Work Shop PG07 36 Month
130R1164
DrivePro ExWarr Work Shop PG07 48 Month
130R1163
DrivePro ExWarr Work Shop PG07 42 Month
130R1165
DrivePro ExWarr Work Shop PG07 54 Month
130R1166
DrivePro ExWarr Work Shop PG07 60 Month
130R1168
DrivePro ExWarr Work Shop PG07 72 Month
130R1160
DrivePro ExWarr Work Shop PG07 24 Month
130R1161
DrivePro ExWarr Work Shop PG07 30 Month
130R1068
DrivePro ExWarr Onsite PG07 72 Months
