136G7414

Part Number: 136G7414
136G7414
Manufacturer
Danfoss
Part number
136G7414
Category

Product Information

Extended Description

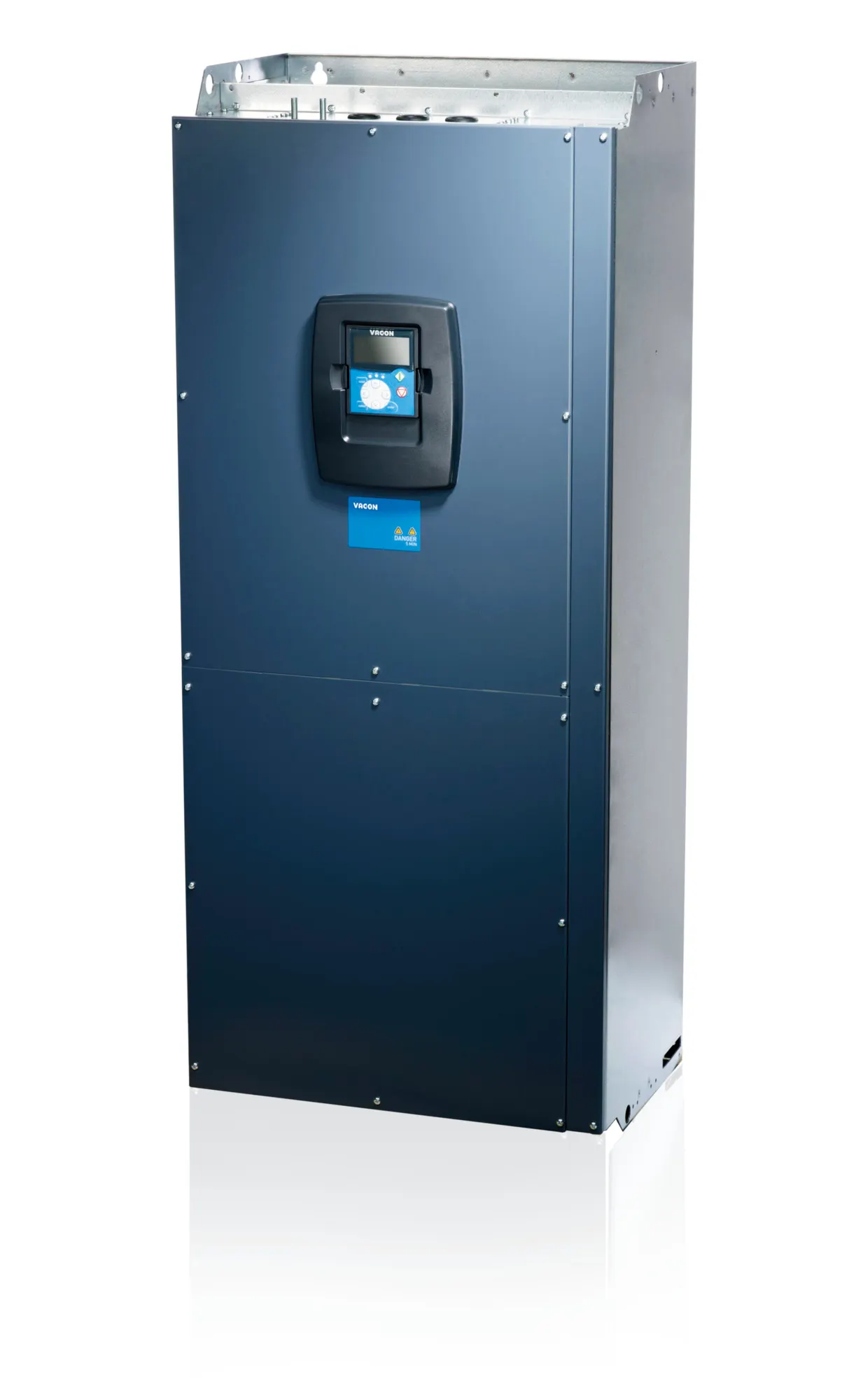

136G7414 Danfoss: NXP03005-G2H1SSG-A9A2BCBH00+FL24+DPAPVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 300 Amp,IP21/NEMA1Graphical panelIEC61800-3Integrated Brake chopperA Slot: OPTA1 with 2,5mm2 conn.B Slot: 2RO(NO/NC)C Slot: Resolver 3xDO wide rangeD Slot: 3 temp meas channelsE Slot: No boardManual: EnglishFrame 09Other options according to Model code
Gross weight
147 kg
Net weight
146 kg
Volume
0 l
EAN
5710108638986
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0300 : 300 Amp
Control Keypad
G : Graphical panel
Enclosure
2 : IP21/NEMA1
EMC emission levels
H : IEC61800-3
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
S : 6-pulse with choke
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLC : Inch conduit plate
Option Slot A
A9 : OPTA1 with 2,5mm2 conn.
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
BC : Resolver 3xDO wide range
Option Slot D
BH : 3 temp meas channels
Option Slot E
00 : No board
Firmware language package
+FL24 : UK,EE,PL,CZ,DE;CentEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR09 : Frame 09
Power rating
160 : 160 kW/250 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-030052
Typecode Part 2
-000029279
Salestext
FR0903005-2H
Modelcode01
NXP03005-G2H1SSG-
Modelcode02
A9A2BCBH00
Modelcode03
+FL24
Modelcode05
+DPAP
Calculated Net Weight [kg]
146
Calculated Gross Weight [kg]
147
Motor Power Low Overload [kW]
160
Motor Power High Overload [kW]
132
Dimensions WxHxD [mm]
480X1150X362
Continuous Current (NO) [A]
300
Continuous Current (HO) [A]
245
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-030052-1173AZ
Stock Code
7DP-030052
check if complete
OK
Calculated Net Weight
146
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1325
DriveProStart-UP ctrl. IFT test medium
130R1322
DrivePro Start-Up special applic. medium
130R1315
DrivePro Start-Up 1 day on-demand medium
130R1314
DrivePro Start-Up 1 day pre-order medium
130R1306
DrivePro Start-Up unit on-demand medium
130R1305
DrivePro Start-Up unit pre-order medium
136L2128
7DP-030055-000009156
130R1382
DrivePro Start-Up =C2=BD day pre-order medi
130R1383
DrivePro Start-Up =C2=BD day on-demand medi
