136H2290

Part Number: 136H2290
136H2290
Manufacturer
Danfoss
Part number
136H2290
Category

Product Information

Extended Description

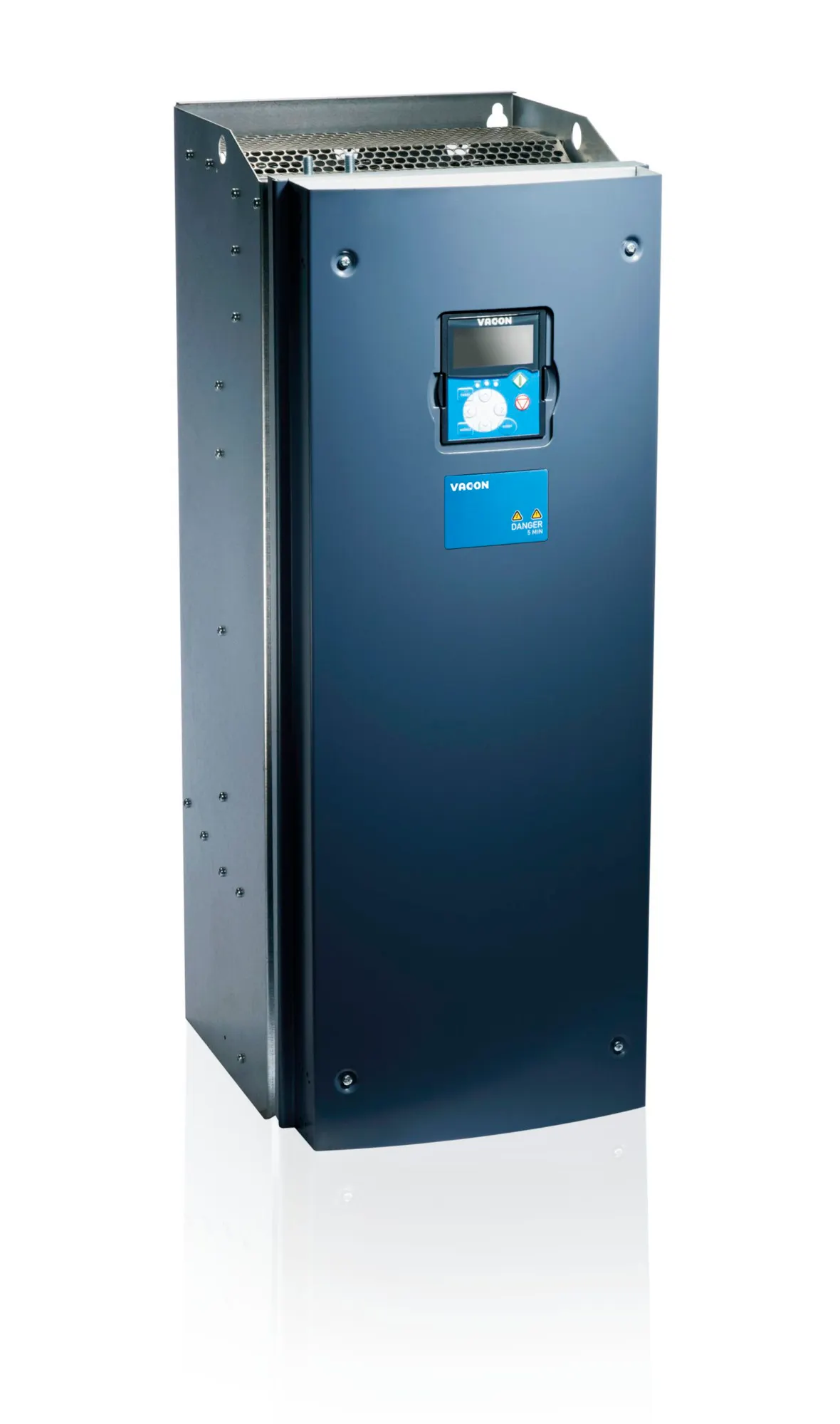

136H2290 Danfoss: NXP02052-A5H0SSV-A1A2000000+QGLM+DPAP+DLIT+EMARVacon NXP Frequency Converter230 Vac, 205 Amp,IP54/NEMA12Alpha-numeric displayIEC61800-3No BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: No boardManual: ItalianFrame 08Other options according to Model code
Gross weight
59 kg
Net weight
58 kg
Volume
0 l
EAN
5710108687922
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
2- : 230 Vac
Current
0205 : 205 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
5 : IP54/NEMA12
EMC emission levels
H : IEC61800-3
Brake Chopper
0 : No Brake
Electrical Modification
S : 6-pulse with choke
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLM : Metric conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLIT : Italian
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+EMAR : Marine Approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR08 : Frame 08
Power rating
55K : 55 kW/75 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-020525
Typecode Part 2
-000022901
Salestext
FR0802052-5H
Modelcode01
NXP02052-A5H0SSV-
Modelcode02
A1A2000000+QGLM
Modelcode05
+DPAP+DLIT+EMAR
Calculated Net Weight [kg]
58
Calculated Gross Weight [kg]
59
Motor Power Low Overload [kW]
55
Motor Power High Overload [kW]
45
Dimensions WxHxD [mm]
288X758X344
Continuous Current (NO) [A]
205
Continuous Current (HO) [A]
170
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-020525-11763W
Stock Code
7DP-020525
check if complete
OK
Calculated Net Weight
58
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
