136H2329

Part Number: 136H2329
136H2329
Manufacturer
Danfoss
Part number
136H2329
Category

Product Information

Extended Description

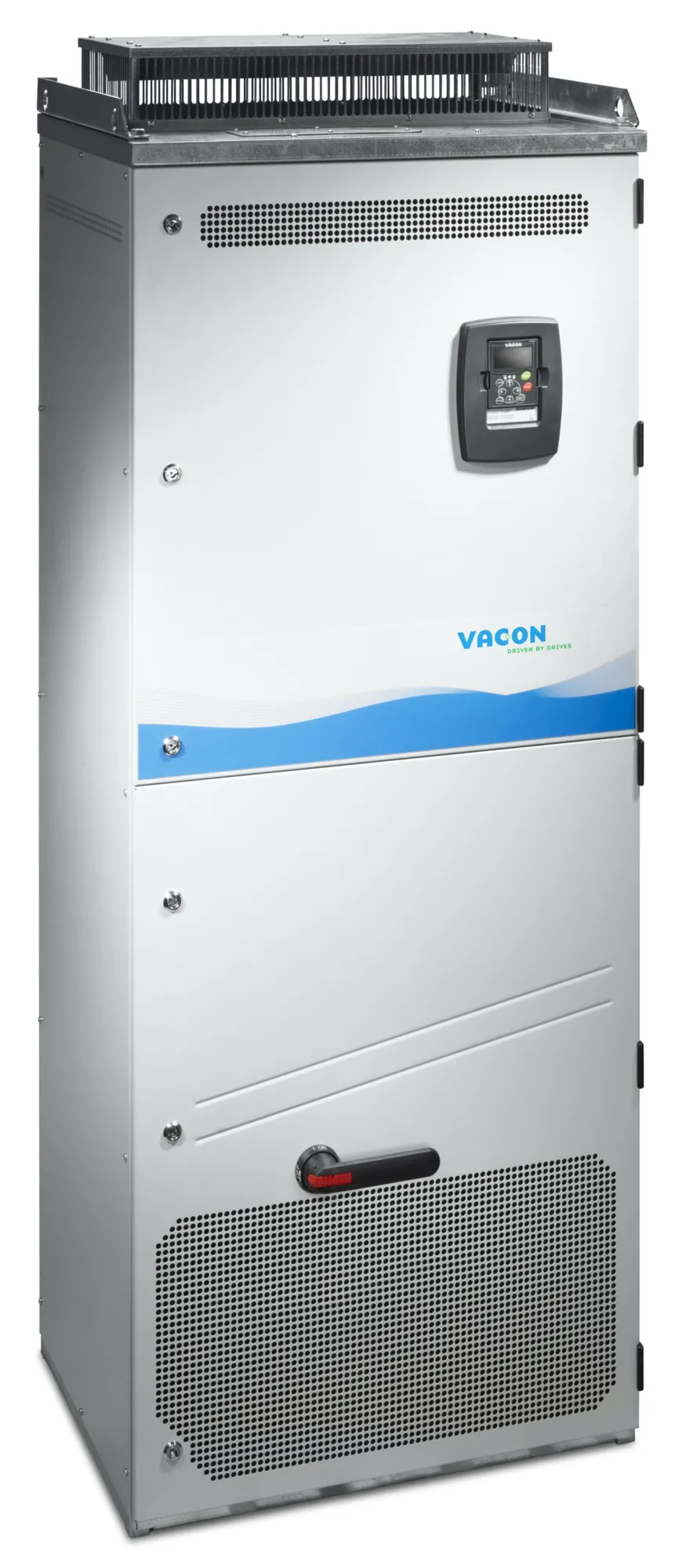

136H2329 Danfoss: NXP07305-G2L0SSB-A1B4000000+FL26+DPAP+DLCNVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 730 Amp,IP21/NEMA1Graphical panelIEC61800-3, 2. enviromentNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: AI,2AO(mA,isol),+24V/EXTC Slot: No boardD Slot: No boardE Slot: No boardManual: ChineseFrame 11Other options according to Model code
Gross weight
471 kg
Net weight
470 kg
Volume
0 l
EAN
5710108688448
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0730 : 730 Amp
Control Keypad
G : Graphical panel
Enclosure
2 : IP21/NEMA1
EMC emission levels
L : IEC61800-3, 2. enviroment
Brake Chopper
0 : No Brake
Electrical Modification
S : 6-pulse with choke
Card Modifications
B- : Fiber+IntegrControl+varn.PCB
Shipping Package
+GSWP : Wooden packaging
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
B4 : AI,2AO(mA,isol),+24V/EXT
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL26 : UK,RU,CN;Others
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLCN : Chinese
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR11 : Frame 11
Power rating
400 : 400 kW/550 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-073052
Typecode Part 2
-000032219
Salestext
FR1107305-2L
Modelcode01
NXP07305-G2L0SSB-
Modelcode02
A1B4000000
Modelcode03
+FL26
Modelcode05
+DPAP+DLCN
Calculated Net Weight [kg]
470
Calculated Gross Weight [kg]
471
Motor Power Low Overload [kW]
400
Motor Power High Overload [kW]
355
Dimensions WxHxD [mm]
794X2018X602
Continuous Current (NO) [A]
730
Continuous Current (HO) [A]
650
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-073052-11764N
Stock Code
7DP-073052
check if complete
OK
Calculated Net Weight
470
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
