136H2462
Part Number: 136H2462
Product Information
Extended Description

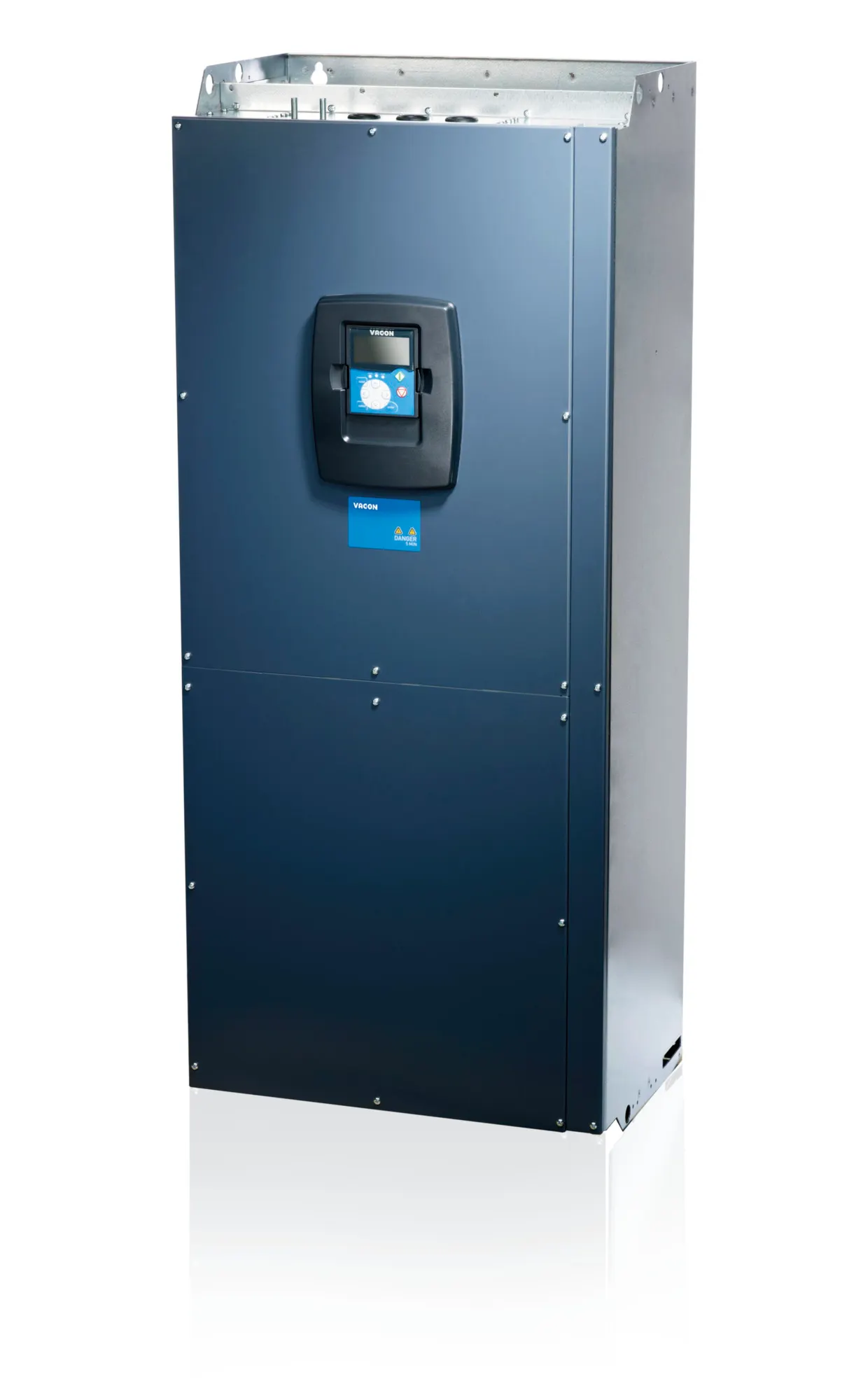

136H2462 Danfoss: NXP03005-A2T1SSG-A1A20000CI+QGLM+FL23+DPAP
Gross weight
147 kg
Net weight
146 kg
Volume
0 l
EAN
5710108689681
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0300 : 300 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
2 : IP21/NEMA1
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
S : 6-pulse with choke
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLM : Metric conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
CI : Modbus/TCP
Firmware language package
+FL23 : UK,NL,DE,FR,ITWestEurII
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR09 : Frame 09
Power rating
160 : 160 kW/250 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-030052
Typecode Part 2
-000031826
Salestext
FR0903005-2T
Modelcode01
NXP03005-A2T1SSG-
Modelcode02
A1A20000CI+QGLM
Modelcode03
+FL23
Modelcode05
+DPAP
Calculated Net Weight [kg]
146
Calculated Gross Weight [kg]
147
Motor Power Low Overload [kW]
160
Motor Power High Overload [kW]
132
Dimensions WxHxD [mm]
480X1150X362
Continuous Current (NO) [A]
300
Continuous Current (HO) [A]
245
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-030052-11767U
Stock Code
7DP-030052
check if complete
OK
Calculated Net Weight
146
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
130R1325
DriveProStart-UP ctrl. IFT test medium
130R1322
DrivePro Start-Up special applic. medium
130R1315
DrivePro Start-Up 1 day on-demand medium
130R1314
DrivePro Start-Up 1 day pre-order medium
130R1306
DrivePro Start-Up unit on-demand medium
130R1305
DrivePro Start-Up unit pre-order medium
136L2128
7DP-030055-000009156
130R1382
DrivePro Start-Up =C2=BD day pre-order medi
130R1383
DrivePro Start-Up =C2=BD day on-demand medi
