136H3192
Part Number: 136H3192
Product Information
Extended Description

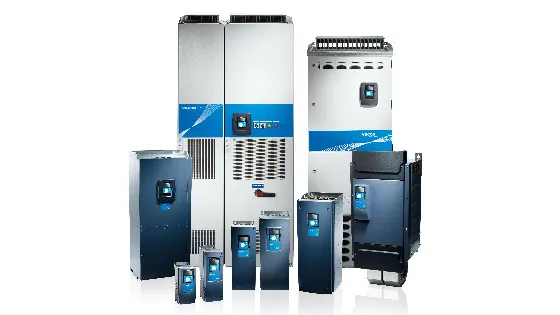

136H3192 Danfoss: NXP15006-A0T0SSG-A1A2B4B5CI+DLFRVacon NXP Frequency Converter525 =E2=80=93 690 Vac (640-1100 Vdc), 1500 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: AI,2AO(mA,isol),+24V/EXTD Slot: 3RO(NO)E Slot: Modbus/TCPManual: French2xFrame 13Other options according to Model code
Gross weight
926 kg
Net weight
925 kg
Volume
0 l
EAN
5710108697099
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
6- : 525 =E2=80=93 690 Vac (640-1100 Vdc)
Current
1500 : 1500 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
S : 6-pulse with choke
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
B4 : AI,2AO(mA,isol),+24V/EXT
Option Slot D
B5 : 3RO(NO)
Option Slot E
CI : Modbus/TCP
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLFR : French
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR14 : 2xFrame 13
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-150060
Typecode Part 2
-000022738
Salestext
FR1415006-0T
Modelcode01
NXP15006-A0T0SSG-
Modelcode02
A1A2B4B5CI
Modelcode05
+DLFR
Calculated Net Weight [kg]
1184
Calculated Gross Weight [kg]
1185
Motor Power Low Overload [kW]
1500
Motor Power High Overload [kW]
1300
Dimensions WxHxD [mm]
3X(239X1030X372) +2X(708X1032X
Continuous Current (NO) [A]
1500
Continuous Current (HO) [A]
1300
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-150060-1176LS
Stock Code
7DP-150060
check if complete
OK
Calculated Net Weight
925
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1326
DrivePro Start-UP ctrl. IFT test high
130R1323
DrivePro Start-Up special applic. high
130R1317
DrivePro Start-Up 1 day on-demand high
130R1316
DrivePro Start-Up 1 day pre-order high
130R1308
DrivePro Start-Up Unit on-demand high
130R1307
DrivePro Start-Up Unit Pre-order high
130R1089
DrivePro ExWarr Onsite PG11 72 Months
130R1049
DrivePro ExWarr Onsite PG11 48 Months
130R1039
DrivePro ExWarr Onsite PG11 42 Months
130R1029
DrivePro ExWarr Onsite PG11 36 Months
Encoder-less Safety using DOLD Module
VACON Condition-based Monitoring
VACON=C2=AE NX All in One Application Guide
VACON NXP Common DC Bus Selection Guide
VACON NXP Grid Converter Selection Guide
VACON NXP System Drive Selection Guide
VACON=C2=AE NX Door Keypad Mounting Instr.
VACON=C2=AE NXP IP00 Modules Quick Guide
VACON-NX-Line-Voltage-Measurement-OG
VACON=C2=AE NXP IP00 Modules
