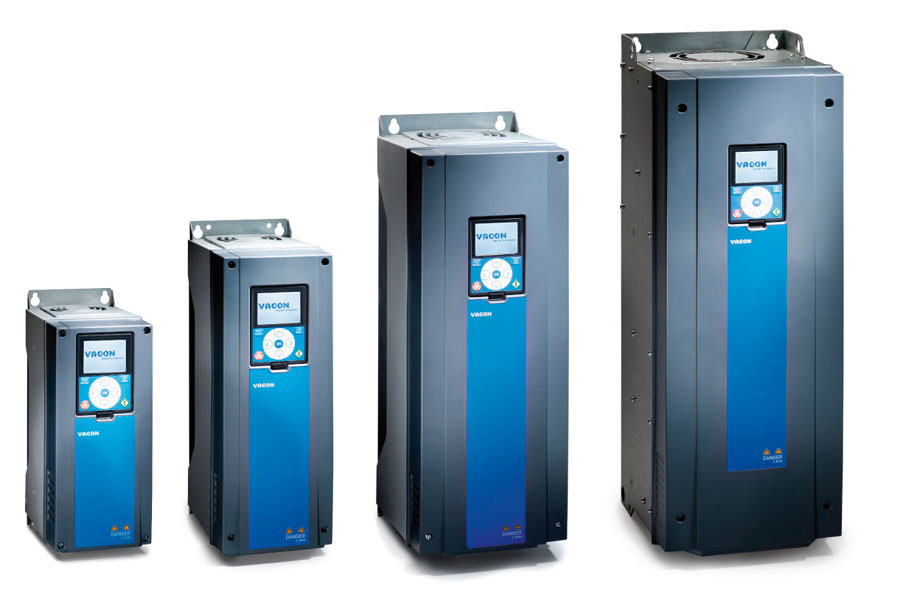

136H3237

Part Number: 136H3237
136H3237
Manufacturer
Danfoss
Part number
136H3237
Category

Product Information

Extended Description

136H3237 Danfoss: VACON0100-3L-0170-5+SBF4+IP54+DPAP+DLDE
Gross weight
67 kg
Net weight
66 kg
Volume
0 l
EAN
5710108697488
Product View (Switch)
GLBL : Global (Standard)
Segment
NONE : VACON 100 Industrial
Region Code
-R00 : R00 International
Mains voltage
-5 : 380-500 Vac
Current rating
-0170 : 170 Amp
Installation options
-DM : DM Drive Module
Enclosure
+IP54 : IP54/NEMA12
Control panel
+HMGR : Graphical Keypad MK01
EMC emission limit category
+EMC2 : C2 Commercial&Industry Environ
Common mode filter (for DM)
+P000 : No Option
DUT filter (for DM)
+P000 : No Option
Brake chopper
+DBNO : No dynamic braking device
Real time clock option
+SRNO : No Battery for real time clock
Configurable power range
NONE : None
Power connections
+P000 : No Power options (+P000)
Cable entry
+QGLM : Metric conduit plate
Additional Equipment B
+Q000 : No option for Qxxx_B (+Q000)
Additonal Equipment C
+Q000 : No additonal option for Qxxx_C
Shipping package
+GSCB : Cardboard Box as Shipping pack
Marine construction
+E000 : no option
B-Slot Option Board
+SBF4 : F4,2 Relay board with therm
C- Slot Option Board
+SC00 : No board
D-Slot Option Board
+SD00 : No board
E-Slot Option Board
+SE00 : No board
Internal FB selection
+FBM1 : Std protocol,Modbus,N2,BacNet
Documentation level
+DPAP : Paper Manuals
Document language preference
+DLDE : German
Firmware Language Pack
+FL01 : UK, DE, FI, SE, IT, FR lang
Application
+A0000 : No Application
Parameter Set
+L0000 : No application parameter set
Motor parameter default freq
+LS50 : 50 Hz def motor freq settings
Unit for measure for display
+LSSI : Metric Units of Measure
Labeling options
+LPC1 : no additional labels
UL approval
+GAUL : UL Approval (+GAUL)
Marine approval
NONE : None
RCM Approval
+GACT : RCM Approval N16307
KC approval
+GAKC : KC Approval
Ukrainian approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Auxilary power supply
+C000 : no option
DC power supply for aux device
+C000 : no option
AC socket for aux devices
+C000 : no option
Input Devices
NONE : none_
Common mode filter (for ED)
+P000 : no option
DU/DT, Sine filter (for ED)
+P000 : no option
Terminal Options
NONE : none_
Door Equipments
+C000 : no option
Cabinet heater
+C000 : no option
Cabinet light
+C000 : no option
Motor heater control
+C000 : no option
Emergency stop options
+C000 : no option
Insulation fault sensor
+C000 : no option
Cabling from top
+C000 : no option
Back channel cooling
+C000 : no option
Cabinet Plinth
+C000 : no option
Empty extension segment
NONE : None
Standardized cabinet solution
NONE : None
Engineered cabinet solution
NONE : None
Product Group
VACON : VACON
Product Series
0100 : Vacon 100 series
Phase
-3L : 3 Phase AC Input
Customized
+BM26 : Vacon 100
Main Circuit
+M000 : NONE
Firmware
+F0072 : Vacon0100 Software package
Max output frequency
NONE : None
Terminal Box
+T000 : NONE
Bypass Control Operation Mode
NONE : none_
Bypass Input Type
NONE : none_
Bypass power connection type
NONE : none_
CE approval
+GACE : CE Approval (+GACE)
ATEX Approval
NONE : None
County Specific Approval
NONE : None
Warrenty time
+WT01 : Warranty 12/18 months (+WT01)
Frame Size
MR08 : Frame 08
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0170-5
Modelcode02
+SBF4+IP54+DPAP+DLDE
Calculated Net Weight [kg]
66
Calculated Gross Weight [kg]
67
Motor Power Low Overload [kW]
90
Motor Power High Overload [kW]
75
Dimensions WxHxD [mm] net
290 X 966 X 343
Dimensions WxHxD [mm] Gross
520 X 450 X 1135
Dimensions WxHxD [mm]
290X996X343
Continuous Current (NO) [A]
170
Continuous Current (HO) [A]
140
Motor Power HP Low Overload
125
Motor Power HP High Overload
100
Typecode Part 1
70-AB3L01705W08B520BM26
Typecode Part 2
-00053266
Stockcode part 1
70-AB3L01705W08B520BM26
Stockcode part 2
-00053266
check if complete
OK
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Help Counter
20
Calculated Net Weight
66
Salestext
MR08-0170-5+IP54+EMC2
Sub family identification
NONE : Normal customer ordered
Recommended Plant
ERR01
ECCN US
3A999.a
ECCN EU
Y901
181B1462
Rectifier busbar kit
181B1459
EMC board 500V for MR08
181B1404
Connecting busbar
181B1403
T60404-N4644-X0 500A current sensor
181B1401
Discharging resistor assembly 48k 1 mm
181B1397
DC busbar kit
181B1396
DC choke busbar kit
181B1962
Control extension cable
181B1951
Fuse plain blade 315A aR 690VAC size 1
181B1950
Aux power supply 24VDC 60W
181B0586
OPT-E7-V:DeviceNet
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1472
OPT-B2-V+DLES:1RO(NO/NC),1RO(NO),therm
181B1473
OPT-B4-V+DLES:AI,2AO(mA,isol),+24V/EXT
181B1481
OPT-B1-V+DNOT:6 programmableDI/DO
181B1738
OPT-B4-V+DLFR:AI,2AO(mA,isol),+24V/EXT
181B2134
OPT-B2-V+DLDE:1RO(NO/NC),1RO(NO),therm
181B2151
OPT-B2-V+DNOT:1RO(NO/NC),1RO(NO),therm
181B2152
OPT-B4-V+DNOT:AI,2AO(mA,isol),+24V/EXT
