136H5216

Part Number: 136H5216
136H5216
Manufacturer
Danfoss
Part number
136H5216
Category

Product Information

Extended Description

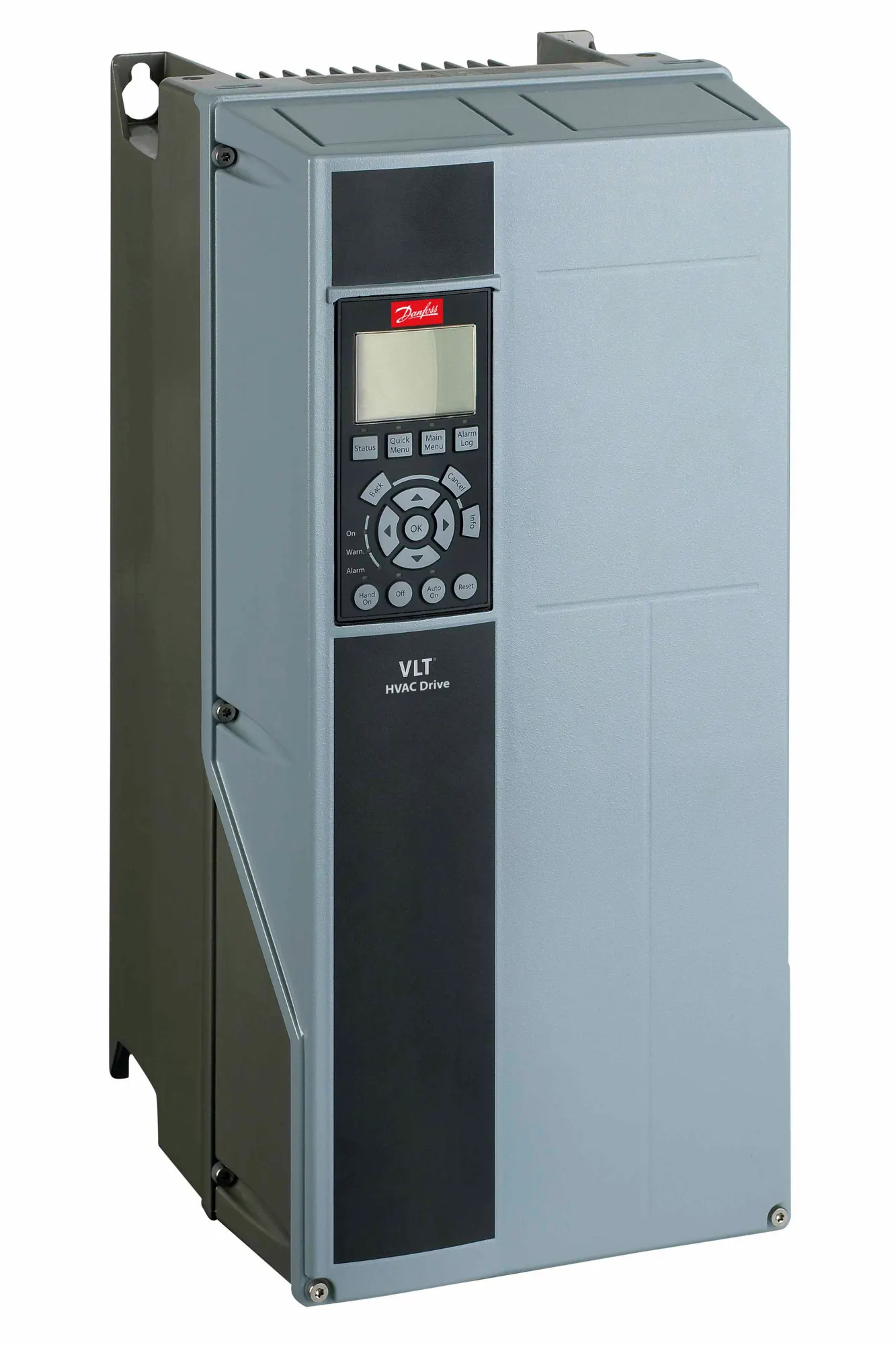

136H5216 Danfoss: Frequency ConverterFC-102P15KT4E55H3XGXXOXSXXXXAXBPCXXXXDXVLT=C2=AE HVAC Drive FC-102(P15K) 15 KW / 20 HP, Three phase380 - 480 VAC, IP55 / Type 12(H3) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: B1No C1 option, No D optionNo A Option, MCB-105 Relay CardOther options according to Model Code
Gross weight
28.3 kg
Net weight
28 kg
Volume
144.67 l
EAN
5710108717773
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P15K : (P15K) 15 KW / 20 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E55 : IP55 / Type 12
RFI Filter
H3 : (H3) RFI Class A1/B (C1)
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
O : Metric thread cable entry
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BP : MCB-105 Relay Card
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B1 : B1
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P15KT4E55H3XGX
Typecode Part 2
XOXSXXXXAXBPCXXXXDX
Power 110% (NO) [KW]
15
Height [mm]
494,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
22.2
Power Loss NO [W]
392
Continuous Current (NO) [A]
32
Intermittent Current (NO) [A]
35.2
Calculated Gross Weight [kg]
22.4
Calculated Net Weight [kg]
22.1
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P15KT4E55H3XGX
Modelcode02
XOXSXXXXAXBPCXXXXDX
Recommended Plant
ERR01
130B3383
Back plate IP21/Type 1, IP55/Type 12, B1
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1385
VLT=C2=AE Profibus DP V1 MCA101, unctd 5pcs
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
131F3243
FC-102P18KT4E55H1UGCXXXSXXXXAXBXCXXXXDX
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
