136H6842

Part Number: 136H6842
136H6842
Manufacturer
Danfoss
Part number
136H6842
Category

Product Information

Extended Description

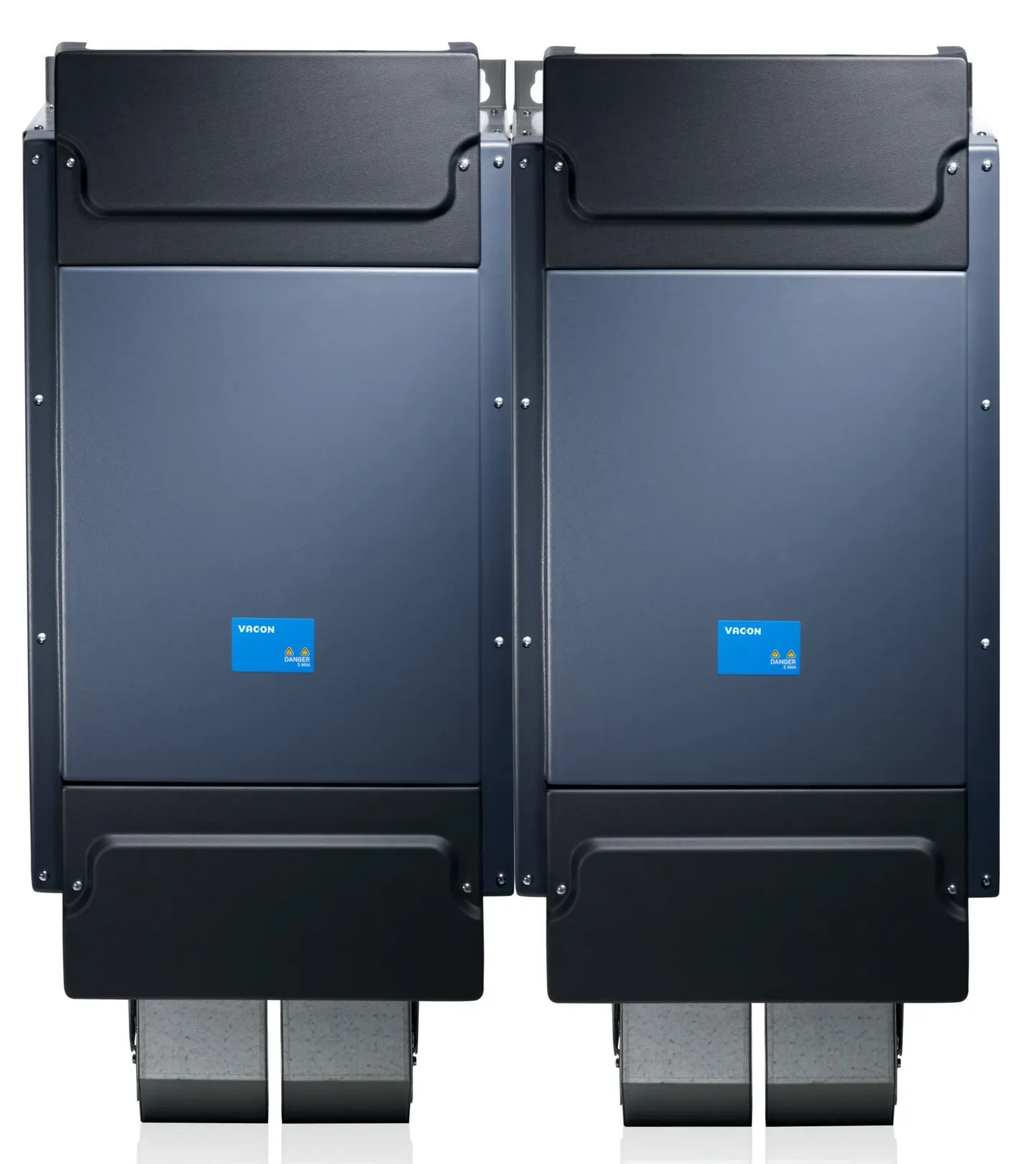

136H6842 Danfoss: NXP06506-A0T0NSG-A1A3000000Vacon NXP Frequency Converter525 =E2=80=93 690 Vac (640-1100 Vdc), 650 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 1RO(NO/NC),1RO(NC), thermC Slot: No boardD Slot: No boardE Slot: No boardManual: English2xFrame 10Other options according to Model code
Gross weight
415 kg
Net weight
414 kg
Volume
0 l
EAN
5710108734008
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
6- : 525 =E2=80=93 690 Vac (640-1100 Vdc)
Current
0650 : 650 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
N : 6-puls No choke for Spare unit
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSWP : Wooden packaging
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A3 : 1RO(NO/NC),1RO(NC), therm
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR12 : 2xFrame 10
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-065060
Typecode Part 2
-000019267
Salestext
FR1206506-0T
Modelcode01
NXP06506-A0T0NSG-
Modelcode02
A1A3000000
Calculated Net Weight [kg]
246
Calculated Gross Weight [kg]
247
Motor Power Low Overload [kW]
630
Motor Power High Overload [kW]
560
Dimensions WxHxD [mm]
2X(500X1165X506)
Continuous Current (NO) [A]
650
Continuous Current (HO) [A]
590
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-065060-1178N1
Stock Code
7DP-065060
check if complete
OK
Calculated Net Weight
414
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1074
DrivePro ExWarr Onsite PG08 48 Months
130R1073
DrivePro ExWarr Onsite PG08 42 Months
130R1075
DrivePro ExWarr Onsite PG08 54 Months
130R1076
DrivePro ExWarr Onsite PG08 60 Months
130R1175
DrivePro ExWarr Work Shop PG08 54 Month
130R1177
DrivePro ExWarr Work Shop PG08 66 Month
130R1178
DrivePro ExWarr Work Shop PG08 72 Month
130R1176
DrivePro ExWarr Work Shop PG08 60 Month
130R1170
DrivePro ExWarr Work Shop PG08 24 Month
130R1172
DrivePro ExWarr Work Shop PG08 36 Month
Danfoss MD 00779152 B2 IFA 2001240 UL E171278 Danfoss EU DPD02212.C Danfoss EU-UK 00736939.E1 Danfoss EU-UK 00760715 D1 Danfoss EU-UK DPD01854 E T=C3=9CV CM-088-17 T=C3=9CV Z10 099224 0001 Rev. 01 Danfoss MD 00773531.A2 VACON=C2=AE NXP Advanced Application VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware
