136H6882

Part Number: 136H6882
136H6882
Manufacturer
Danfoss
Part number
136H6882
Category

Product Information

Extended Description

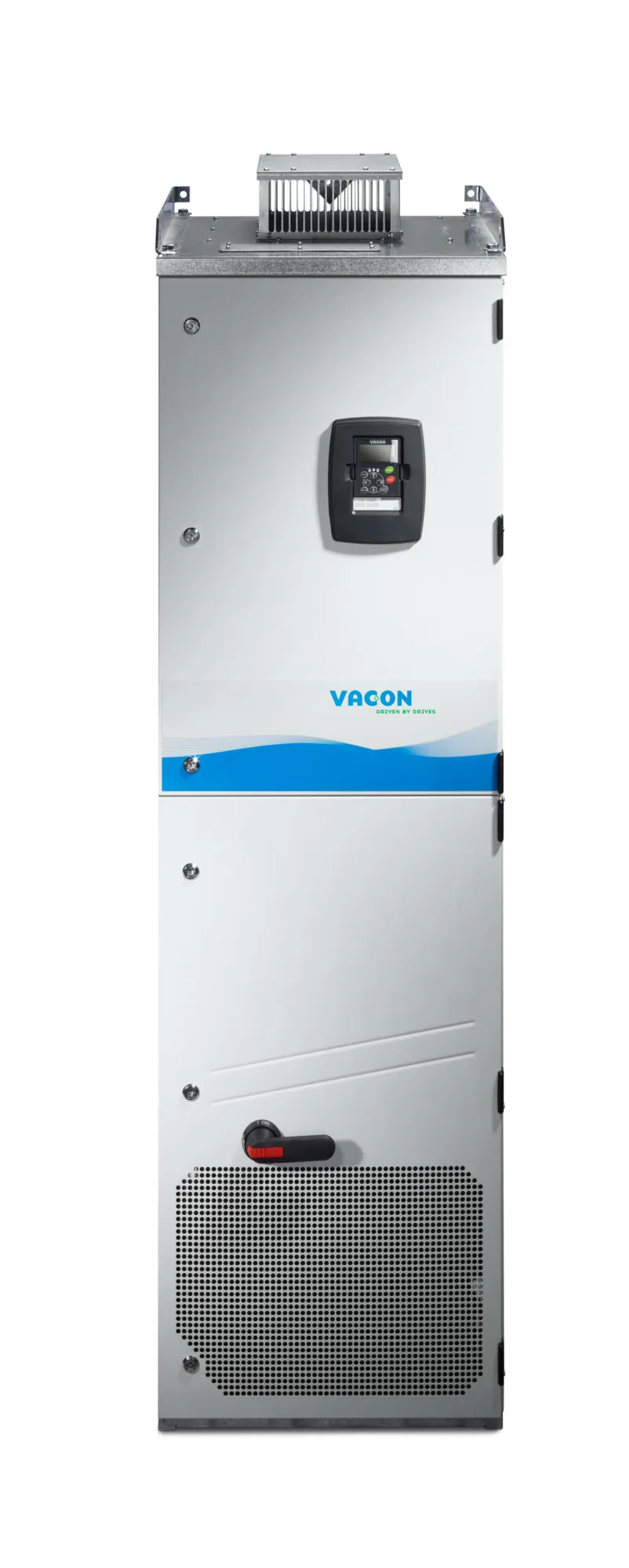

136H6882 Danfoss: NXP03855-A5L1SSB-A1A2000000+FL21+DPAP+DLSEVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 385 Amp,IP54/NEMA12Alpha-numeric displayIEC61800-3, 2. enviromentIntegrated Brake chopperA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: No boardManual: SwedishFrame 10Other options according to Model code
Gross weight
341 kg
Net weight
340 kg
Volume
0 l
EAN
5710108734398
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0385 : 385 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
5 : IP54/NEMA12
EMC emission levels
L : IEC61800-3, 2. enviroment
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
S : 6-pulse with choke
Card Modifications
B- : Fiber+IntegrControl+varn.PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL21 : UK,FI,SE,DK,DE;Nordic
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLSE : Swedish
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR10 : Frame 10
Power rating
200 : 200 kW/300 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-038555
Typecode Part 2
-000019669
Salestext
FR1003855-5L
Modelcode01
NXP03855-A5L1SSB-
Modelcode02
A1A2000000
Modelcode03
+FL21
Modelcode05
+DPAP+DLSE
Calculated Net Weight [kg]
340
Calculated Gross Weight [kg]
341
Motor Power Low Overload [kW]
200
Motor Power High Overload [kW]
160
Dimensions WxHxD [mm]
595X2018X602
Continuous Current (NO) [A]
385
Continuous Current (HO) [A]
300
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-038555-1178QG
Stock Code
7DP-038555
check if complete
OK
Calculated Net Weight
340
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
