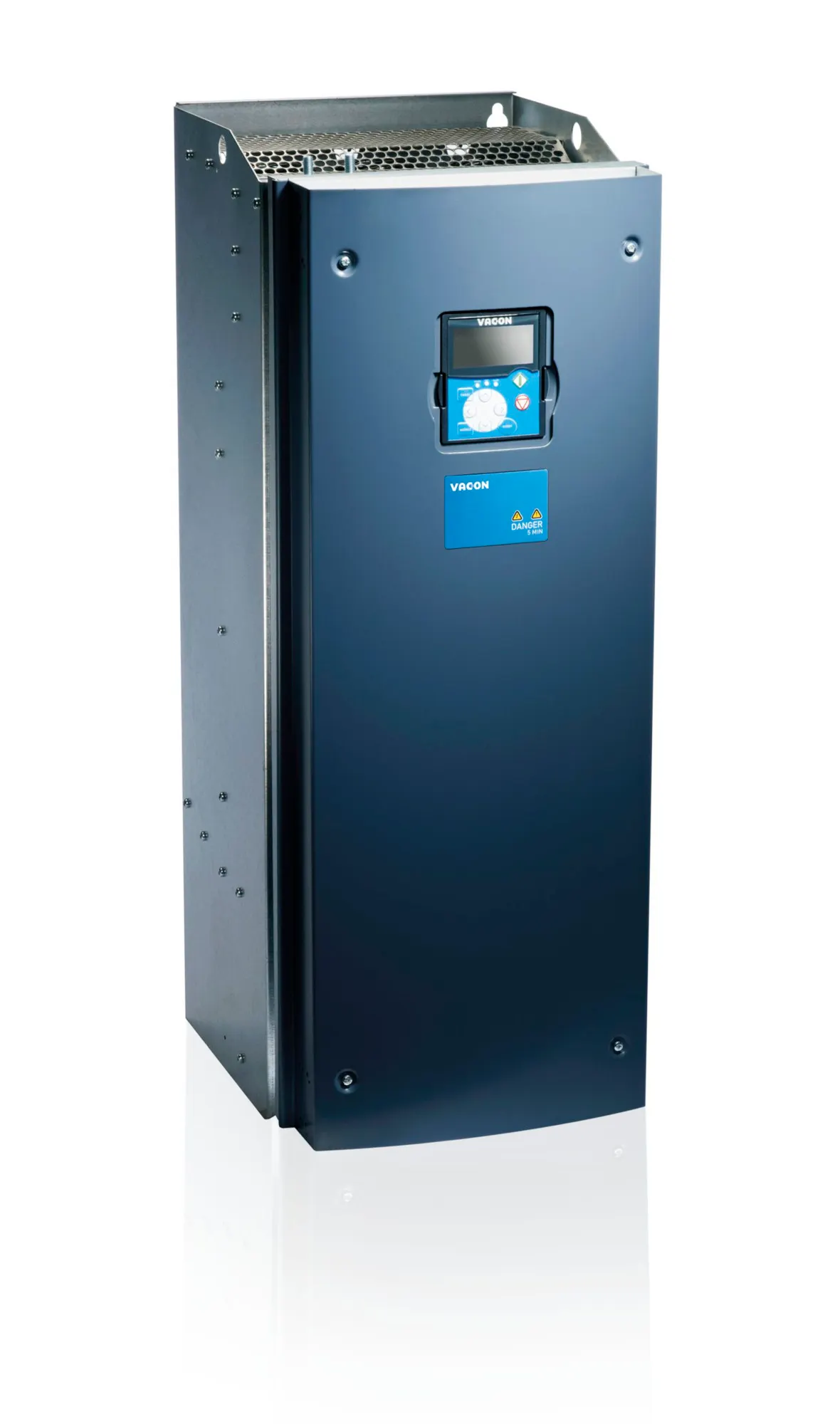

136H6943

Part Number: 136H6943
136H6943
Manufacturer
Danfoss
Part number
136H6943
Category

Product Information

Extended Description

136H6943 Danfoss: NXP02055-A5H1SSV-A1A3A5B1B1+QGLM+FL23+DPAP+DLNL
Gross weight
59 kg
Net weight
58 kg
Volume
0 l
EAN
5710108735104
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0205 : 205 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
5 : IP54/NEMA12
EMC emission levels
H : IEC61800-3
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
S : 6-pulse with choke
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLM : Metric conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A3 : 1RO(NO/NC),1RO(NC), therm
Option Slot C
A5 : 3DI(Enc.10-24V),15/24Vout
Option Slot D
B1 : 6 programmableDI/DO
Option Slot E
B1 : 6 programmableDI/DO
Firmware language package
+FL23 : UK,NL,DE,FR,ITWestEurII
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLNL : Dutch
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR08 : Frame 08
Power rating
110 : 110 kW/150 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-020555
Typecode Part 2
-000017250
Salestext
FR0802055-5H
Modelcode01
NXP02055-A5H1SSV-
Modelcode02
A1A3A5B1B1+QGLM
Modelcode03
+FL23
Modelcode05
+DPAP+DLNL
Calculated Net Weight [kg]
58
Calculated Gross Weight [kg]
59
Motor Power Low Overload [kW]
110
Motor Power High Overload [kW]
90
Dimensions WxHxD [mm]
288X758X344
Continuous Current (NO) [A]
205
Continuous Current (HO) [A]
170
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-020555-1178RK
Stock Code
7DP-020555
check if complete
OK
Calculated Net Weight
58
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE NX All in One Application Guide VACON NXP Common DC Bus Selection Guide VACON NXP Grid Converter Selection Guide VACON NXP System Drive Selection Guide VACON=C2=AE NX Door Keypad Mounting Instr. VACON-NX-Line-Voltage-Measurement-OG VACON=C2=AE NXS NXP Air-cooled OG Cybersecurity for Vacon NX Drives Danfoss MD 00779152 B2 IFA 2001240 UL E171278 Danfoss EU DPD02212.C Danfoss EU-UK 00736939.E1 Danfoss EU-UK 00760715 D1 Danfoss EU-UK DPD01854 E T=C3=9CV CM-088-17 T=C3=9CV Z10 099224 0001 Rev. 01 Danfoss MD 00773531.A2 VaconNXP_FR8_IP54 MCAD VACON NXS NXP FR8 IP54 MCAD VACON NXS NXP FR8 IP54 DC cover OPTA1_VACON_NX MCAD VACON NXS NXP FR8 IP54 Control MCAD VACON NXS NXP FR8 IP54 Conduit box OPTA3_VACON_NX MCAD VACON NXS NXP FR8 IP54 Connections MCAD VACON NXS NXP FR8 IP54 DC terminal OPTA5_VACON_NX VACON=C2=AE NXP Advanced Application VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware
