136H6991
Part Number: 136H6991
Product Information
Extended Description

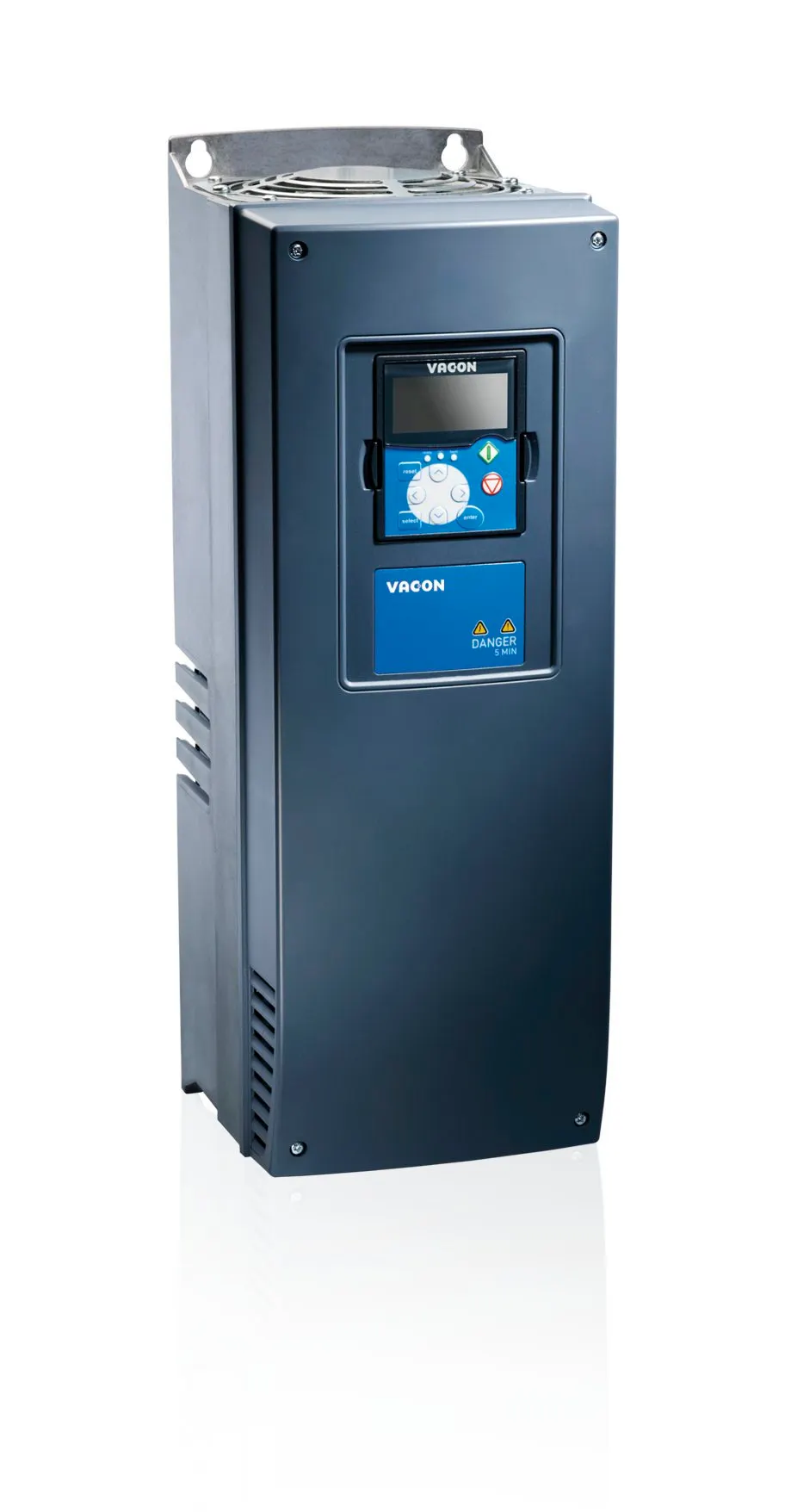

136H6991 Danfoss: NXP00615-A2H1SSV-A8A2B1B200+FL24+DPAP+DLCZVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 61 Amp,IP21/NEMA1Alpha-numeric displayIEC61800-3Integrated Brake chopperA Slot: OPTA1 w.galv.isol 2AI&1AOB Slot: 2RO(NO/NC)C Slot: 6 programmableDI/DOD Slot: 1RO(NO/NC),1RO(NO),thermE Slot: No boardManual: CzechFrame 06Other options according to Model code
Gross weight
19.5 kg
Net weight
18.5 kg
Volume
0 l
EAN
5710108735500
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0061 : 61 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
2 : IP21/NEMA1
EMC emission levels
H : IEC61800-3
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
S : 6-pulse with choke
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLC : Inch conduit plate
Option Slot A
A8 : OPTA1 w.galv.isol 2AI&1AO
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
B1 : 6 programmableDI/DO
Option Slot D
B2 : 1RO(NO/NC),1RO(NO),therm
Option Slot E
00 : No board
Firmware language package
+FL24 : UK,EE,PL,CZ,DE;CentEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLCZ : Czech
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR06 : Frame 06
Power rating
30K : 30 kW/40 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-006152
Typecode Part 2
-000017743
Salestext
FR0600615-2H
Modelcode01
NXP00615-A2H1SSV-
Modelcode02
A8A2B1B200
Modelcode03
+FL24
Modelcode05
+DPAP+DLCZ
Calculated Net Weight [kg]
18.5
Calculated Gross Weight [kg]
19.5
Motor Power Low Overload [kW]
30
Motor Power High Overload [kW]
22
Dimensions WxHxD [mm]
195X519X237
Continuous Current (NO) [A]
61
Continuous Current (HO) [A]
46
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-006152-1178T9
Stock Code
7DP-006152
check if complete
OK
Calculated Net Weight
18.5
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
Danfoss MD 00779152 B2
IFA 2001240
UL E171278
Danfoss EU DPD02212.C
Danfoss EU-UK 00736939.E1
Danfoss EU-UK 00760715 D1
Danfoss EU-UK DPD01854 E
T=C3=9CV CM-088-17
T=C3=9CV Z10 099224 0001 Rev. 01
Danfoss MD 00773531.A2
VACON=C2=AE NXP Advanced Application
VACON=C2=AE NCDrive
VACON=C2=AE OPT-C7 DeviceNet Firmware
VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware
VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware
VACON=C2=AE OPT-CG S2 Protocol Firmware
VACON=C2=AE OPT-CJ BACnet MS/TP Firmware
VACON=C2=AE OPT-C4 LonWorks Firmware
VACON=C2=AE OPT-CI Modbus TCP/IP Firmware
VACON=C2=AE OPT-CP PROFINET IO Firmware
