136H7175

Part Number: 136H7175
136H7175
Manufacturer
Danfoss
Part number
136H7175
Category

Product Information

Extended Description

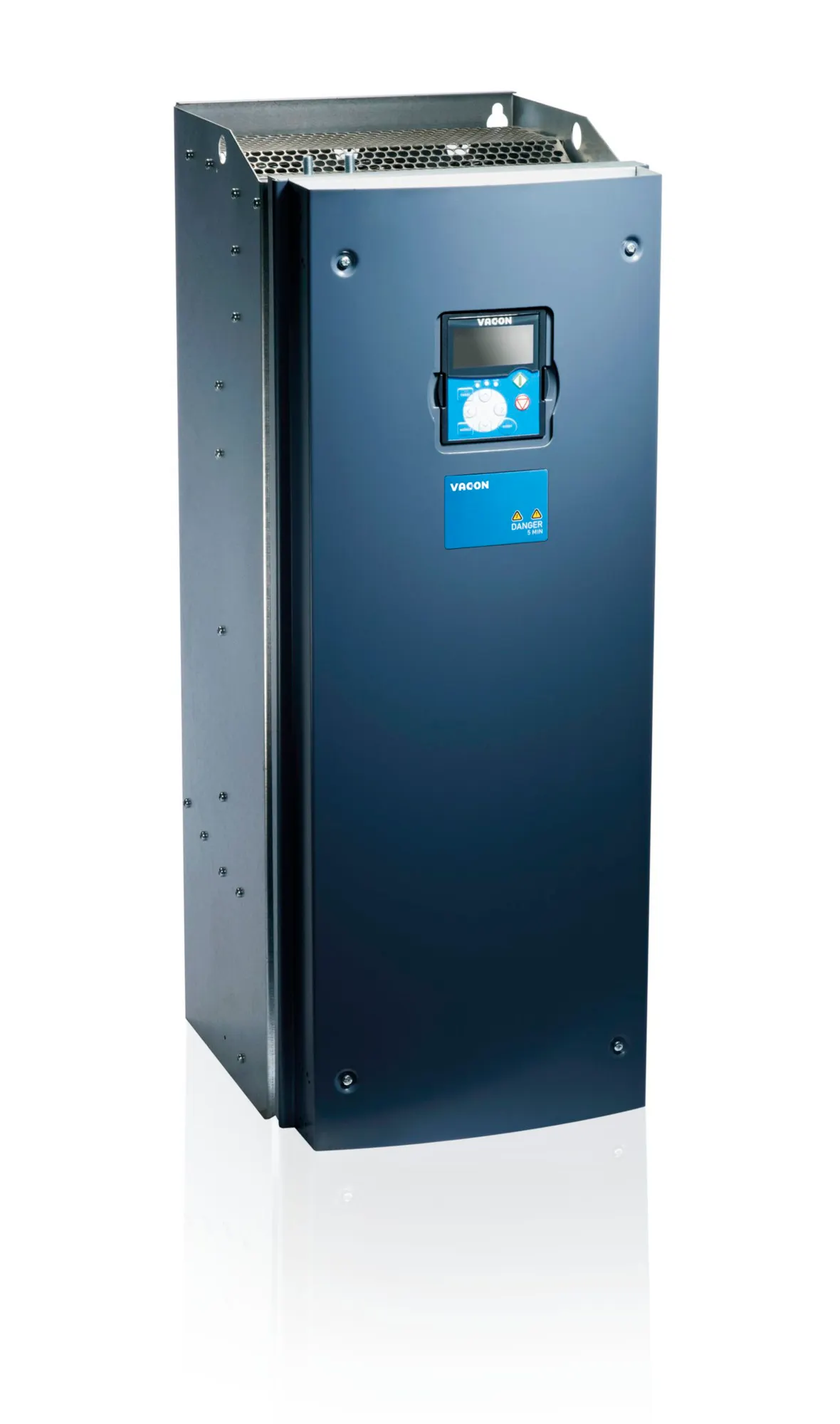

136H7175 Danfoss: NXP01702-A2H0SSV-A1A2000000+DLESVacon NXP Frequency Converter230 Vac, 170 Amp,IP21/NEMA1Alpha-numeric displayIEC61800-3No BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: No boardManual: SpanishFrame 08Other options according to Model code
Gross weight
59 kg
Net weight
58 kg
Volume
0 l
EAN
5710108737269
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
2- : 230 Vac
Current
0170 : 170 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
2 : IP21/NEMA1
EMC emission levels
H : IEC61800-3
Brake Chopper
0 : No Brake
Electrical Modification
S : 6-pulse with choke
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLC : Inch conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DQCK : Quick guide user manual
Documentation Lang. Preference
+DLES : Spanish
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR08 : Frame 08
Power rating
45K : 45 kW/60 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-017022
Typecode Part 2
-000007594
Salestext
FR0801702-2H
Modelcode01
NXP01702-A2H0SSV-
Modelcode02
A1A2000000
Modelcode05
+DLES
Calculated Net Weight [kg]
58
Calculated Gross Weight [kg]
59
Motor Power Low Overload [kW]
45
Motor Power High Overload [kW]
37
Dimensions WxHxD [mm]
288X758X344
Continuous Current (NO) [A]
170
Continuous Current (HO) [A]
140
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-017022-1178WS
Stock Code
7DP-017022
check if complete
OK
Calculated Net Weight
58
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
