136L8886
Part Number: 136L8886
Product Information
Extended Description

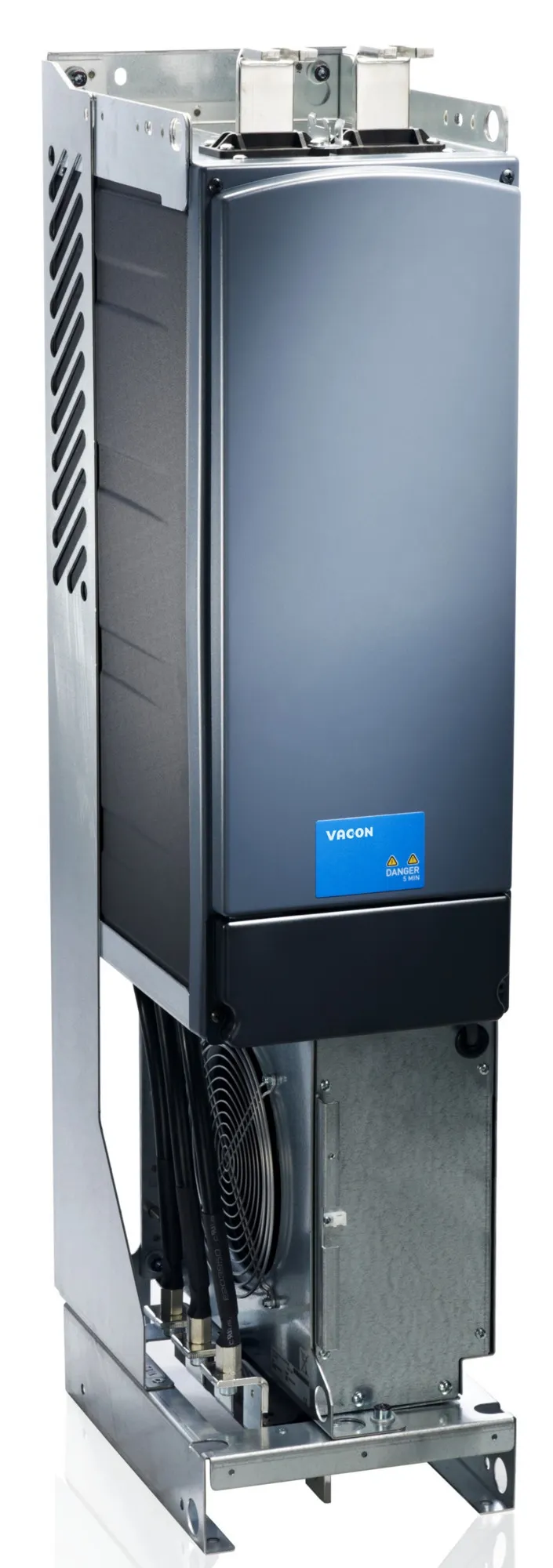

136L8886 Danfoss: NXA02615-A0T02SG-A9A2000000
Gross weight
68 kg
Net weight
67 kg
Volume
0 l
EAN
5710108854737
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0261 : 261 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A9 : OPTA1 with 2,5mm2 conn.
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+ARFIFF02 : AFE application NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI09 : Frame 09 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-026150
Typecode Part 2
-000016559
Salestext
FI0902615-0T
Modelcode01
NXA02615-A0T02SG-
Modelcode02
A9A2000000
Calculated Net Weight [kg]
67
Calculated Gross Weight [kg]
68
Motor Power Low Overload [kW]
175
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
239X1030X372
Continuous Current (NO) [A]
308
Continuous Current (HO) [A]
205
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DA-026150-117FQ3
Stock Code
7DA-026150
check if complete
OK
Calculated Net Weight
67
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
130R1325
DriveProStart-UP ctrl. IFT test medium
130R1322
DrivePro Start-Up special applic. medium
130R1315
DrivePro Start-Up 1 day on-demand medium
130R1314
DrivePro Start-Up 1 day pre-order medium
130R1306
DrivePro Start-Up unit on-demand medium
130R1305
DrivePro Start-Up unit pre-order medium
VACON=C2=AE NX All in One Application Guide
VACON NXP and VACON NXC Selection Guide
VACON NXP Common DC Bus Selection Guide
VACON NXP Grid Converter Selection Guide
VACON NXP System Drive Selection Guide
VACON=C2=AE NXP System Drive Hardware Manual
Cybersecurity for Vacon NX Drives
VACON=C2=AE NX Active Front End User Manual
VACON=C2=AE NX Filters User Manual
VACON NXP and VACON NXC Selection Guide - US English
Danfoss MD 00779152 B2
UL E171278
Danfoss EU-UK 00736949 E1
ABS 24-00T2545447-PDA
ABS 24-00T2545449-PDA
BV 14584-DO BV
CRS 03-001990-031694
DNV GL TAE000013B Rev. 4
KR HMB 28683-AC001
KR HMB28683-AC003
VACON=C2=AE NCDrive
VACON=C2=AE OPT-C7 DeviceNet Firmware
VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware
VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware
VACON=C2=AE OPT-CG S2 Protocol Firmware
VACON=C2=AE OPT-CJ BACnet MS/TP Firmware
VACON=C2=AE OPT-C4 LonWorks Firmware
VACON=C2=AE OPT-CI Modbus TCP/IP Firmware
VACON=C2=AE OPT-CP PROFINET IO Firmware
VACON=C2=AE OPT-CQ Ethernet/IP Firmware
