136N1680

Part Number: 136N1680
136N1680
Manufacturer
Danfoss
Part number
136N1680
Category

Product Information

Extended Description

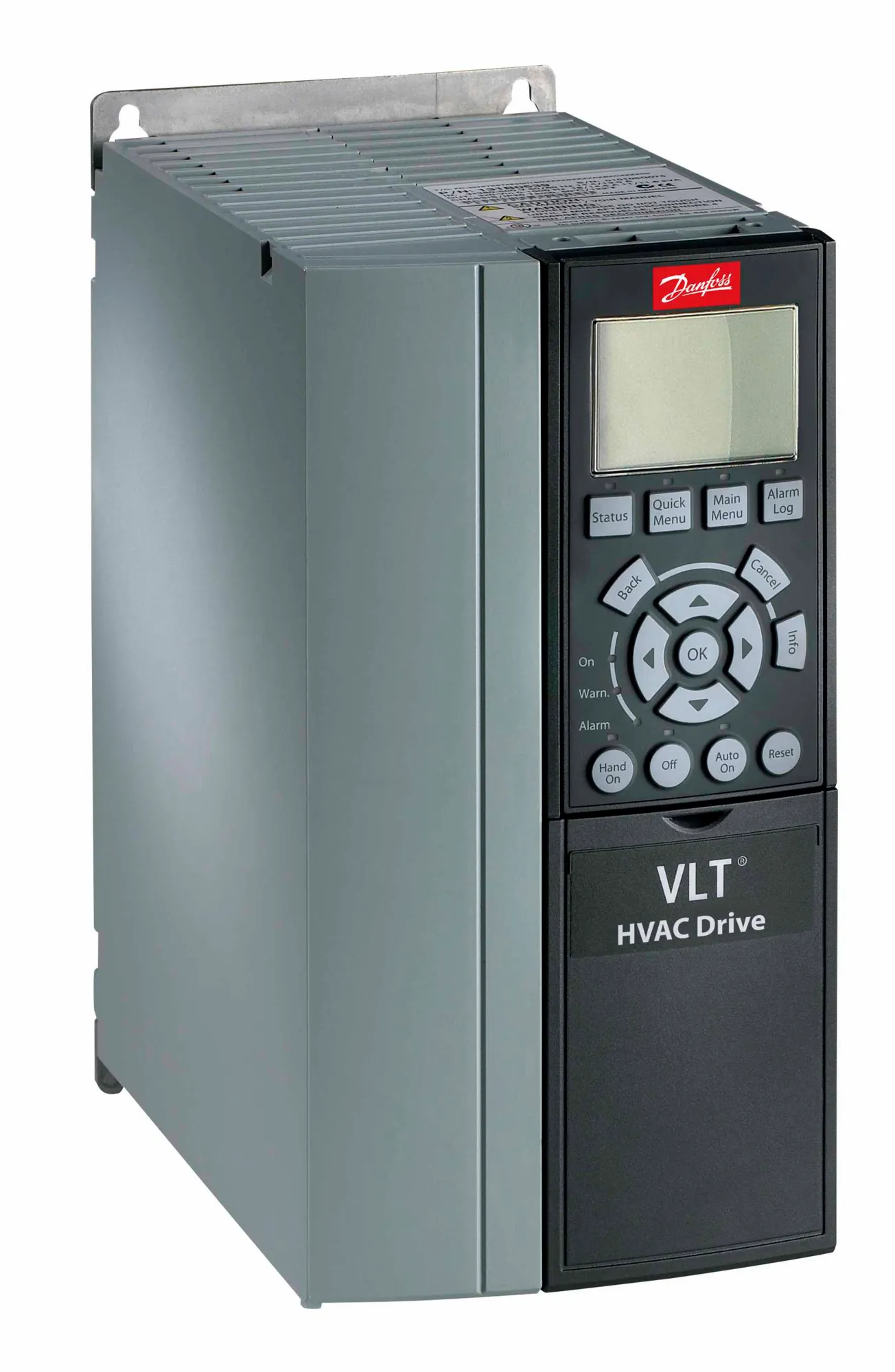

136N1680 Danfoss: Frequency ConverterFC-102P7K5T4E20H1BGXXXXSXXXXAXB0CXXXXDXVLT=C2=AE HVAC Drive FC-102(P7K5) 7.5 KW / 10 HP, Three phase380 - 480 VAC, (E20) IP20 / Chassis(H1) RFI Class A1/B (C1)Brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: A3No C1 option, No D optionNo A Option, MCB-109 I/O, RTC Back-upOther options according to Model Code
Gross weight
6.9 kg
Net weight
6.6 kg
Volume
27.246 l
EAN
5710108893828
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P7K5 : (P7K5) 7.5 KW / 10 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
B : Brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
B0 : MCB-109 I/O, RTC Back-up
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
A3 : A3
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P7K5T4E20H1BGX
Typecode Part 2
XXXSXXXXAXB0CXXXXDX
Power 110% (NO) [KW]
7.5
Height [mm]
268,0
Width w/ no C options [mm]
130,0
Width w/ two C options [mm]
190,0
Depth [mm]
205,0
Depth with Option A/B [mm]
220,0
kVA
11.1
Power Loss NO [W]
255
Continuous Current (NO) [A]
16
Intermittent Current (NO) [A]
17.6
Calculated Gross Weight [kg]
7.3
Calculated Net Weight [kg]
7
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P7K5T4E20H1BGX
Modelcode02
XXXSXXXXAXB0CXXXXDX
Recommended Plant
ERR01
130B9001
multiple 2 pole power combicon, 24V plug
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1012
Terminal cover frame A1-A3 with option
130B1008
Frame for LCP Control Pad with option
130B1022
fc-300 spare part/acc.bag a2 +a3 encl.
130B0295
sparepart/terminals accessory bag
130B1073
10 pole connector
130B1072
8 pole connector
130B1069
Multiple relay 1 plug
130B1068
Multiple relay 2 plug
130B7531
Mounting Kit f. C Option, 60mm, A2/A3
130B7530
Mounting Kit f. C Option, 40mm, A2/A3
130B7401
NEMA 1 Conversion Kit, Top, 10 pcs, A3
130B5645
Leakage Current Monitor Kit, A2, A3
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1385
VLT=C2=AE Profibus DP V1 MCA101, unctd 5pcs
130B0185
Adapter Plate, 395x220mm
130B0184
Adapter Plate, 395x130mm
130B0058
Adapter Plate, 415x279mm
131F3239
FC-102P7K5T4E20H1UGCXXXSXXXXAXBXCXXXXDX
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
Encoder-less Safety using DOLD Module Fire Emergency Mode VLT drives with integrated CBM VLT HVAC Drive Applications Note VLT=C2=AE Drives Motor overload protection VLT=C2=AE HVAC Drive FC 102 Temp. Derating VLT=C2=AE HVAC Drive in Fan Application with VLT HVAC Drive FC 102 Selection Guide VLT=C2=AE Advanced Harmonic Filter AHF005-010 VLT=C2=AE Brake Resistor MCE 101 Danfoss MD 00779152 B2 SASO KSA R-205899 UL E236048 UL E70524 PSL File Danfoss-24899b PSL-File Danfoss-24800 Danfoss EU-UK 00730213 A7 Danfoss EU-UK 00730297 A6 Danfoss EU-UK 00730657 A4 Danfoss EU-UK 00738283 A5 VLT_A3_IP20 FC 102 A3 enclosure IP20 AB PDF Wiring Schematic FC 102-202 1.1-90 kW 177R0084 - Mechanical Submittal Drawing FC 102 A3 enclosure IP20 PDF MCAD FC 102 A3 IP20 AB 1.1-7.5kW 130B1143_Eplan FC 102 A3 enclosure IP20 A PDF 130B1243-Eplan FC 102 A3 enclosure IP20 ABC PDF VLT=C2=AE Drives EtherNet/IP EDS VLT=C2=AE HVAC Drive Support File VLT=C2=AE HVAC Drive Simulator VLT=C2=AE EtherNet/IP Add-on Instructions VLT=C2=AE HVAC Drive FC 102 LNS Plug-in VLT=C2=AE HVAC Drive FC 102 LonWorks VLT=C2=AE Drives DeviceNet EDS VLT=C2=AE MCA101 PROFIBUS GSD VLT=C2=AE MCA120 PROFINET GSDML VLT=C2=AE Drives PROFIBUS PCA Block
