Part Number: 136N3123
136N3123
Manufacturer
Danfoss
Part number
136N3123
Category

Product Information

Extended Description

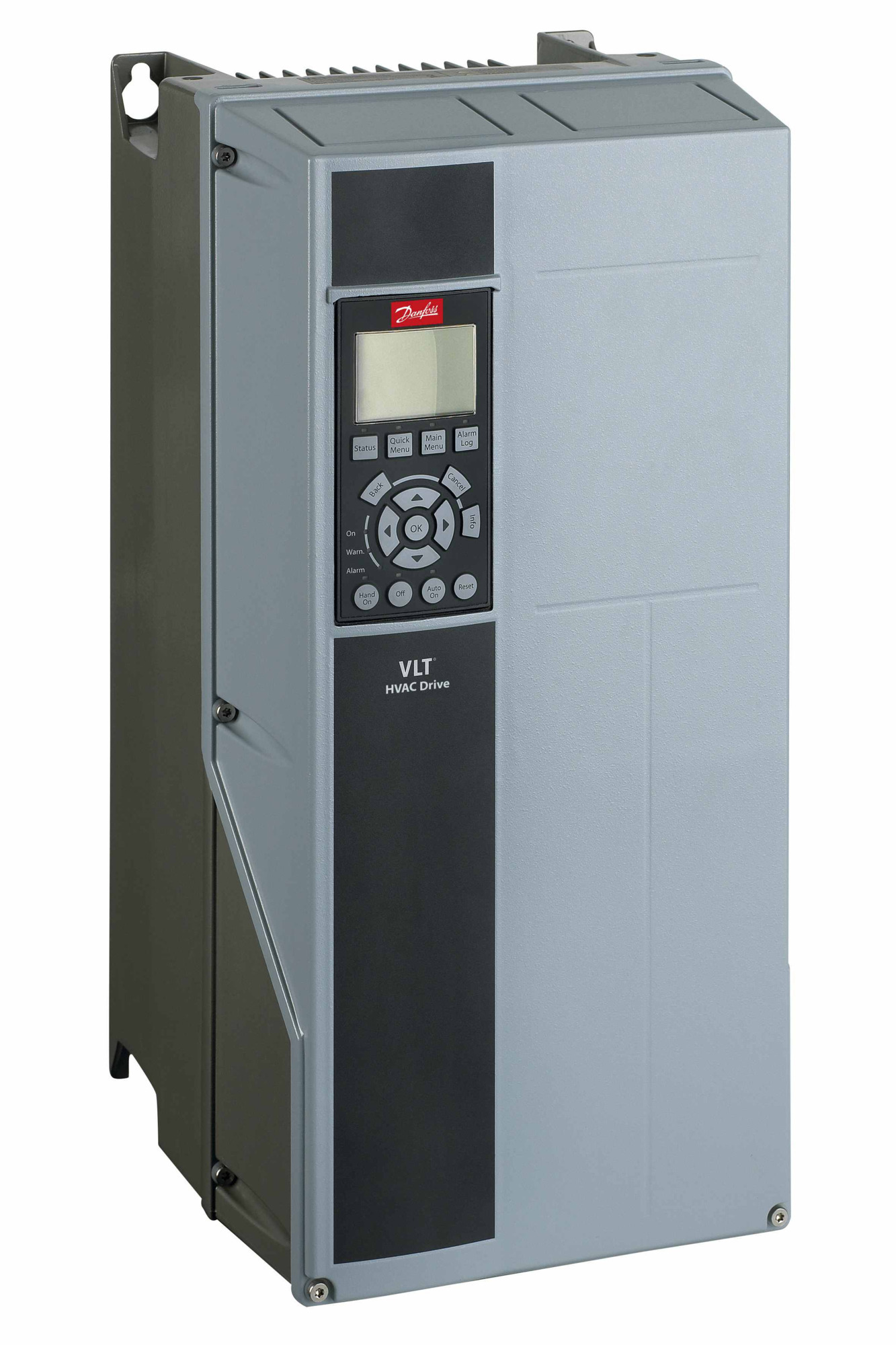

136N3123 Danfoss: Frequency ConverterFC-102P15KT4E21H2XGCXXXSXXXXA0BXCXXXXDXVLT=C2=AE HVAC Drive FC-102(P15K) 15 KW / 20 HP, Three phase380 - 480 VAC, IP21 / Type 1RFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: B1No C1 option, No D optionPROFIBUS DP MCA 101, No B OptionOther options according to Model Code
Gross weight
23.3 kg
Net weight
23 kg
Volume
144.67 l
EAN
5710108909284
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P15K : (P15K) 15 KW / 20 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E21 : IP21 / Type 1
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
A0 : PROFIBUS DP MCA 101
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B1 : B1
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P15KT4E21H2XGC
Typecode Part 2
XXXSXXXXA0BXCXXXXDX
Power 110% (NO) [KW]
15
Height [mm]
494,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
22.2
Power Loss NO [W]
392
Continuous Current (NO) [A]
32
Intermittent Current (NO) [A]
35.2
Calculated Gross Weight [kg]
22.4
Calculated Net Weight [kg]
22.1
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P15KT4E21H2XGC
Modelcode02
XXXSXXXXA0BXCXXXXDX
Recommended Plant
ERR01
130B3383
Back plate IP21/Type 1, IP55/Type 12, B1
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1170
LCP Panel Mounting Kit
130B1212
VLT=C2=AE General Purpose I/O MCB 101, ctd
130B1210
VLT=C2=AE Relay Option MCB 105, coated
130B1208
1xMCB 107 24V DC coat w. mount. brackets
131F3243
FC-102P18KT4E55H1UGCXXXSXXXXAXBXCXXXXDX
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
