136N3640

Part Number: 136N3640
136N3640
Manufacturer
Danfoss
Part number
136N3640
Category

Product Information

Extended Description

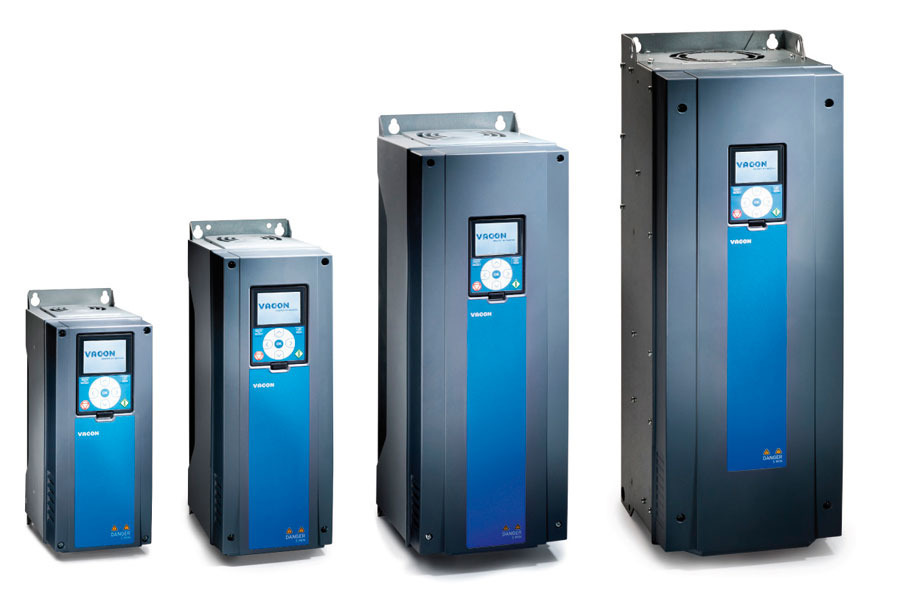

136N3640 Danfoss: Frequency converterVACON0100-3L-0385-5-ED-FLOW+SEBJ+IP54+EMC4+WT03+FL03+DLNL+CIFD+CCET000089+EMAT+GNUL+GALRVACON 100 FLOW380-500 Vac, 385 Amp, IP54/NEMA12Graphical Keypad MK01EMC C4 System ComponentB Slot: F3,3 Relay boardC Slot: No boardD Slot: No boardFieldbus: Std protocol,Modbus,N2,BacNetManual: DutchFrame 10E Slot: BJ,STO, ATEX thermATEX: II (2) GDOther options according to Model code
Gross weight
359.2 kg
Net weight
358.2 kg
Volume
0 l
EAN
5710108914042
Product View (Switch)
GLBL : Global (Standard)
Segment
-FLOW : VACON 100 FLOW
Region Code
-R00 : R00 International
Mains voltage
-5 : 380-500 Vac
Current rating
-0385 : 385 Amp
Installation options
-ED : ED Enclosed Drive
Enclosure
+IP54 : IP54/NEMA12
Control panel
+HMGR : Graphical Keypad MK01
EMC emission limit category
+EMC4 : EMC C4 System Component
Common mode filter (for DM)
+P000 : No Option
DUT filter (for DM)
+P000 : No Option
Brake chopper
+DBNO : No dynamic braking device
Real time clock option
+SRNO : No Battery for real time clock
Configurable power range
NONE : None
Power connections
+P000 : No Power options (+P000)
Cable entry
+Q000 : No option
Additional Equipment B
+Q000 : No option for Qxxx_B (+Q000)
Additonal Equipment C
+Q000 : No additonal option for Qxxx_C
Shipping package
+GSWP : Wooden box as shipping pack
Marine construction
+EMAT : Marine testing, wo marine HW
B-Slot Option Board
+SBF3 : F3,3 Relay board
C- Slot Option Board
+SC00 : No board
D-Slot Option Board
+SD00 : No board
E-Slot Option Board
+SEBJ : BJ,STO, ATEX therm
Internal FB selection
+FBM1 : Std protocol,Modbus,N2,BacNet
Documentation level
+DPAP : Paper Manuals
Document language preference
+DLNL : Dutch
Firmware Language Pack
+FL03 : UK, ES, FR, IT, NL, PT lang
Application
+A0000 : No Application
Parameter Set
+L0000 : No application parameter set
Motor parameter default freq
+LS50 : 50 Hz def motor freq settings
Unit for measure for display
+LSSI : Metric Units of Measure
Labeling options
+LPC1 : no additional labels
UL approval
+GNUL : No Ul Approval (+GNUL)
Marine approval
+GALR : Lloyd's Register
RCM Approval
+GACT : RCM Approval N16307
KC approval
+GAKC : KC Approval
Ukrainian approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Auxilary power supply
+C000 : no option
DC power supply for aux device
+C000 : no option
AC socket for aux devices
+C000 : no option
Input Devices
+CIFD : (+CIFD) Fuse Switch
Common mode filter (for ED)
+P000 : no option
DU/DT, Sine filter (for ED)
+P000 : no option
Terminal Options
+CTIO : I/O Terminals
Door Equipments
+C000 : no option
Cabinet heater
+C000 : no option
Cabinet light
+C000 : no option
Motor heater control
+C000 : no option
Emergency stop options
+C000 : no option
Insulation fault sensor
+C000 : no option
Cabling from top
+C000 : no option
Back channel cooling
+C000 : no option
Cabinet Plinth
+CHPL : Base plint 100 mm
Empty extension segment
NONE : None
Standardized cabinet solution
NONE : None
Engineered cabinet solution
+CCET000089 : Engineered cabinet solution 89
Product Group
VACON : VACON
Product Series
0100 : Vacon 100 series
Phase
-3L : 3 Phase AC Input
Customized
+BM2H : Vacon 100-FLOW
Main Circuit
+M000 : NONE
Firmware
+F0159 : Vacon0100-Flow Software pack
Max output frequency
NONE : None
Terminal Box
+T000 : NONE
Bypass Control Operation Mode
NONE : none_
Bypass Input Type
NONE : none_
Bypass power connection type
NONE : none_
CE approval
+GACE : CE Approval (+GACE)
ATEX Approval
NONE : None
County Specific Approval
NONE : None
Warrenty time
+WT03 : Warranty 24/30 months (+WT03)
Frame Size
MR10 : Frame 10
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0385-5
Modelcode02
-ED-FLOW+SEBJ+IP54+EMC4+WT03
Modelcode03
+FL03+DLNL+CIFD
Modelcode04
+CCET000089+EMAT+GNUL+GALR
Calculated Net Weight [kg]
379.4
Calculated Gross Weight [kg]
380.4
Motor Power Low Overload [kW]
200
Dimensions WxHxD [mm] net
606 X 2155 X 639
Dimensions WxHxD [mm] Gross
775 X 2435 X 880
Dimensions WxHxD [mm]
606X2100X600
Continuous Current (NO) [A]
385
Motor Power HP Low Overload
300
ATEX Marking 1
ATEX: II (2) GD
Typecode Part 1
70-AB3L03855C10B540BM2H
Typecode Part 2
-00122148
Stockcode part 1
70-AB3L03855C10B540BM2H
Stockcode part 2
-00122148
check if complete
OK
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Help Counter
26
Calculated Net Weight
358.2
Method
HORIZONTAL
Sub family identification
NONE : Normal customer ordered
Recommended Plant
ERR01
ECCN US
3A999.a
ECCN EU
X.A.I.003
181B1755
Main fan assembly for MR10 385A 500V
181B2113
IGBT kit 500V
181B2111
Single adapter board
181B2110
Rectifier board
181B2109
Thyristor protection board 380-500V MR10
181B2108
Power supply board 380-690V for MR10
181B2105
Accessories bag MR10 module
181B2231
Fuse 800A 690VAC size 3 aR
181B1961
Input fuse plain blade 700A aR 690VAC si
181B1959
Fuse 1000A 900VAC
181B0586
OPT-E7-V:DeviceNet
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1472
OPT-B2-V+DLES:1RO(NO/NC),1RO(NO),therm
181B1473
OPT-B4-V+DLES:AI,2AO(mA,isol),+24V/EXT
181B1481
OPT-B1-V+DNOT:6 programmableDI/DO
181B1738
OPT-B4-V+DLFR:AI,2AO(mA,isol),+24V/EXT
181B2134
OPT-B2-V+DLDE:1RO(NO/NC),1RO(NO),therm
181B2151
OPT-B2-V+DNOT:1RO(NO/NC),1RO(NO),therm
181B2152
OPT-B4-V+DNOT:AI,2AO(mA,isol),+24V/EXT
130R1167
DrivePro ExWarr Work Shop PG07 66 Month
130R1162
DrivePro ExWarr Work Shop PG07 36 Month
130R1164
DrivePro ExWarr Work Shop PG07 48 Month
130R1163
DrivePro ExWarr Work Shop PG07 42 Month
130R1165
DrivePro ExWarr Work Shop PG07 54 Month
130R1166
DrivePro ExWarr Work Shop PG07 60 Month
130R1168
DrivePro ExWarr Work Shop PG07 72 Month
130R1160
DrivePro ExWarr Work Shop PG07 24 Month
130R1161
DrivePro ExWarr Work Shop PG07 30 Month
130R1068
DrivePro ExWarr Onsite PG07 72 Months
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE 100 FLOW Application Guide VACON 100 Selection Guide VACON=C2=AE 100 dUdt Technical Guide VLT=C2=AE AHF 005-010 FOR VACON=C2=AE 100 HMI Door mounting kit instruction VACON=C2=AE 100 BACnet Installation Manual VACON=C2=AE 100 Door Keypad Instruction VACON=C2=AE 100 Encl. Drives Inst. Manual Danfoss MD 00779152 B2 UL E171278 Danfoss EU-UK DPD01855C Danfoss EU-UK 00737161 D1 Danfoss EU-UK 00737162 D1 T=C3=9CV 01 205 5216 03-20 BV 43073 B0 BV DNV GL TAE00000XZ Rev. 5 KR HMB28683-AC002 LR21105512TA MCAD VACON MR10 ED IP54 OPTBJ_VACON_100 OPTBK_VACON_100 VACON=C2=AE 100 INDUSTRIAL Firmware VACON=C2=AE 100 FLOW Firmware VACON=C2=AE OPT-E7 DeviceNet Firmware VACON=C2=AE OPT-EC EtherCAT Firmware VACON=C2=AE 100 SIMATIC PDM PROFINET IO EDD VACON=C2=AE OPTE3/E5 PROFIBUS GSD VACON=C2=AE OPTE6 CANopen EDS VACON=C2=AE OPTE7 DeviceNet EDS VACON=C2=AE OPTE9 EtherNet/IP EDS VACON=C2=AE OPTE9 PROFINET IO GSDML
