136N6129
Part Number: 136N6129
Product Information
Extended Description

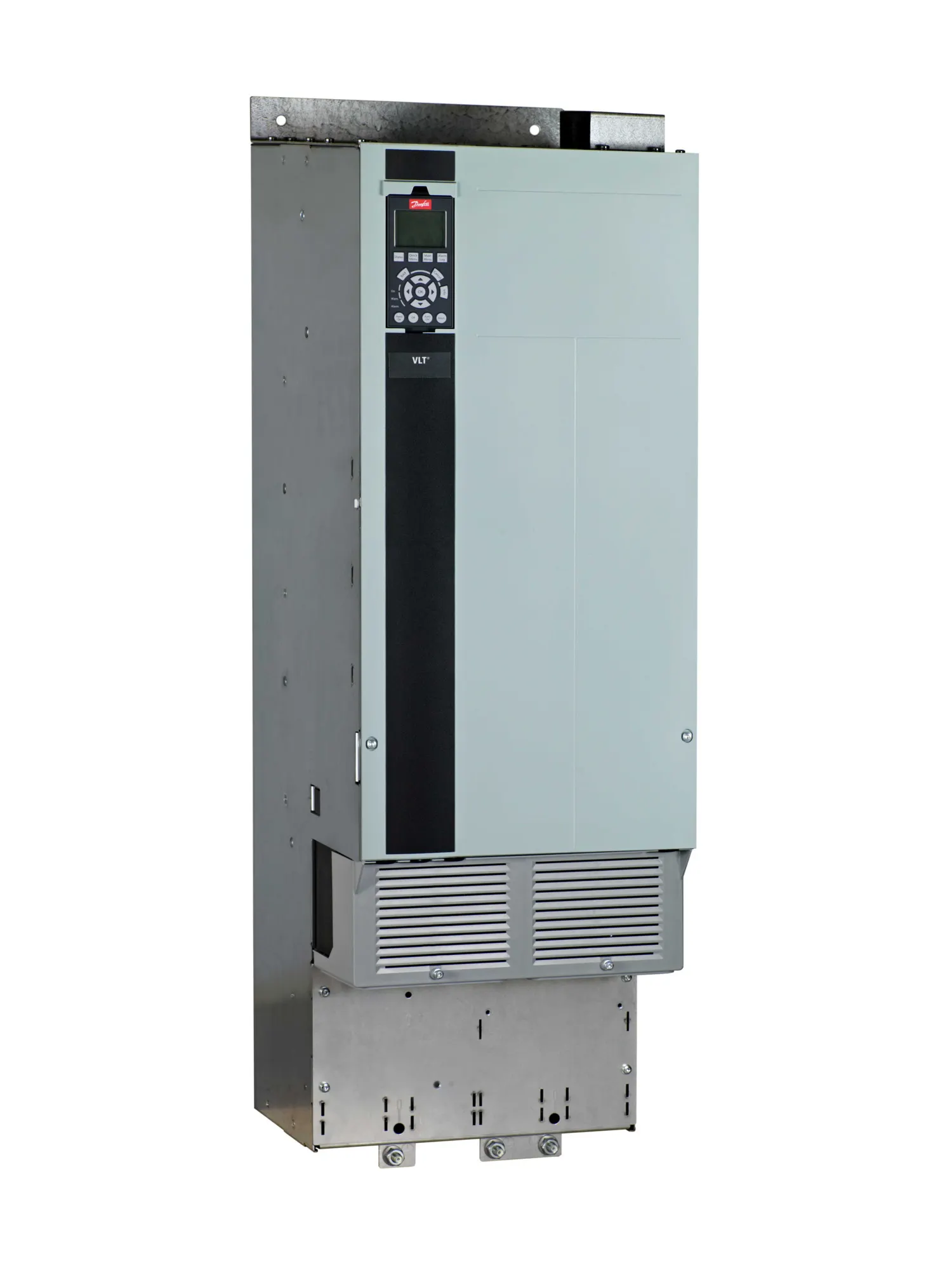

136N6129 Danfoss: Frequency ConverterFC-102N315T4E20H2TGCXXXSXXXXANB2CXRXXDXVLT=C2=AE HVAC Drive FC-102(N315) 315 KW / 450 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI FilterSafe StopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: D4HMCB-113 Ext. Relay Card, No D optionEtherNet/IP MCA 121, MCB-112 PTC Therm. CardATEX: II (2) G [Ex eb Gb] [Exdb Gb] / II (2) D [Ex tb Db]Other options according to Model Code
Gross weight
125.3 kg
Net weight
125 kg
Volume
426.496 l
EAN
5710108940027
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N315 : (N315) 315 KW / 450 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AN : EtherNet/IP MCA 121
B Option
B2 : MCB-112 PTC Therm. Card
C0 Option MCO
CX : No C0 option
C1 Option
R : MCB-113 Ext. Relay Card
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D4H : D4H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102N315T4E20H2TGC
Typecode Part 2
XXXSXXXXANB2CXRXXDX
Power 110% (NO) [KW]
315
Height [mm]
1122,0
Height w/ Regen/Loadshare [mm]
1268,0
Width w/ no C options [mm]
350,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
407
Power Loss NO [W]
6663
Continuous Current (NO) [A]
588
Intermittent Current (NO) [A]
647
ATEX Marking 1
ATEX: II (2) G [Ex eb Gb] [Ex
ATEX Marking 2
db Gb] / II (2) D [Ex tb Db]
Calculated Gross Weight [kg]
125.3
Calculated Net Weight [kg]
125
ECCN EU
X.A.I.003
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N315T4E20H2TGC
Modelcode02
XXXSXXXXANB2CXRXXDX
Recommended Plant
ERR01
176F3527
kit,cooling,in bottom out back,d2h d4h
176F3628
Cooling Kit, in btm/out top, 1800mm D4h
176F3626
Cooling Kit, in back/out back, D4h
176F3634
Cooling Kit, in back/out back, D4h
176F3630
Cooling Kit, in btm/out top, 2000mm, D4h
176F3410
Adapter Plate, D2h/D4h
130B1170
LCP Panel Mounting Kit
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
