136N8935

Part Number: 136N8935
136N8935
Manufacturer
Danfoss
Part number
136N8935
Category

Product Information

Extended Description

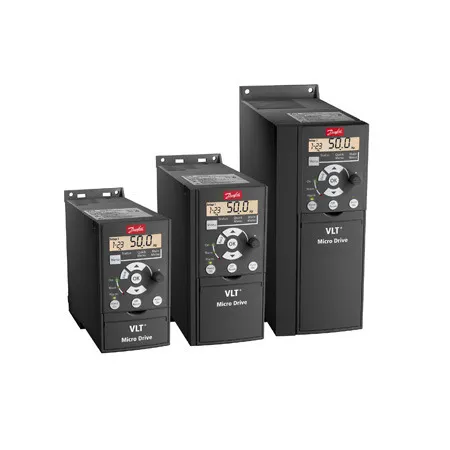

136N8935 Danfoss: Frequency ConverterFC-051P7K5T4E20HXBXCXXXSXXXVLT=C2=AE Micro Drive FC-51(P7K5) 7.5 KW / 10 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisNo RFI FilterBrake chopperNo Loc. Cont. PanelCoated PCB, No Mains OptionM3-FRAMEOther options according to Model code
Gross weight
3.375 kg
Net weight
3.075 kg
Volume
0 l
EAN
5710108968427
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Micro Drive FC-
Micro Drive Series
051 : 51
Power Rating
P7K5 : (P7K5) 7.5 KW / 10 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
HX : No RFI Filter
Brake - Safe Stop
B : Brake chopper
LCP
X : No Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Frame Size
M3 : M3-FRAME
Typecode Part 1
FC-051P7K5T4E20HXBXCXXXSXXX
Modelcode01
FC-051P7K5T4E20HXBXCXXXSXXX
Product Catalog
NO_VIEW : NO VIEW
Calculated Gross Weight [kg]
3.3
Calculated Net Weight [kg]
3
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Recommended Plant
ERR01
132B0102
LCP Remote Mounting Kit,w/ 3m cable
132B0128
FC-051 Spare part kit for frame size M3
132B0984
FC021 Spare part kit for frame size M3
132B3236
Spare part of FC51 M3 cooling fan
132B3238
Spare part of FC51 M5 cooling fan
132B0102
LCP Remote Mounting Kit,w/ 3m cable
132B0101
VLT=C2=AE Control Panel LCP 12, w. potmeter
132B0100
VLT=C2=AE Control Panel LCP 11 w/o potmeter
132B0132
LCP Remote Mounting Cable, 3m
132B0131
Blank Cover
132B0110
IP21/Type1 conversion kit, M3
132B0107
Decoupling Plate Mounting Kit, M3
132B0105
Nema 1 Conversion Kit, M3
175N2584
VLT=C2=AE EtherNet/IP Modbus TCP gateway
132B0657
FC21 LCP spare part
130R1011
DrivePro ExWarr Onsite PG02 30 Months
130R1118
DrivePro ExWarr Work Shop PG02 72 Month
130R1110
DrivePro ExWarr Work Shop PG02 24 Month
130R1112
DrivePro ExWarr Work Shop PG02 36 Month
130R1111
DrivePro ExWarr Work Shop PG02 30 Month
130R1113
DrivePro ExWarr Work Shop PG02 42 Month
130R1115
DrivePro ExWarr Work Shop PG02 54 Month
130R1116
DrivePro ExWarr Work Shop PG02 60 Month
130R1117
DrivePro ExWarr Work Shop PG02 66 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
VLT=C2=AE Micro Drive FC 51 Selection Guide VLT=C2=AE Brake Resistor MCE 101 VLT=C2=AE Micro Drive FC 51 VLT=C2=AE FC 51 De-coupling Plate for M1-M2 VLT=C2=AE FC 51 De-coupling Plate for M3 VLT=C2=AE FC 51 Type1 Kit for M1 M2 M3 VLT=C2=AE LCP Remote Mounting Kit VLT=C2=AE Micro Drive FC 51 DIN Rail Kit VLT=C2=AE Micro Drive FC 51 IP21 Kit VLT=C2=AE Micro Drive FC 51 LCP Mounting SASO KSA R-205899 Danfoss EU 00729230 A5 Danfoss EU-UK 00730657 A4 Danfoss MD 00723827 A1 Danfoss MD 00729876 A4 Danfoss MD 00732787 A1 Danfoss MD 00738658 A3 VLT=C2=AE Micro Drive Wiring Schematic FC 51 FC-051P7K5T4E20HXBXCXXXSXXX lcp_micro FC 51 M3 drawing VLT=C2=AE Motion Control Tool MCT31
