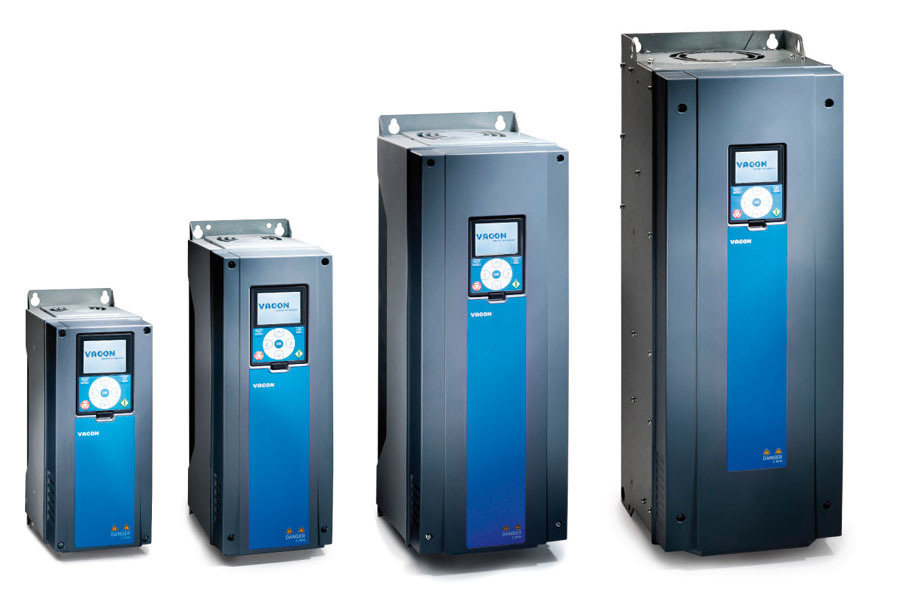

136U0264

Part Number: 136U0264
136U0264
Manufacturer
Danfoss
Part number
136U0264
Category

Product Information

Extended Description

136U0264 Danfoss: Frequency converterVACON0100-3L-0205-5-ED+SEBJ+SRBT+FL03+DLES+FBIE+CAPT+CAPD+CAPS+POCM+CDLP+CACL+CPS1+GNULVACON 100 Industrial380-500 Vac, 205 Amp, IP21/NEMA1Graphical Keypad MK01C3 Commercial&Industry EnvironB Slot: F3,3 Relay boardC Slot: No boardD Slot: No boardFieldbus: IndEth (ProfinetIO,EthernetIP)Manual: SpanishFrame 08E Slot: BJ,STO, ATEX thermATEX: II (2) GDOther options according to Model code
Gross weight
182.7 kg
Net weight
181.7 kg
Volume
0 l
EAN
5710108982560
Product View (Switch)
GLBL : Global (Standard)
Segment
NONE : VACON 100 Industrial
Region Code
-R00 : R00 International
Mains voltage
-5 : 380-500 Vac
Current rating
-0205 : 205 Amp
Installation options
-ED : ED Enclosed Drive
Enclosure
+IP21 : IP21/NEMA1
Control panel
+HMGR : Graphical Keypad MK01
EMC emission limit category
+EMC3 : C3 Commercial&Industry Environ
Common mode filter (for DM)
+P000 : No Option
DUT filter (for DM)
+P000 : No Option
Brake chopper
+DBNO : No dynamic braking device
Real time clock option
+SRBT : Battery for real time clock
Configurable power range
NONE : None
Power connections
+P000 : No Power options (+P000)
Cable entry
+Q000 : No option
Additional Equipment B
+Q000 : No option for Qxxx_B (+Q000)
Additonal Equipment C
+Q000 : No additonal option for Qxxx_C
Shipping package
+GSWP : Wooden box as shipping pack
Marine construction
+E000 : no option
B-Slot Option Board
+SBF3 : F3,3 Relay board
C- Slot Option Board
+SC00 : No board
D-Slot Option Board
+SD00 : No board
E-Slot Option Board
+SEBJ : BJ,STO, ATEX therm
Internal FB selection
+FBIE : IndEth (ProfinetIO,EthernetIP)
Documentation level
+DPAP : Paper Manuals
Document language preference
+DLES : Spanish
Firmware Language Pack
+FL03 : UK, ES, FR, IT, NL, PT lang
Application
+A0000 : No Application
Parameter Set
+L0000 : No application parameter set
Motor parameter default freq
+LS50 : 50 Hz def motor freq settings
Unit for measure for display
+LSSI : Metric Units of Measure
Labeling options
+LPC1 : no additional labels
UL approval
+GNUL : No Ul Approval (+GNUL)
Marine approval
NONE : None
RCM Approval
+GACT : RCM Approval N16307
KC approval
+GAKC : KC Approval
Ukrainian approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Auxilary power supply
+CAPT : Aux voltage transformer
DC power supply for aux device
+CAPD : 24V DC power supply
AC socket for aux devices
+CAPS : 230 VAC socket
Input Devices
+CIFU : (+CIFU) AC fuses
Common mode filter (for ED)
+POCM : Common mode
DU/DT, Sine filter (for ED)
+P000 : no option
Terminal Options
+CTIO : I/O Terminals
Door Equipments
+CDLP : Signal lights and reset button
Cabinet heater
+C000 : no option
Cabinet light
+CACL : Cabinet light
Motor heater control
+C000 : no option
Emergency stop options
+CPS1 : Emergency Stop Cat1
Insulation fault sensor
+C000 : no option
Cabling from top
+C000 : no option
Back channel cooling
+C000 : no option
Cabinet Plinth
+CHPL : Base plint 100 mm
Empty extension segment
NONE : None
Standardized cabinet solution
NONE : None
Engineered cabinet solution
NONE : None
Product Group
VACON : VACON
Product Series
0100 : Vacon 100 series
Phase
-3L : 3 Phase AC Input
Customized
+BM26 : Vacon 100
Main Circuit
+M000 : NONE
Firmware
+F0072 : Vacon0100 Software package
Max output frequency
NONE : None
Terminal Box
+T000 : NONE
Bypass Control Operation Mode
NONE : none_
Bypass Input Type
NONE : none_
Bypass power connection type
NONE : none_
CE approval
+GACE : CE Approval (+GACE)
ATEX Approval
NONE : None
County Specific Approval
NONE : None
Warrenty time
+WT01 : Warranty 12/18 months (+WT01)
Frame Size
MR08 : Frame 08
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0205-5
Modelcode02
-ED+SEBJ+SRBT+FL03+DLES+FBIE
Modelcode03
+CAPT+CAPD+CAPS+POCM+CDLP+CACL
Modelcode04
+CPS1+GNUL
Calculated Net Weight [kg]
181.7
Calculated Gross Weight [kg]
182.7
Motor Power Low Overload [kW]
110
Motor Power High Overload [kW]
90
Dimensions WxHxD [mm] net
406 X 2155 X 639
Dimensions WxHxD [mm] Gross
775 X 2435 X 880
Continuous Current (NO) [A]
205
Continuous Current (HO) [A]
170
Motor Power HP Low Overload
150
Motor Power HP High Overload
125
ATEX Marking 1
ATEX: II (2) GD
Typecode Part 1
70-AB3L02055C08B230BM26
Typecode Part 2
-00124130
Stockcode part 1
70-AB3L02055C08B230BM26
Stockcode part 2
-00124130
check if complete
OK
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Help Counter
10
Calculated Net Weight
181.7
Method
HORIZONTAL
Sub family identification
NONE : Normal customer ordered
Recommended Plant
ERR01
ECCN US
3A999.a
ECCN EU
Y901
181B1462
Rectifier busbar kit
181B1459
EMC board 500V for MR08
181B1404
Connecting busbar
181B1403
T60404-N4644-X0 500A current sensor
181B1401
Discharging resistor assembly 48k 1 mm
181B1397
DC busbar kit
181B1396
DC choke busbar kit
181B1962
Control extension cable
181B1951
Fuse plain blade 315A aR 690VAC size 1
181B1950
Aux power supply 24VDC 60W
181B0586
OPT-E7-V:DeviceNet
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1472
OPT-B2-V+DLES:1RO(NO/NC),1RO(NO),therm
181B1473
OPT-B4-V+DLES:AI,2AO(mA,isol),+24V/EXT
181B1481
OPT-B1-V+DNOT:6 programmableDI/DO
181B1738
OPT-B4-V+DLFR:AI,2AO(mA,isol),+24V/EXT
181B2134
OPT-B2-V+DLDE:1RO(NO/NC),1RO(NO),therm
181B2151
OPT-B2-V+DNOT:1RO(NO/NC),1RO(NO),therm
181B2152
OPT-B4-V+DNOT:AI,2AO(mA,isol),+24V/EXT
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE 100 INDUSTRIAL Application Guide VACON=C2=AE 100 Solar Pump Application Guide VACON 100 Selection Guide VACON=C2=AE 100 dUdt Technical Guide HMI Door mounting kit instruction VACON=C2=AE 100 BACnet Installation Manual VACON=C2=AE 100 Door Keypad Instruction VACON=C2=AE 100 Encl. Drives Inst. Manual Danfoss MD 00779152 B2 UL E171278 Danfoss EU-UK DPD01855C Danfoss EU-UK 00737161 D1 Danfoss EU-UK 00737162 D1 T=C3=9CV 01 205 5216 03-20 BV 43073 B0 BV DNV GL TAE00000XZ Rev. 5 KR HMB28683-AC002 LR21105512TA MCAD VACON 100 MR8 IP54 OPTBJ_VACON_100 MCAD VACON 100 MR8 ED IP21 VACON0100-3L-0205-5 OPTBK_VACON_100 VACON=C2=AE 100 INDUSTRIAL Firmware VACON=C2=AE 100 FLOW Firmware VACON=C2=AE OPT-E7 DeviceNet Firmware VACON=C2=AE OPT-EC EtherCAT Firmware VACON=C2=AE 100 SIMATIC PDM PROFINET IO EDD VACON=C2=AE OPTE3/E5 PROFIBUS GSD VACON=C2=AE OPTE6 CANopen EDS VACON=C2=AE OPTE7 DeviceNet EDS VACON=C2=AE OPTE9 EtherNet/IP EDS VACON=C2=AE OPTE9 PROFINET IO GSDML
