136U0623

Part Number: 136U0623
136U0623
Manufacturer
Danfoss
Part number
136U0623
Category

Product Information

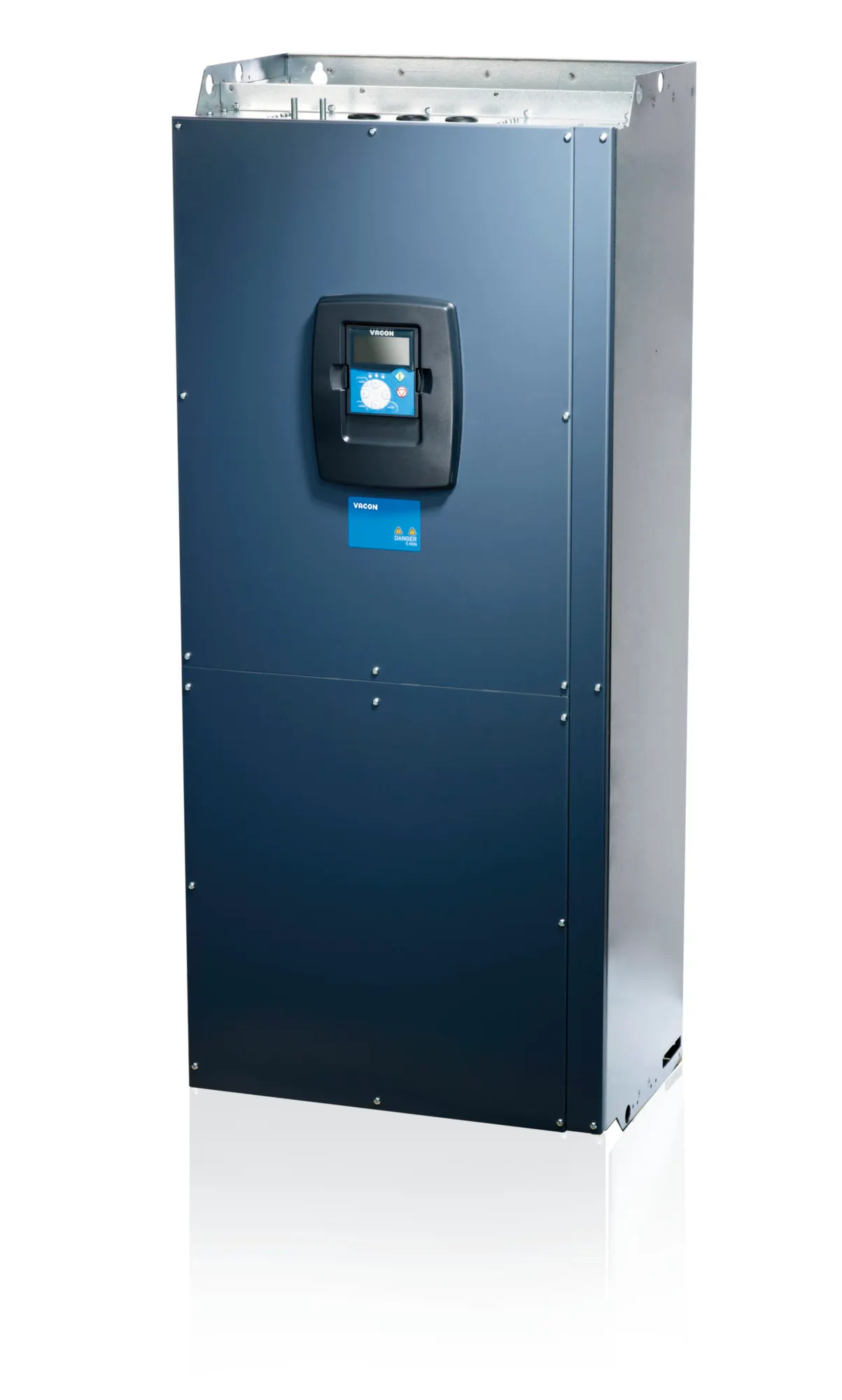

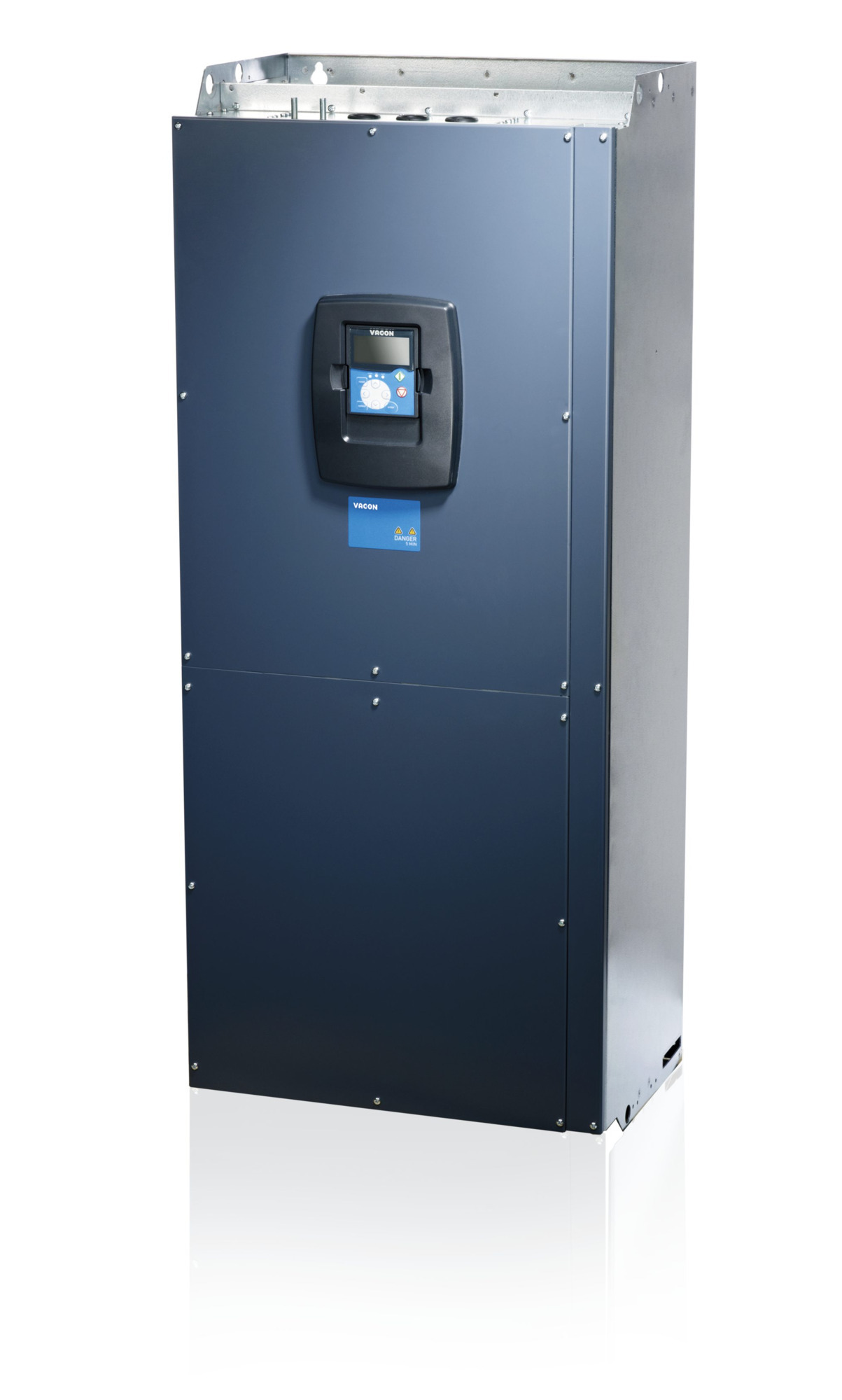

Extended Description

136U0623 Danfoss: NXP03005-A2T0BSG-A9A2000000+DNOTVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 300 Amp,IP21/NEMA1Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: OPTA1 with 2,5mm2 conn.B Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: No boardManual: EnglishFrame 09Other options according to Model code
Gross weight
147 kg
Net weight
146 kg
Volume
0 l
EAN
5710108986209
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0300 : 300 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
2 : IP21/NEMA1
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
B : DC Connection with choke
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLC : Inch conduit plate
Option Slot A
A9 : OPTA1 with 2,5mm2 conn.
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DNOT : No manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR09 : Frame 09
Power rating
160 : 160 kW/250 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-030052
Typecode Part 2
-000011313
Salestext
FR0903005-2T
Modelcode01
NXP03005-A2T0BSG-
Modelcode02
A9A2000000
Modelcode05
+DNOT
Calculated Net Weight [kg]
146
Calculated Gross Weight [kg]
147
Motor Power Low Overload [kW]
160
Motor Power High Overload [kW]
132
Dimensions WxHxD [mm]
480X1150X362
Continuous Current (NO) [A]
300
Continuous Current (HO) [A]
245
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-030052-117R93
Stock Code
7DP-030052
check if complete
OK
Calculated Net Weight
146
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1586
Fuse middle insulator
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1636
M6x12 ISO7380 Z4-1 TX ZN
181B1635
M10 Sesko SFS 3738 KP 250
181B1634
M10 Spring washer DIN 679
181B1633
M4x8 DIN 84 PA 1000pcs
181B1632
M6x14 DIN 7985 Z4-1 TX ZN
181B1631
M8 Spring washer DIN 6796
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1325
DriveProStart-UP ctrl. IFT test medium
130R1322
DrivePro Start-Up special applic. medium
130R1315
DrivePro Start-Up 1 day on-demand medium
130R1314
DrivePro Start-Up 1 day pre-order medium
130R1306
DrivePro Start-Up unit on-demand medium
130R1305
DrivePro Start-Up unit pre-order medium
136L2128
7DP-030055-000009156
130R1382
DrivePro Start-Up =C2=BD day pre-order medi
130R1383
DrivePro Start-Up =C2=BD day on-demand medi
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE NX All in One Application Guide VACON NXP Common DC Bus Selection Guide VACON NXP Grid Converter Selection Guide VACON NXP System Drive Selection Guide VACON=C2=AE NX Door Keypad Mounting Instr. VACON-NX-Line-Voltage-Measurement-OG VACON=C2=AE NXS NXP Air-cooled OG EPD Vacon NXP FR9 Danfoss MD 00779152 B2 IFA 2001240 UL E171278 Danfoss EU DPD02212.C Danfoss EU-UK 00736939.E1 Danfoss EU-UK 00760715 D1 Danfoss EU-UK DPD01854 E T=C3=9CV CM-088-17 T=C3=9CV Z10 099224 0001 Rev. 01 Danfoss MD 00773531.A2 VaconNXP_FR9_IP21 MCAD VACON NXS NXP FR9 IP21 DC terminal MCAD VACON NXS NXP FR9 IP21 MCAD VACON NXS NXP FR9 IP21 DC cover MCAD VACON NXS NXP FR9 IP54 Flange OPTA9_VACON_NX OPTA2_VACON_NX VACON=C2=AE NXP Advanced Application VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware
