136U1073

Part Number: 136U1073
136U1073
Manufacturer
Danfoss
Part number
136U1073
Category

Product Information

Extended Description

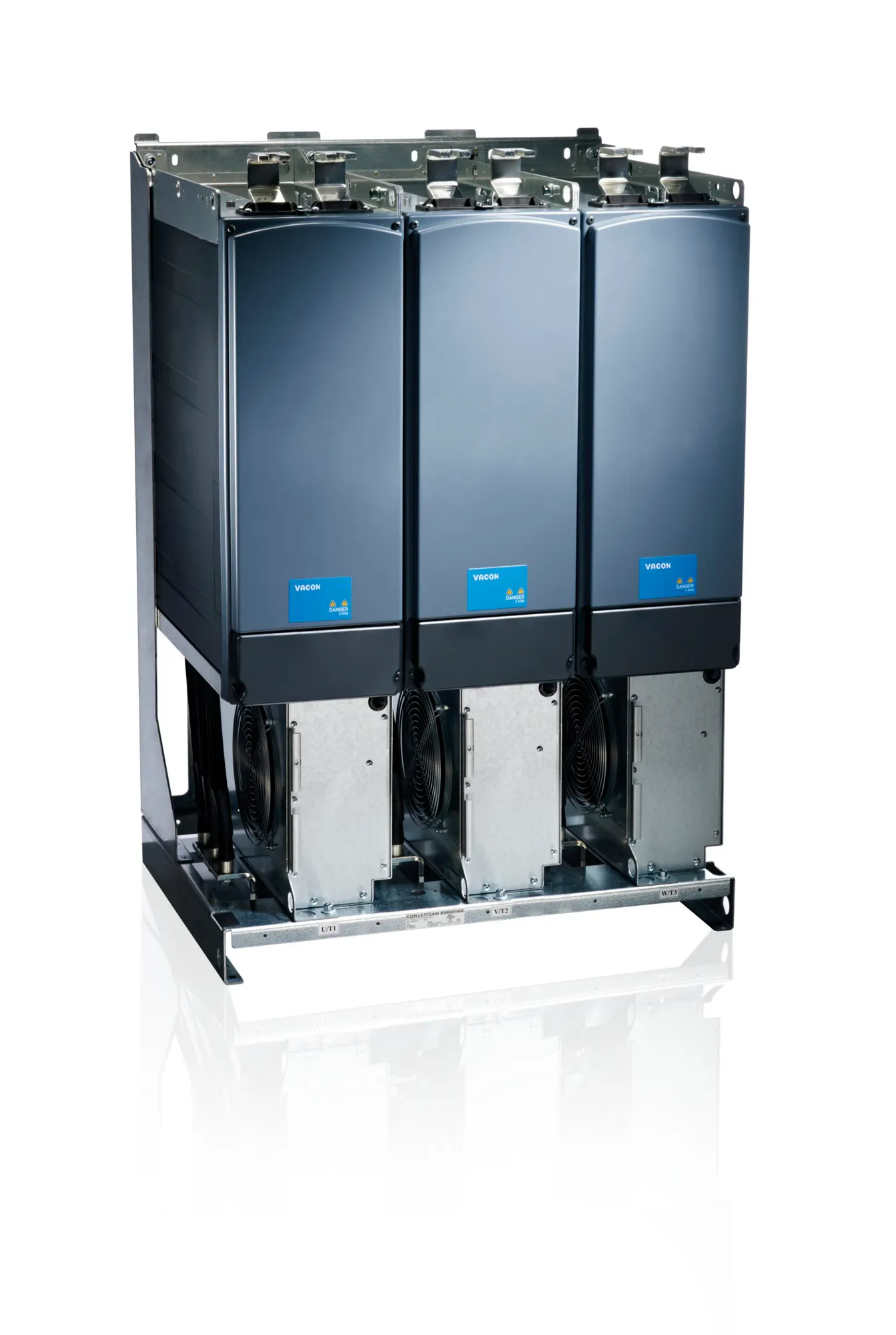

136U1073 Danfoss: NXA13005-A0T02SG-A1A20000CPVacon Active Front-End Unit380 =E2=80=93 500 Vac (465-800 Vdc), 1300 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: PROFINETManual: EnglishFrame 13 INUOther options according to Model code
Gross weight
307 kg
Net weight
306 kg
Volume
0 l
EAN
5710108990923
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
1300 : 1300 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
CP : PROFINET
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+ARFIFF02 : AFE application NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FI13 : Frame 13 INU
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-130050
Typecode Part 2
-000021415
Salestext
FI1313005-0T
Modelcode01
NXA13005-A0T02SG-
Modelcode02
A1A20000CP
Calculated Net Weight [kg]
292
Calculated Gross Weight [kg]
293
Motor Power Low Overload [kW]
874
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
708X1030X553
Continuous Current (NO) [A]
1300
Continuous Current (HO) [A]
1150
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DA-130050-117RHB
Stock Code
7DA-130050
check if complete
OK
Calculated Net Weight
306
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1586
Fuse middle insulator
181B1587
DC bus bar insulator kit
181B1588
EMC-shield - feed busbar insulator
181B1454
Measurement board 500V/690V NX FI13-FI14
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
130R1326
DrivePro Start-UP ctrl. IFT test high
130R1323
DrivePro Start-Up special applic. high
130R1317
DrivePro Start-Up 1 day on-demand high
130R1316
DrivePro Start-Up 1 day pre-order high
130R1308
DrivePro Start-Up Unit on-demand high
VACON=C2=AE NX All in One Application Guide VACON NXP and VACON NXC Selection Guide VACON NXP Common DC Bus Selection Guide VACON NXP Grid Converter Selection Guide VACON NXP System Drive Selection Guide VACON=C2=AE NXP System Drive Hardware Manual Cybersecurity for Vacon NX Drives VACON=C2=AE NX Active Front End User Manual VACON=C2=AE NX Filters User Manual VACON NXP and VACON NXC Selection Guide - US English Danfoss MD 00779152 B2 UL E171278 Danfoss EU-UK 00736949 E1 ABS 24-00T2545447-PDA ABS 24-00T2545449-PDA BV 14584-DO BV CRS 03-001990-031694 DNV GL TAE000013B Rev. 4 KR HMB 28683-AC001 KR HMB28683-AC003 Vacon_Common_DCbus_FI13 OPTA1_VACON_NX OPTA2_VACON_NX VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware VACON=C2=AE OPT-CQ Ethernet/IP Firmware
