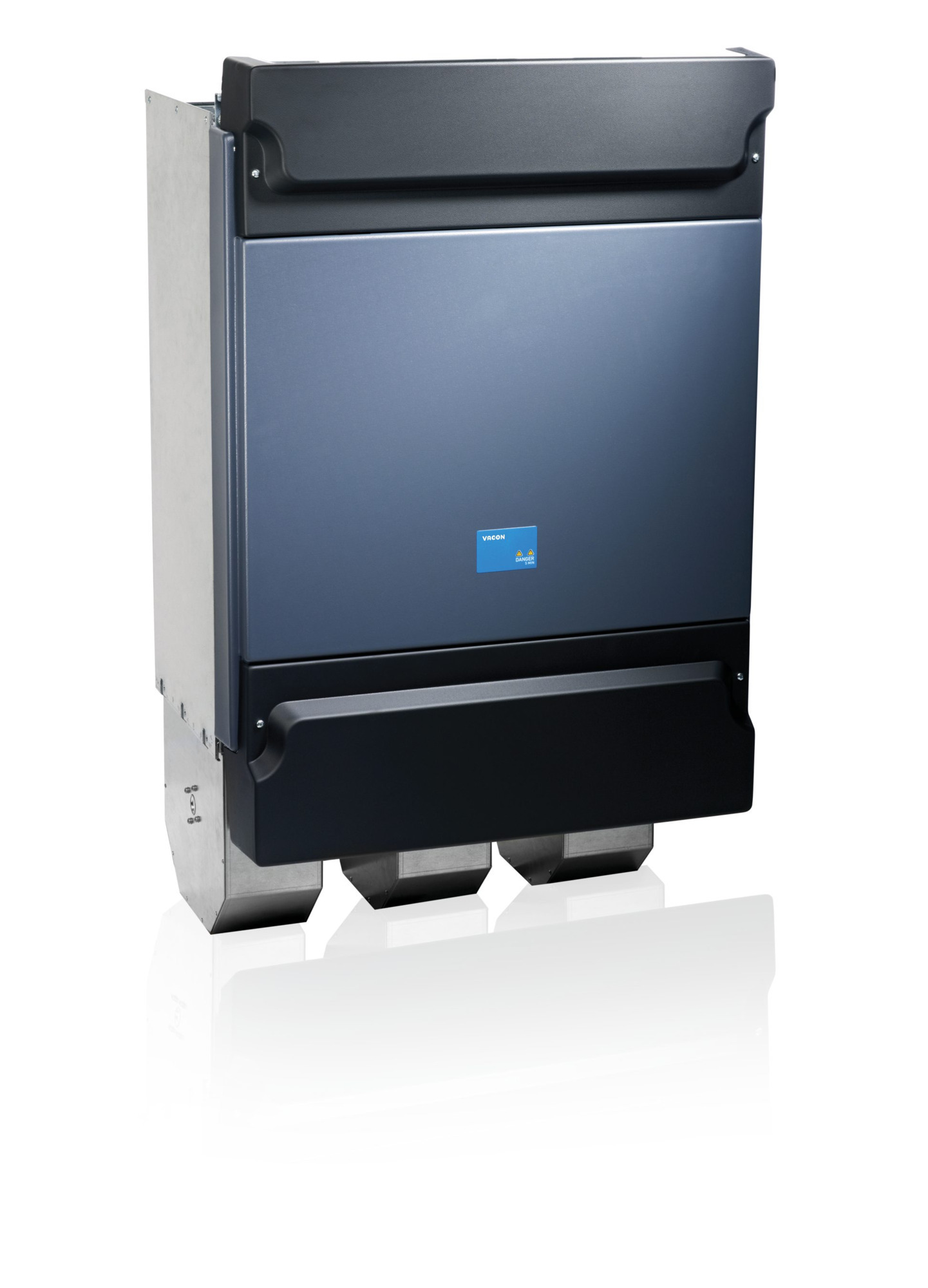

136U1165

Part Number: 136U1165
136U1165
Manufacturer
Danfoss
Part number
136U1165
Category

Product Information

Extended Description

136U1165 Danfoss: NXP06505-A0T0NSG-A1A3B4D600+FL21+DLSEVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 650 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 1RO(NO/NC),1RO(NC), thermC Slot: AI,2AO(mA,isol),+24V/EXTD Slot: CAN-MonBus galv.decoupledE Slot: No boardManual: SwedishFrame 11Other options according to Model code
Gross weight
379 kg
Net weight
378 kg
Volume
0 l
EAN
5710108991494
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0650 : 650 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
N : 6-puls No choke for Spare unit
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A3 : 1RO(NO/NC),1RO(NC), therm
Option Slot C
B4 : AI,2AO(mA,isol),+24V/EXT
Option Slot D
D6 : CAN-MonBus galv.decoupled
Option Slot E
00 : No board
Firmware language package
+FL21 : UK,FI,SE,DK,DE;Nordic
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLSE : Swedish
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR11 : Frame 11
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-065050
Typecode Part 2
-000025145
Salestext
FR1106505-0T
Modelcode01
NXP06505-A0T0NSG-
Modelcode02
A1A3B4D600
Modelcode03
+FL21
Modelcode05
+DLSE
Calculated Net Weight [kg]
210
Calculated Gross Weight [kg]
211
Motor Power Low Overload [kW]
355
Motor Power High Overload [kW]
315
Dimensions WxHxD [mm]
709X1206X503
Continuous Current (NO) [A]
650
Continuous Current (HO) [A]
590
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-065050-117RNS
Stock Code
7DP-065050
check if complete
OK
Calculated Net Weight
378
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B1560
DC link busbar kit 500V right
181B1562
Control box assembly NX light blue
181B1457
Wire 1 bridge
181B1456
Driver supply wire
181B1453
Measurement board right
181B1751
Handle OHB 175J12 ABB
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1637
DC busbar collector kit for FR11
181B1636
M6x12 ISO7380 Z4-1 TX ZN
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1074
DrivePro ExWarr Onsite PG08 48 Months
130R1073
DrivePro ExWarr Onsite PG08 42 Months
130R1075
DrivePro ExWarr Onsite PG08 54 Months
130R1076
DrivePro ExWarr Onsite PG08 60 Months
130R1175
DrivePro ExWarr Work Shop PG08 54 Month
130R1177
DrivePro ExWarr Work Shop PG08 66 Month
130R1178
DrivePro ExWarr Work Shop PG08 72 Month
130R1176
DrivePro ExWarr Work Shop PG08 60 Month
130R1170
DrivePro ExWarr Work Shop PG08 24 Month
130R1172
DrivePro ExWarr Work Shop PG08 36 Month
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE NX All in One Application Guide VACON NXP Common DC Bus Selection Guide VACON NXP Grid Converter Selection Guide VACON NXP System Drive Selection Guide VACON=C2=AE NX Door Keypad Mounting Instr. VACON=C2=AE NXP IP00 Modules Quick Guide VACON-NX-Line-Voltage-Measurement-OG VACON=C2=AE NXP IP00 Modules Danfoss MD 00779152 B2 IFA 2001240 UL E171278 Danfoss EU DPD02212.C Danfoss EU-UK 00736939.E1 Danfoss EU-UK 00760715 D1 Danfoss EU-UK DPD01854 E T=C3=9CV CM-088-17 T=C3=9CV Z10 099224 0001 Rev. 01 Danfoss MD 00773531.A2 VaconNXP_FR11_IP00 MCAD VACON NXS NXP FR11 IP00 Terminal OPTA1_VACON_NX MCAD VACON NXS NXP FR11 IP00 OPTA3_VACON_NX VACON=C2=AE NXP Advanced Application VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware
