136U5046

Part Number: 136U5046
136U5046
Manufacturer
Danfoss
Part number
136U5046
Category

Product Information

Extended Description

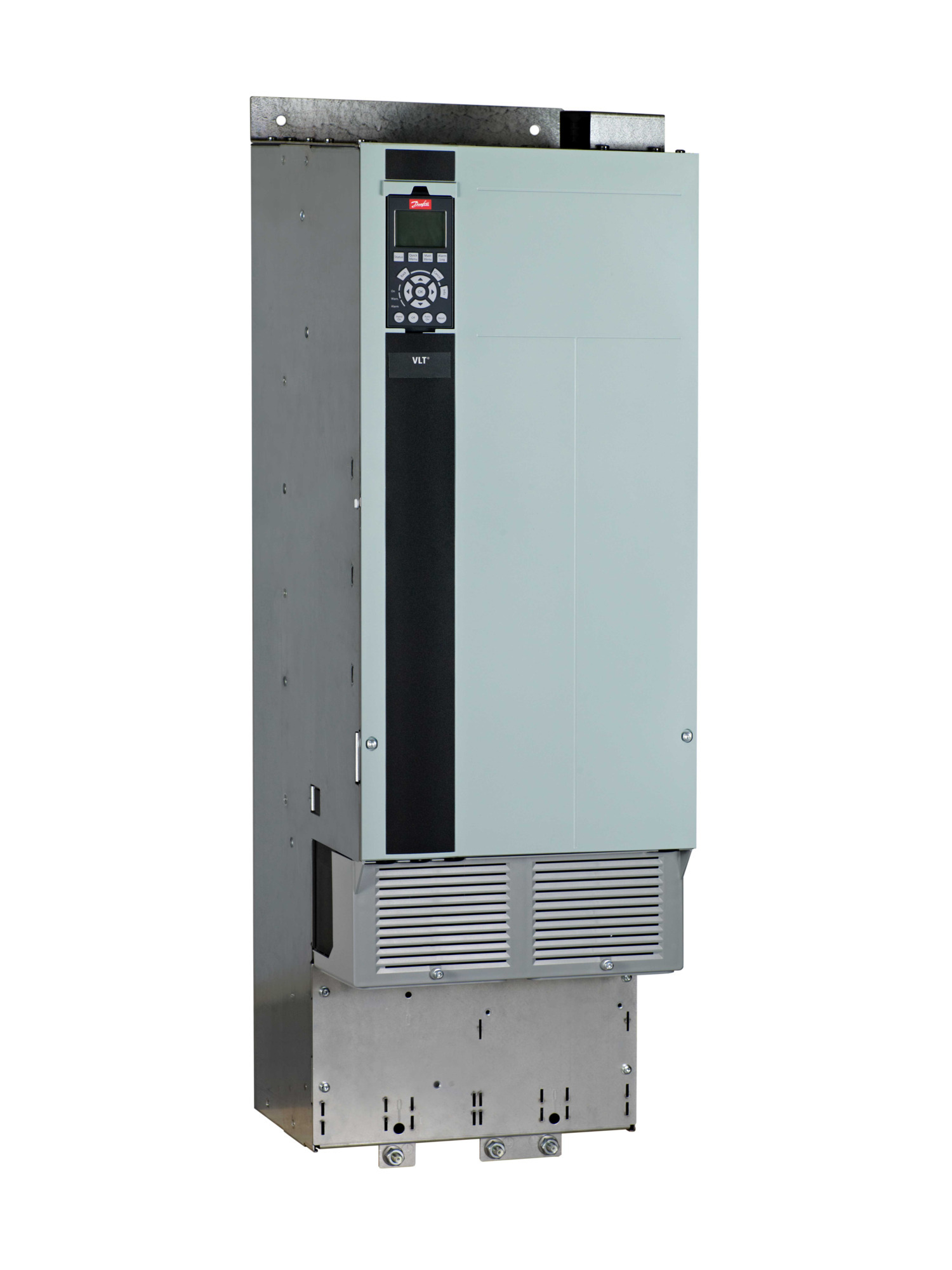

136U5046 Danfoss: Frequency ConverterFC-102N132T4E20H4TGCXXXSXXXXAQBXCXXXXDXVLT=C2=AE HVAC Drive FC-102(N132) 132 KW / 200 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI class A1 (C2)Safe StopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: D3HNo C1 option, No D optionModbus TCP MCA 122, No B OptionOther options according to Model Code
Gross weight
62.3 kg
Net weight
62 kg
Volume
426.496 l
EAN
5714853030668
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N132 : (N132) 132 KW / 200 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H4 : RFI class A1 (C2)
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AQ : Modbus TCP MCA 122
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D3H : D3H
Product Catalog
GLBL : Global (Standard)
Typecode Part 1
FC-102N132T4E20H4TGC
Typecode Part 2
XXXSXXXXAQBXCXXXXDX
Power 110% (NO) [KW]
132
Height [mm]
909,0
Height w/ Regen/Loadshare [mm]
1004,0
Width w/ no C options [mm]
250,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
180
Power Loss NO [W]
2949
Continuous Current (NO) [A]
260
Intermittent Current (NO) [A]
286
Calculated Gross Weight [kg]
62.3
Calculated Net Weight [kg]
62
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N132T4E20H4TGC
Modelcode02
XXXSXXXXAQBXCXXXXDX
176F3627
Cooling Kit, in btm/ out top, 1800, D3h
176F3625
Cooling Kit, in back/ out back, D3h
176F3633
Cooling Kit, in back/out back, D3h
176F3629
Cooling Kit, in btm/out top, 2000mm, D3h
176F3409
Adapter Plate, D1h/D3h
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1170
LCP Panel Mounting Kit
130B1212
VLT=C2=AE General Purpose I/O MCB 101, ctd
130B1210
VLT=C2=AE Relay Option MCB 105, coated
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
