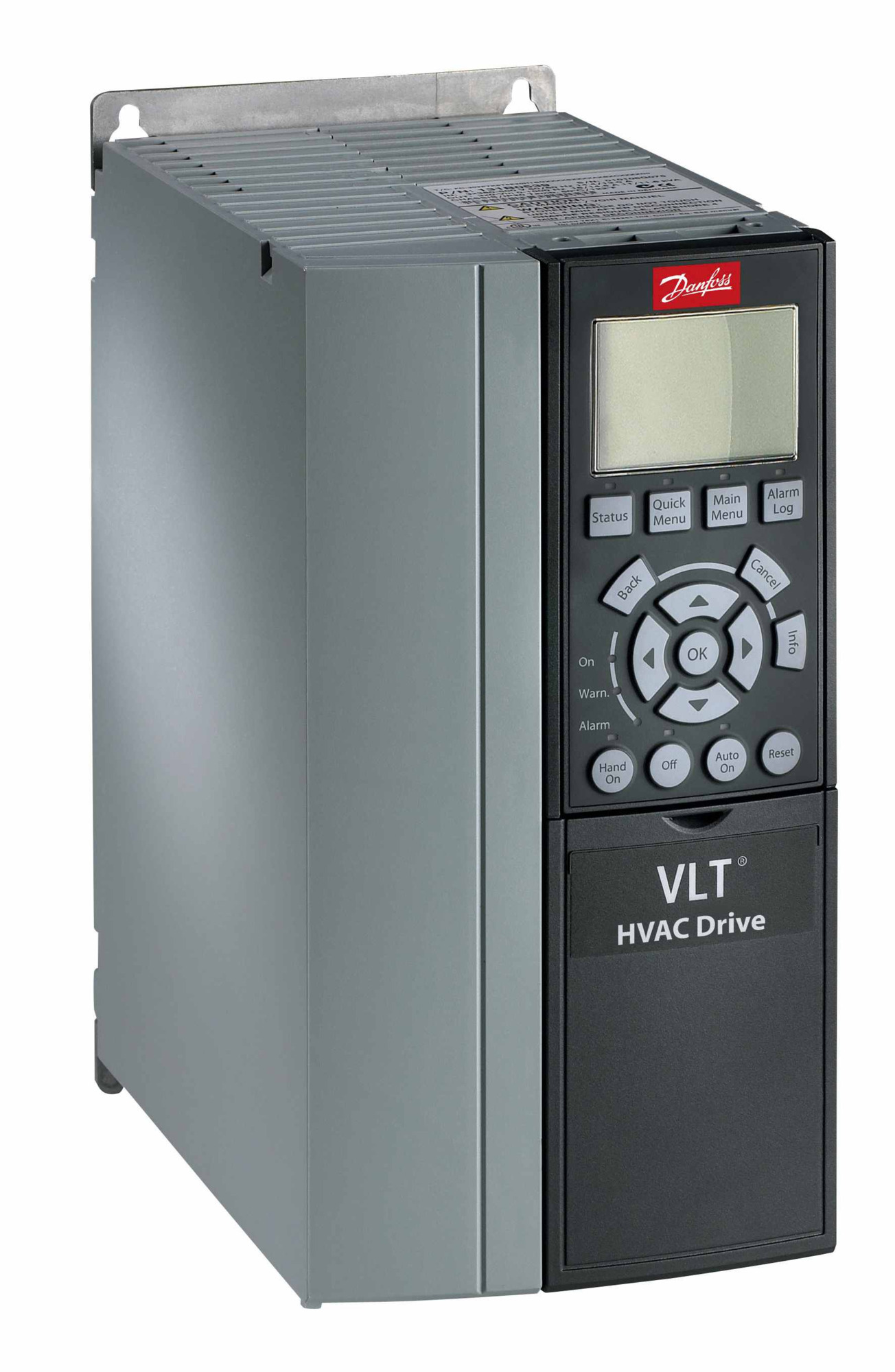

136U7264

Part Number: 136U7264
136U7264
Manufacturer
Danfoss
Part number
136U7264
Category

Product Information

Extended Description

136U7264 Danfoss: Frequency converterFC-302P7K5T5E20H2XGXXXXSXXXXALB6CXXXXDXVLT=C2=AE AutomationDrive FC-302(P7K5) 7.5 KW / 10 HP, Three phase380 - 500 VAC, (E20) IP20 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: A3No C1 option, No D optionPROFINET MCA 120, MCB-150 Safe Option TTLOther options according to Model code
Gross weight
6.84 kg
Net weight
6.31 kg
Volume
27.246 l
EAN
5714853053483
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
P7K5 : (P7K5) 7.5 KW / 10 HP
Phase
T : Three phase
Mains Voltage
5 : 380 - 500 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
B6 : MCB-150 Safe Option TTL
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
A3 : A3
Typecode Part 1
FC-302P7K5T5E20H2XGX
Typecode Part 2
XXXSXXXXALB6CXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 160% (HO) [KW]
7.5
Height [mm]
268,0
Width w/ no C options [mm]
130,0
Width w/ two C options [mm]
190,0
Depth [mm]
205,0
Depth with Option A/B [mm]
220,0
kVA
11.1
Power Loss HO [W]
225
Continuous Current (HO) [A]
16
Intermittent Current (HO) [A]
25.6
Calculated Gross Weight [kg]
6.84
Calculated Net Weight [kg]
6.31
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302P7K5T5E20H2XGX
Modelcode02
XXXSXXXXALB6CXXXXDX
Recommended Plant
ERR01
130B7635
VLT=C2=AE Lift Controller MCO 361
130B7531
Mounting Kit f. C Option, 60mm, A2/A3
130B7530
Mounting Kit f. C Option, 40mm, A2/A3
130B7401
NEMA 1 Conversion Kit, Top, 10 pcs, A3
130B7145
VLT=C2=AE SALT Controller MCO 360
130B5645
Leakage Current Monitor Kit, A2, A3
130B1234
VLT=C2=AE Motion Control MCO 305, coated
130B1264
VLT=C2=AE Extended Relay Card MCB 113, ctd
130B1253
VLT=C2=AE Position Controller MCO 351, ctd
130B1252
VLT=C2=AE Synchronizing Ctrl. MCO 350, ctd
131B0052
FC-302P7K5T5E20H1BGXXXXSXXXXAXBXCXXXXDX
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
