136U9050

Part Number: 136U9050
136U9050
Manufacturer
Danfoss
Part number
136U9050
Category

Product Information

Extended Description

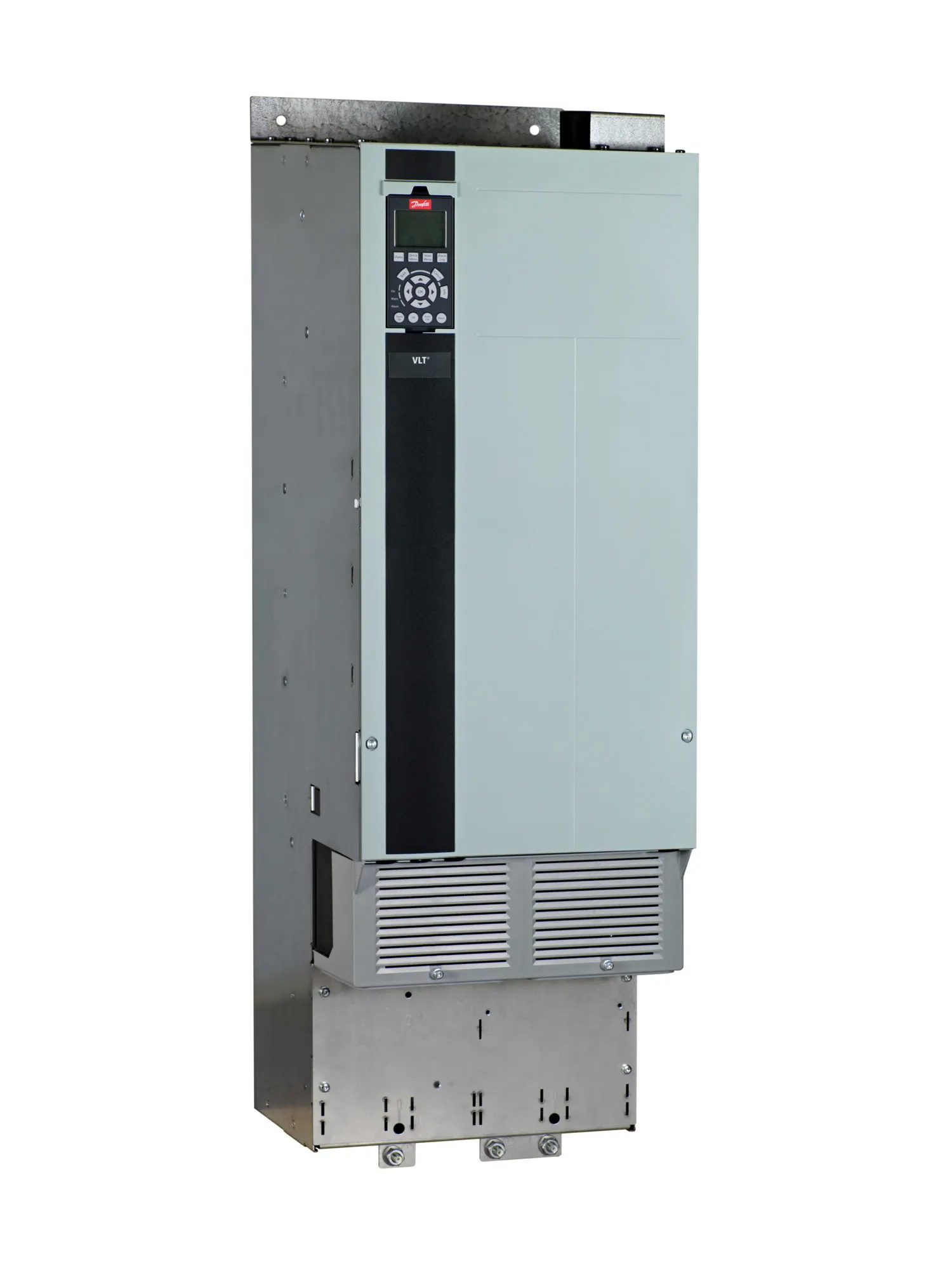

136U9050 Danfoss: Frequency converterFC-103N132T4E20H2XGC7XXSXXXXALBXCXXXXDXVLT=C2=AE Refrigeration Drive FC-103(N132) 132 KW / 200 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI filter Class A2No brake chopperGraphical Loc. Cont. PanelCoated PCB, FuseLatest release std. SW.PROFINET MCA 120, No B OptionNo C1 option, No D optionFrame: D3HOther options according to Model code
Gross weight
62.3 kg
Net weight
62 kg
Volume
0 l
EAN
5714853071852
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Refrigeration Drive
Series
103 : 103
Power Rating
N132 : (N132) 132 KW / 200 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI filter Class A2
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
7 : Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D3H : D3H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-103N132T4E20H2XGC
Typecode Part 2
7XXSXXXXALBXCXXXXDX
Power 110% (NO) [KW]
132
Height w/ Regen/Loadshare [mm]
1004,0
Height [mm]
909,0
Width w/ no C options [mm]
250,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
180
Power Loss NO [W]
2949
Continuous Current (NO) [A]
260
Intermittent Current (NO) [A]
286
Calculated Gross Weight [kg]
62.3
Calculated Net Weight [kg]
62
ECCN EU
X.A.I.003
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-103N132T4E20H2XGC
Modelcode02
7XXSXXXXALBXCXXXXDX
176F3549
Cover DC Link Coil Small Dh Frame
176F3544
DC Link Coil small Dh Frame 140uH
176F3540
Heatsink fan cover Dh Frames
176F3479
Power Terminal Cover IP20 D3h enclosure
176F4709
Repair Kit, NG D-Frame,T4/T5, 90kW-160kW
176F3761
Loadshare Retrofit Kit for D4h Frame
176F3760
Loadshare Retrofit Kit for D3h Frame
176F3331
Cable Gate Drive to Inrush D1h/D3h
176F3328
Cable Power Card to Gate Drive D1h/D3h
176F3326
Cable Power Card to HF/RFI D1h/D3h
176F3627
Cooling Kit, in btm/ out top, 1800, D3h
176F3625
Cooling Kit, in back/ out back, D3h
176F3633
Cooling Kit, in back/out back, D3h
176F3629
Cooling Kit, in btm/out top, 2000mm, D3h
176F3409
Adapter Plate, D1h/D3h
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1170
LCP Panel Mounting Kit
130B1212
VLT=C2=AE General Purpose I/O MCB 101, ctd
130B1210
VLT=C2=AE Relay Option MCB 105, coated
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
130R1056
DrivePro ExWarr Onsite PG06 60 Months
